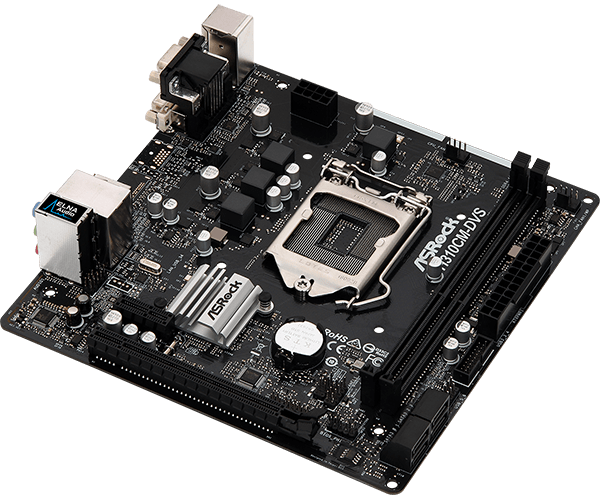

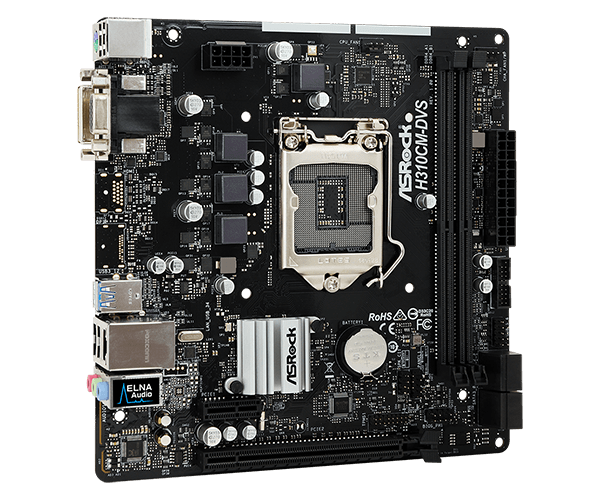

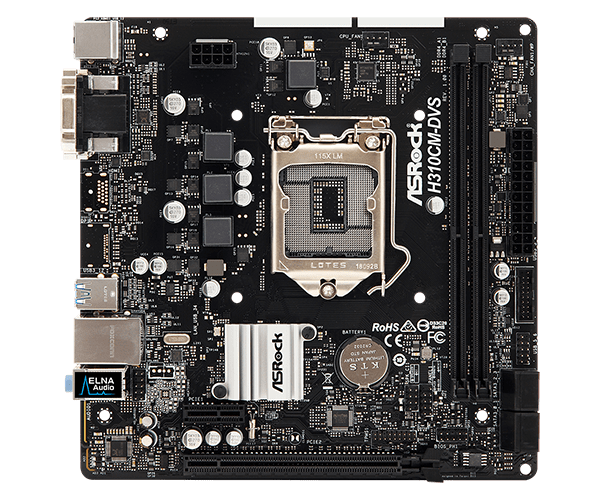

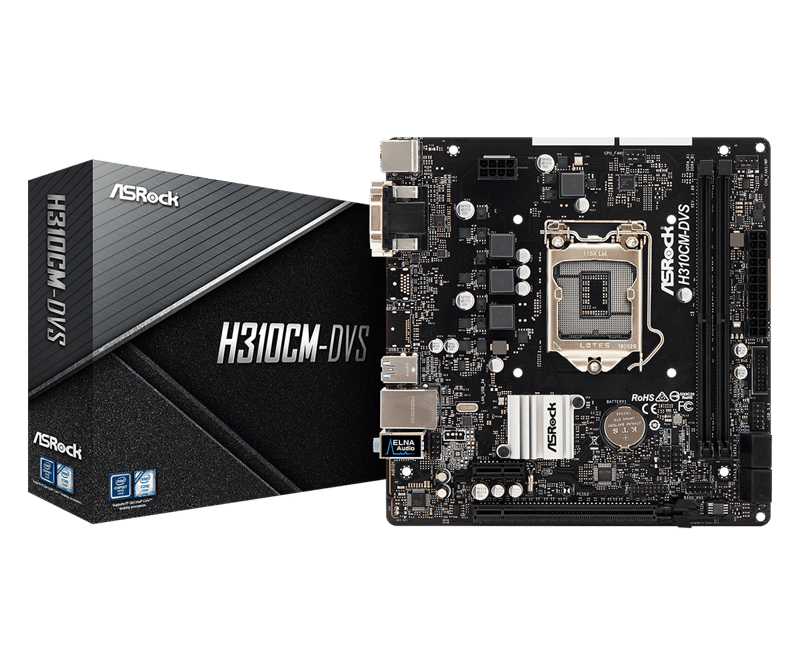

ASRock H310CM-DVS LGA 1151 Micro-ATX Motherboard

The ASRock H310CM-DVS arrives in a compact 19.1 × 18.8cm Micro-ATX frame, aimed at builders who want a simple LGA 1151 office system without extra cost. It runs the Intel H310 chipset with a four-phase power design, built on a high-density glass fabric PCB with a Sapphire Black finish.

Key Highlights:

• 9th and 8th Gen Support: The LGA 1151 socket accepts Intel Core processors up to 95W, keeping CPU choices flexible for a budget build.
• Dual-Channel DDR4: Two slots hold up to 32GB at 2666, 2400, and 2133MHz, with XMP 2.0 support and 15μ gold contacts in the DIMM slots.

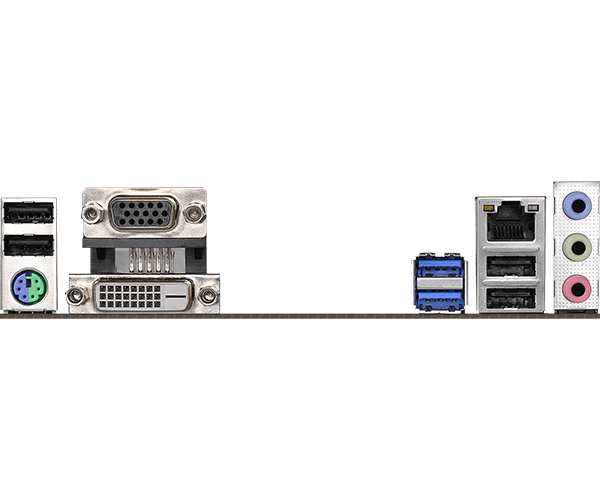

• Dual Display Outputs: DVI-D and D-Sub ports run on independent controllers at up to 1920×1200 @ 60Hz, with HDCP 2.2 over DVI-D.
• Four SATA3 Connectors: 6.0Gb/s ports support NCQ, AHCI, and Hot Plug for storage drives.
• PCIe 3.0 x16 Slot: Runs in full x16 mode, and the PCIe 2.0 x1 slot can host an NVMe SSD as a boot drive.
• Protected Gigabit LAN: A Realtek RTL8111H controller supports Wake-On-LAN, Energy Efficient Ethernet 802.3az, and lightning/ESD protection.
• 7.1-Channel Audio: Realtek ALC887/897 codec with surge protection and Line in, Front Speaker, and Microphone jacks on the rear panel.
• Full Spike Protection: ASRock's surge protection covers every USB, audio, and LAN port on the board.
• Smart Fan Control: The CPU fan header handles up to 1A, and the chassis/water pump header handles up to 2A with auto-detection for 3-pin or 4-pin fans.
• Integrated Update Tools: ASRock Instant Flash and Internet Flash handle BIOS updates, with a Full HD UEFI and a simplified EZ Mode interface.
