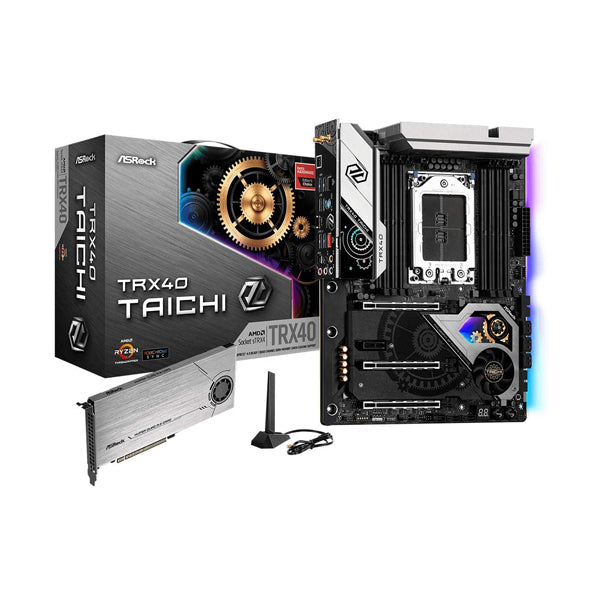

ASRock Taichi TRX40 sTRX4 ATX DDR4 Motherboard
By
1,070,000IQD
In Stock
The ASRock Taichi TRX40 ATX motherboard features the sTRX4 socket and AMD TRX40 chipset for high-performance workstation builds. Equipped with 8 DDR4 memory slots supporting up to 256GB, built-in Wi-Fi, 8 SATA ports, and 2 M.2 slots, it delivers stable power and expansive connectivity.
Warranty, Exchange & Return Policy
Specifications
SocketStrx4
ChipsetAMD TRX40
M.2 Slots2
SATA Ports8
Form FactorAtx
Memory TypeDdr4
Memory Slots8
WiFiYes
Max Memory (GB)256 GB
Details
• Model : ASRock TRX40 Taichi – ATX Motherboard • Chipset : AMD TRX40 • CPU Socket : sTRX4 • CPU Support : AMD Ryzen Threadripper 3rd Gen • Memory • Type : DDR4 • Capacity : Up to 256GB • Slots : 8 × DIMM • Speed : Up to 4666+ MHz (OC) • ECC Support : ECC & non-ECC, un-buffered • Expansion Slots • 4 × PCIe 4.0 x16 • 1 × PCIe 4.0 x1 • Storage • 3 × Hyper M.2 (PCIe Gen4 x4) • 8 × SATA 6Gb/s **• 1 × U.2 Connector • Graphics Support **• Multi-GPU: NVIDIA SLI, AMD CrossFireX • Audio • Codec : Realtek ALC1220 • Channels : 7.1 HD Audio • Amplifier : TI NE5532 Premium Headset Amplifier • USB Ports • Rear I/O : – 2 × USB 3.2 Gen2 Type-A – 1 × USB 3.2 Gen2 Type-C – 6 × USB 3.2 Gen1 • Internal Headers : – USB 3.2 Gen1 – USB 2.0 • LAN • Controllers : Intel I211AT + Realtek RTL8125AG • Speed : Dual Gigabit + 2.5GbE • Wireless • Wi-Fi 6 (802.11ax) • Bluetooth 5.0 • Cooling & Power • VRM Design : 16 Power Phase • Fan Headers : 8 × PWM/DC • Features • Polychrome RGB • Dr. MOS • ASRock Steel Slot • BIOS Flashback • Hyper BCLK Engine III • Form Factor : ATX • Dimensions : 305 × 244 mm • OS Support : Windows 10 64-bit
