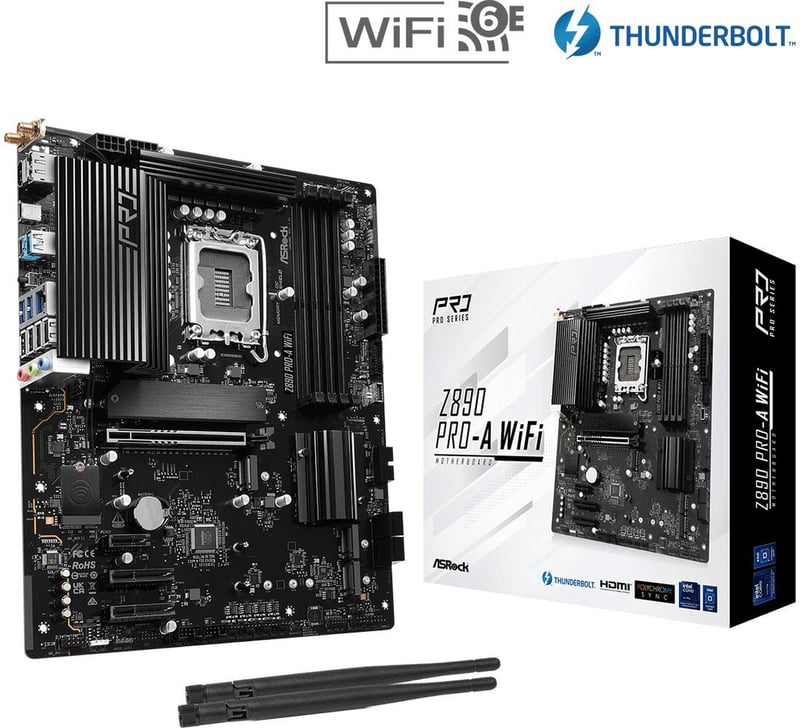

ASRock Z890 Pro-A LGA 1851 ATX Motherboard DDR5 PCIe 5.0 Thunderbolt 4
The ASRock Z890 Pro-A ATX motherboard is built for Intel Core Ultra Series 2 processors on LGA 1851, offering a solid foundation for professional and office builds. It features a 16+1+1+1+1 power phase design with Dr. MOS and 1000uF capacitors, supporting DDR5 memory up to 9066+ MT/s (OC) with a maximum capacity of 256GB. It includes a PCIe 5.0 x16 slot, four M.2 slots, a Thunderbolt 4 port, Dragon 2.5G LAN, and Realtek ALC897 audio with Nahimic.
Warranty, Exchange & Return Policy
Specifications
No specifications available
Details

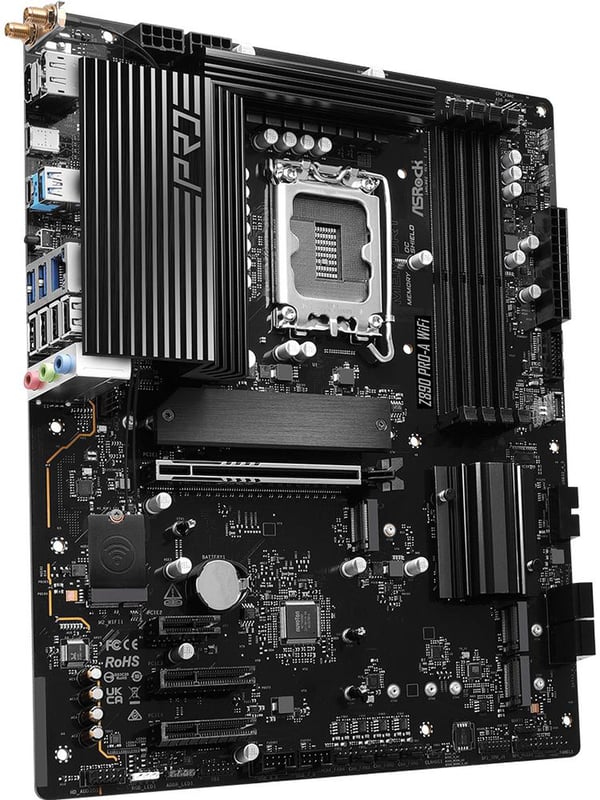

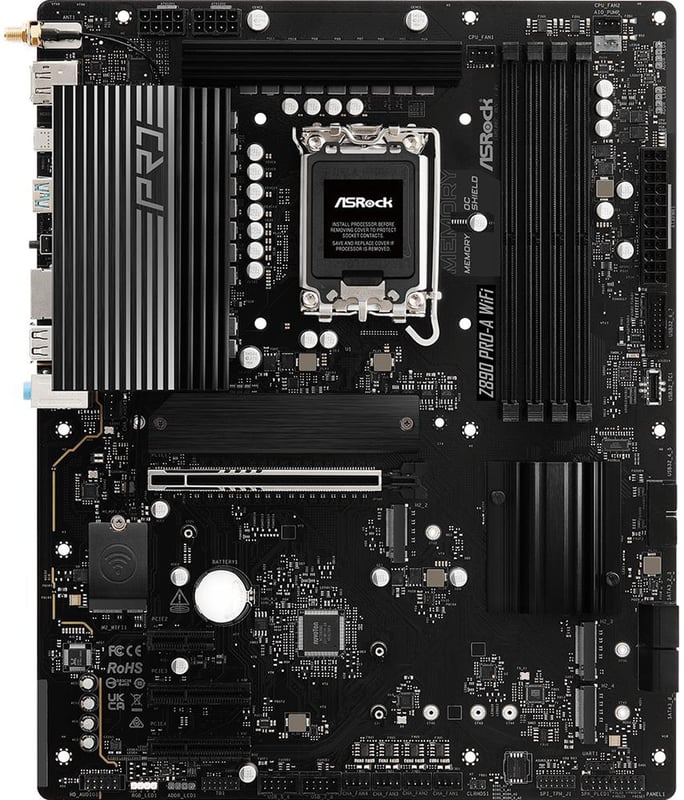

The ASRock Z890 Pro-A ATX motherboard is the ideal foundation for a professional build based on Intel Core Ultra Series 2 processors on LGA 1851 with RL-ILM technology. Part of the Pro-A series designed for enhanced stability, durability, and efficiency, it features a 16+1+1+1+1 power phase design with Dr. MOS and 1000uF durable capacitors on a 2oz copper PCB. It supports DDR5 memory up to 9066+ MT/s (OC) across 4 DIMM slots with a maximum capacity of 256GB, with Intel XMP 3.0x support and the exclusive Memory OC Shield to reduce electromagnetic interference.
Key Highlights:
- LGA 1851 Socket with Intel Z890 Chipset: Supports Intel Core Ultra Series 2 processors with Turbo Boost Max 3.0, Thermal Velocity Boost, Adaptive Boost, and an integrated NPU for dedicated AI acceleration.
- 16+1+1+1+1 Power Phase with Dr. MOS: Delivers stable, clean power to the CPU even under overclocking loads, with enlarged aluminium heatsinks and high-density power connectors.
- DDR5 Memory up to 9066+ MT/s (OC): Four DIMM slots with 256GB maximum capacity, supporting Intel XMP 3.0x and the exclusive Memory OC Shield for enhanced high-frequency stability.
- PCIe 5.0 x16 Slot: Offering up to 128GB/s bandwidth, with support for x8/x8 or x8/x4/x4 splitting via a PCIe riser card.
- Four M.2 Slots: One Blazing M.2 (PCIe Gen5 x4) and three Hyper M.2 (PCIe Gen4 x4), with heatsinks and tool-free mounting.
- Thunderbolt 4 Port: Up to 40Gb/s transfer speed, supporting 8K@60Hz or 5K@120Hz displays and daisy-chaining of peripherals.
- Dragon 2.5G LAN: 2.5 Gigabit Ethernet with Dragon 2.5G LAN Software for intelligent bandwidth control and application prioritization.
- Realtek ALC897 7.1 Audio with Nahimic: Delivers high-definition immersive audio with content protection and impedance sensing on the rear audio output.
- EZ DIY Design and Intelligent Cooling: BIOS Flashback button, Post Status Checker for diagnostics, PWM/DC fan support with multiple thermal sensors, and a front USB-C header at 20Gb/s.
