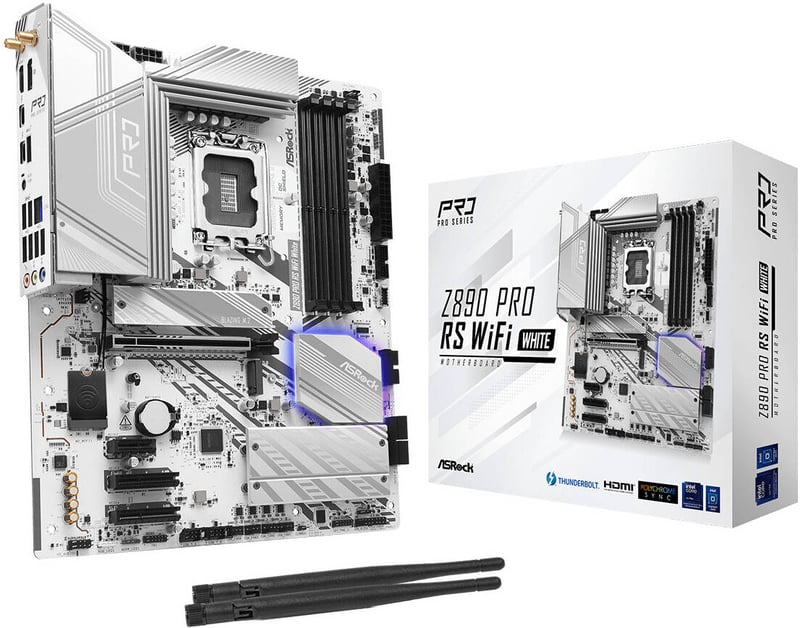

ASRock Z890 Pro RS WiFi White LGA 1851 ATX Motherboard DDR5 PCIe 5.0 Thunderbolt 4
The ASRock Z890 Pro RS WiFi White ATX motherboard is built for Intel Core Ultra Series 2 processors on LGA 1851, balancing high performance with a clean white aesthetic. It features a 16+1+1+1+1 power phase design with Dr. MOS, 1000uF capacitors, and a 2oz copper PCB, supporting DDR5 memory up to 9066+ MT/s (OC) with a maximum capacity of 256GB. It includes a PCIe 5.0 x16 slot, four M.2 slots, dual Thunderbolt 4 ports, Dragon 2.5G LAN, Wi-Fi 6E, and Nahimic audio.
Warranty, Exchange & Return Policy
Specifications
No specifications available
Details

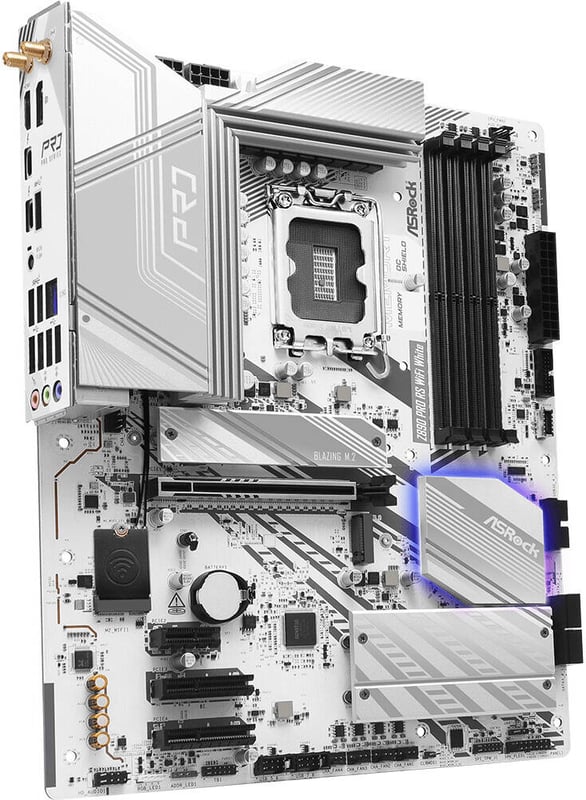

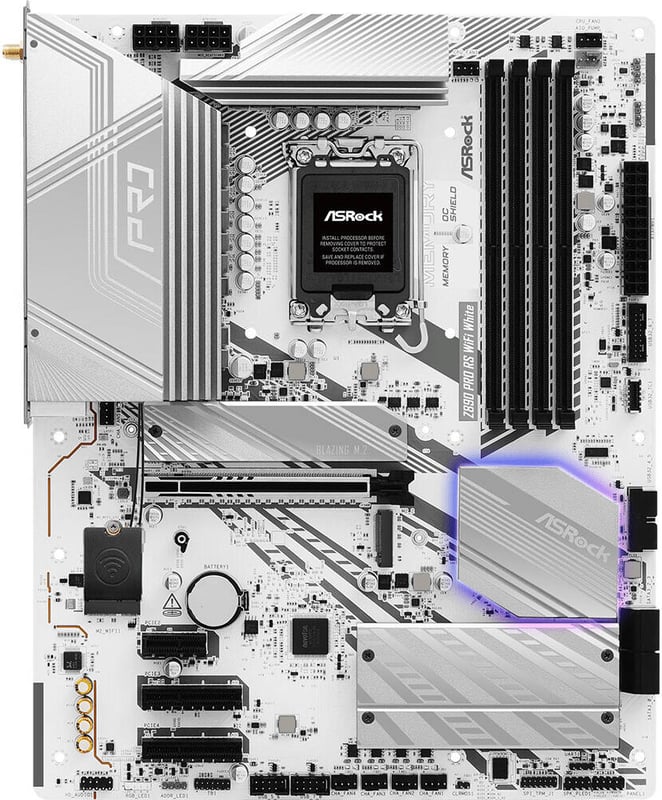

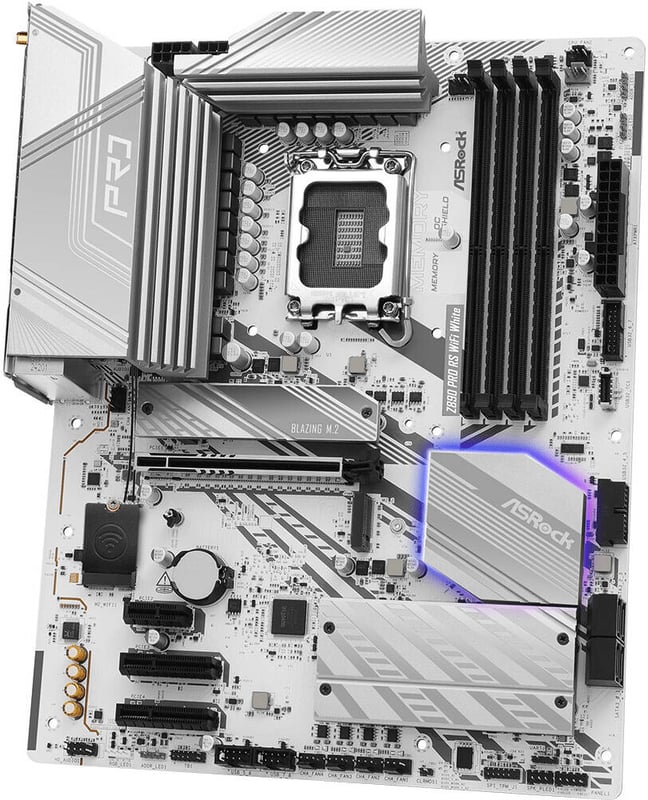

The ASRock Z890 Pro RS WiFi White ATX motherboard is the ideal choice for building a professional system that combines high performance with a clean aesthetic. Part of the Race Sport (RS) Edition lineup, an evolution of the popular PRO series, it features a coordinated white colour scheme that gives builds a modern, futuristic look. It runs on the LGA 1851 socket with the Intel Z890 chipset to support Intel Core Ultra Series 2 processors, with Turbo Boost Max 3.0, Thermal Velocity Boost, Adaptive Boost, and an integrated NPU for AI acceleration.
Key Highlights:
- LGA 1851 Socket with Intel Z890 Chipset: Supports Intel Core Ultra Series 2 processors with Intel 200S Boost support via BIOS update for improved performance.
- 16+1+1+1+1 Power Phase with Dr. MOS: Delivers stable, clean power to the CPU even under overclocking loads, with 1000uF durable capacitors and a 2oz copper PCB for better heat dissipation.
- DDR5 Memory up to 9066+ MT/s (OC): Four DIMM slots with 256GB maximum capacity, supporting Intel XMP 3.0x and the exclusive Memory OC Shield to reduce electromagnetic interference and enhance high-frequency stability.
- PCIe 5.0 x16 Slot: Offering up to 128GB/s bandwidth, with support for x8/x8 or x8/x4/x4 splitting to distribute bandwidth across graphics cards and other devices.
- Four M.2 Slots: One Blazing M.2 (PCIe Gen5 x4) at up to 128Gb/s and three Hyper M.2 (PCIe Gen4 x4), with enlarged heatsinks and a bottom heatsink for SSD cooling.

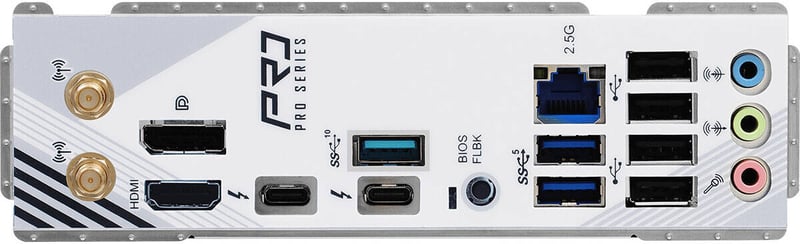

- Dual Thunderbolt 4 Ports: Up to 40Gb/s transfer speed per port, supporting 8K@60Hz or 5K@120Hz displays and daisy-chaining of peripherals.
- Dragon 2.5G LAN and Wi-Fi 6E: With ASRock WiFi 2.4/5/6GHz antenna, delivering 2.5Gbps wired networking and 6GHz wireless connectivity with Bluetooth 5.3 support.
- Realtek ALC897 7.1 Audio with Nahimic: Delivers high-definition immersive audio with Sound Tracker, Static Noise Suppression, and Echo Cancellation for enhanced gaming and chat experiences.
- EZ DIY Design and Intelligent Cooling: BIOS Flashback button, Post Status Checker for diagnostics, PWM/DC fan support with multiple thermal sensors, a front USB-C header at 20Gb/s, and a coordinated white design to match other components.
No specifications available
