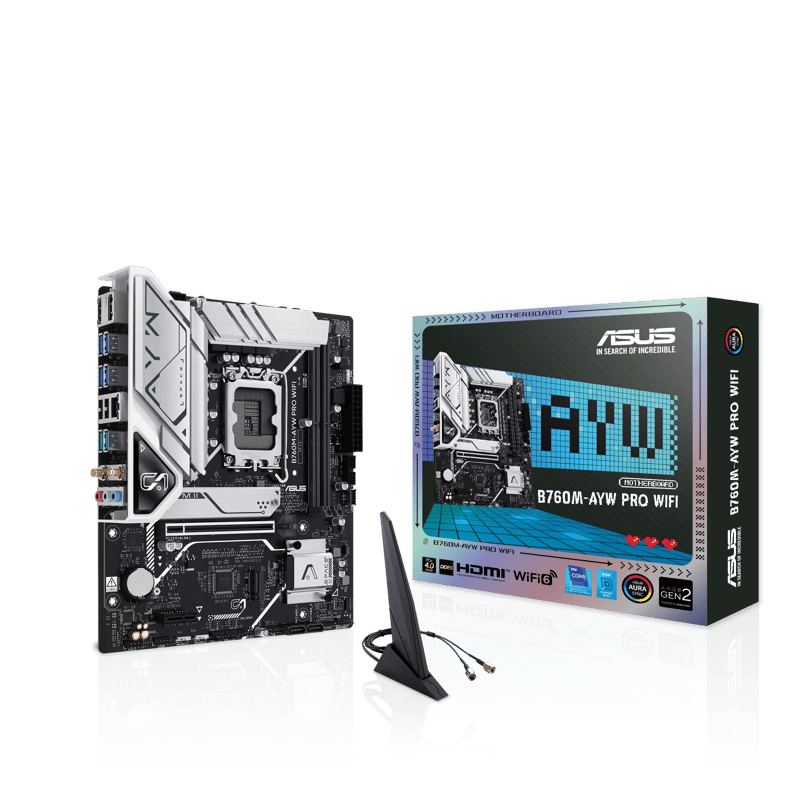

ASUS B760M-AYW PRO WIFI LGA 1700 Micro-ATX Motherboard DDR5 Wi-Fi 6
The ASUS B760M-AYW PRO WIFI Micro-ATX motherboard is built for Intel Core 14th, 13th, and 12th Gen processors on LGA 1700, offering a practical foundation for office and home builds with integrated wireless connectivity. It supports DDR5 memory up to 8000+ MT/s (OC) with a maximum capacity of 96GB across two DIMM slots, and includes a PCIe 4.0 x16 slot, two M.2 slots, two SATA ports, Realtek 2.5Gb Ethernet, Wi-Fi 6, and DisplayPort and HDMI outputs.
Warranty, Exchange & Return Policy
Specifications
Details

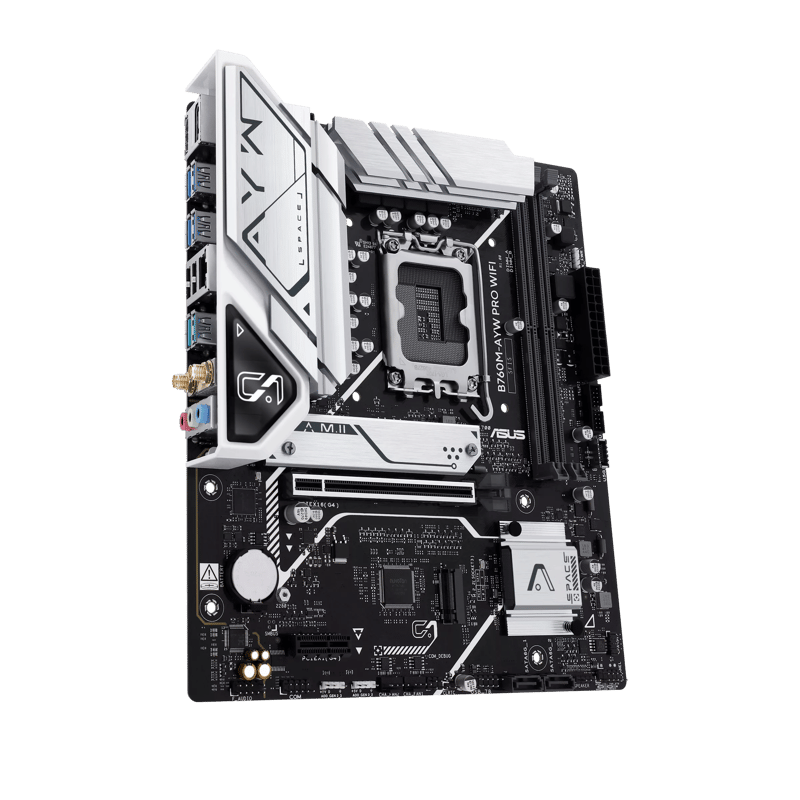

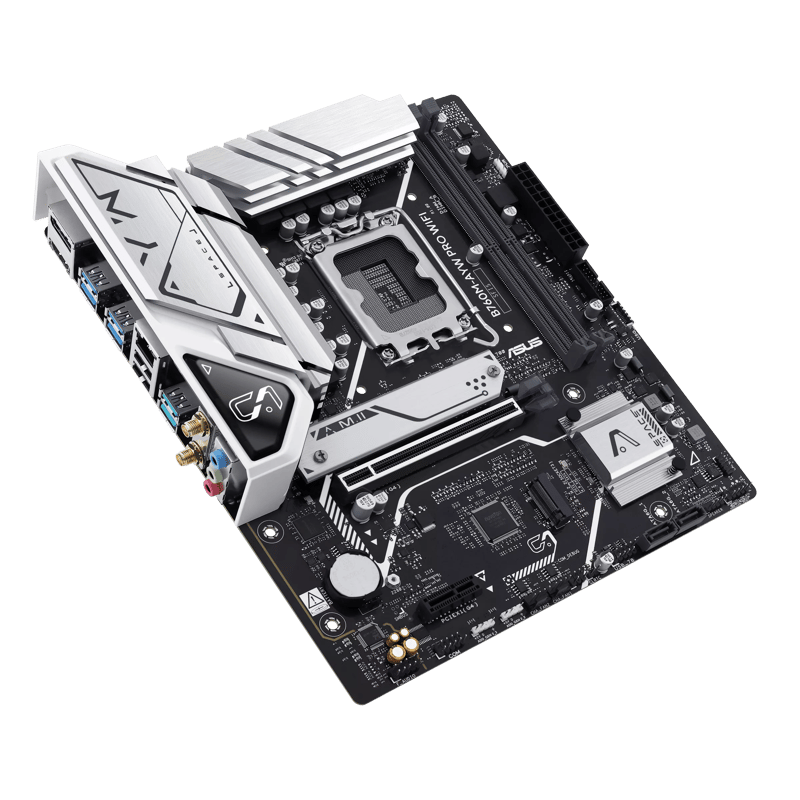

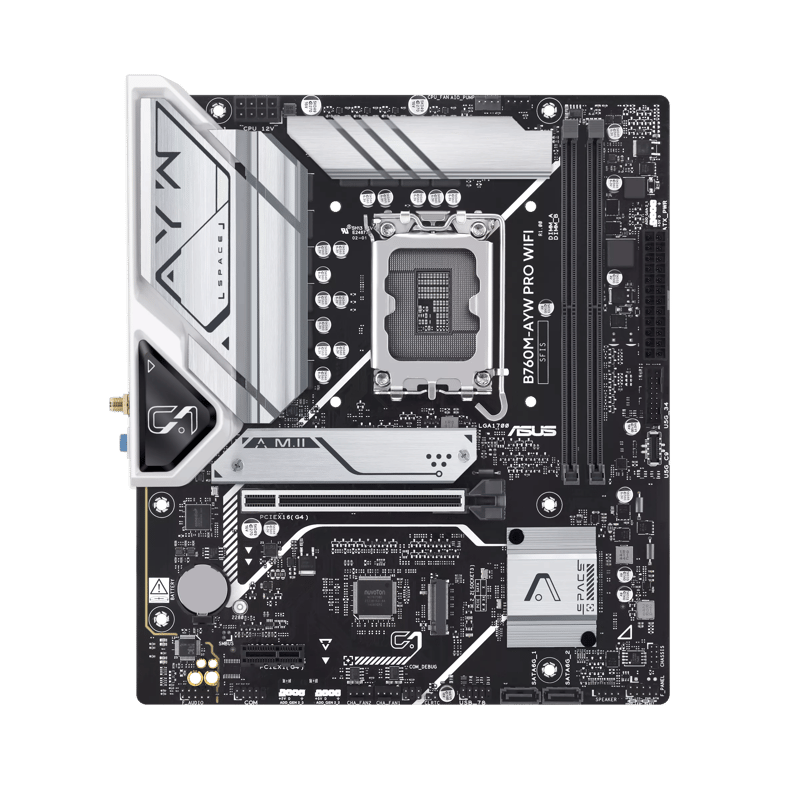

The ASUS B760M-AYW PRO WIFI Micro-ATX motherboard is the practical foundation for an office or home build based on Intel Core 14th, 13th, and 12th Gen processors on LGA 1700. It combines a compact design with integrated Wi-Fi 6 wireless connectivity, supporting DDR5 memory up to 8000+ MT/s (OC) across two DIMM slots with a maximum capacity of 96GB. It features exclusive ASUS technologies including AEMP II and OptiMem II for enhanced memory performance and stability, plus comprehensive ASUS 5X PROTECTION III.
Key Highlights:
- LGA 1700 Socket with Intel B760 Chipset: Supports Intel Core 14th, 13th, and 12th Gen processors plus Pentium Gold and Celeron, with Intel Turbo Boost 2.0 and Turbo Boost Max 3.0 support.
- DDR5 Memory up to 8000+ MT/s (OC): Two DIMM slots with 96GB maximum capacity, supporting Intel XMP, AEMP II, and On-Die ECC for enhanced performance and stability.
- PCIe 4.0 x16 Slot: At sufficient bandwidth for a modern graphics card, with reinforced SafeSlot Core+ armor, plus a PCIe 4.0 x1 slot for expansion.
- Dual PCIe 4.0 x4 M.2 Slots: Supporting 2280 sizes at speeds up to 64Gbps, with an integrated M.2 heatsink and M.2 Q-Latch for tool-free installation.
- Two SATA 6Gb/s Ports: Provide extra storage capacity for hard drives and traditional SSDs, with RAID 0/1 support for SATA drives via Intel Rapid Storage Technology.
- Realtek 2.5Gb Ethernet with LANGuard: Delivers high-speed wired networking with hardware-level protection for improved throughput and network stability.
- Wi-Fi 6 and Bluetooth 5.3: Supports 2.4/5 GHz bands at 802.11ax speeds, optimized for efficient operation in crowded networks.
- Realtek 7.1-Channel Audio: With audio shielding, dedicated audio PCB layers, and premium audio capacitors, supporting 24-bit/192kHz playback.

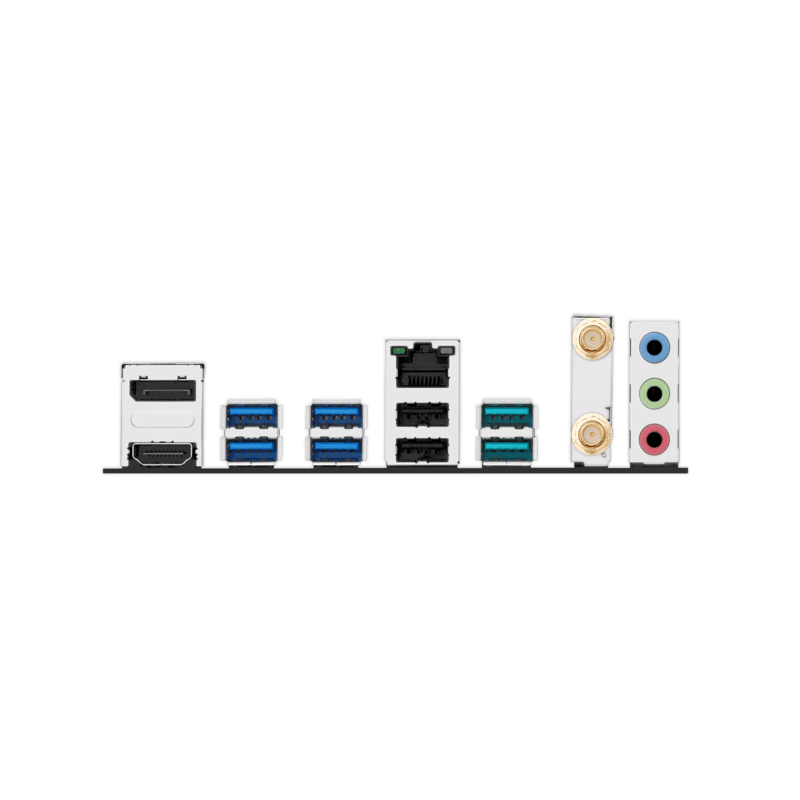

- Comprehensive USB Ports: Two rear USB 10Gbps Type-A, four rear USB 5Gbps Type-A, two rear USB 2.0, plus a front USB 5Gbps Type-C connector, two front USB 5Gbps ports, and two front USB 2.0 ports.
- EZ DIY Design and Comprehensive Cooling: VRM and M.2 heatsinks, one CPU Fan header, an AIO Pump header, and two Chassis Fan headers, Q-LED Core diagnostics, M.2 Q-Latch, Q-DIMM, and Q-Slot, and Aura Sync support via 3 Addressable Gen 2 headers, with a COM port for industrial applications.
