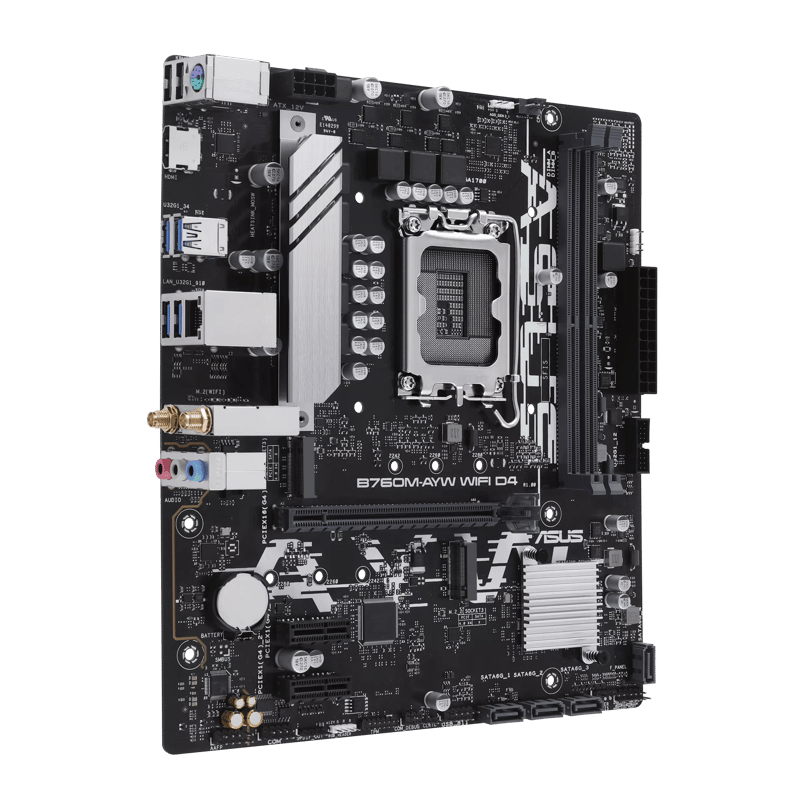

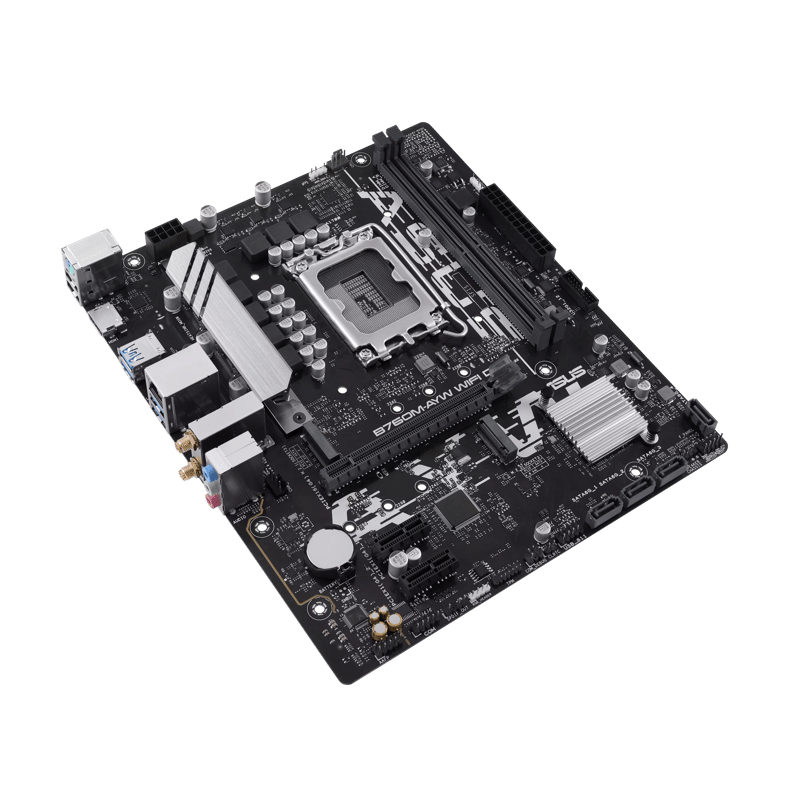

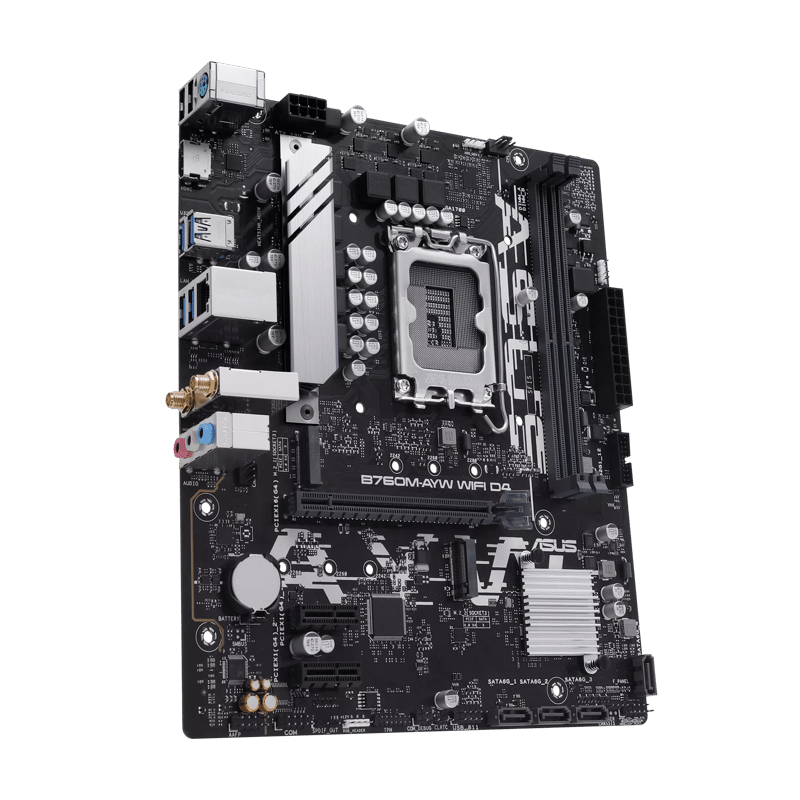

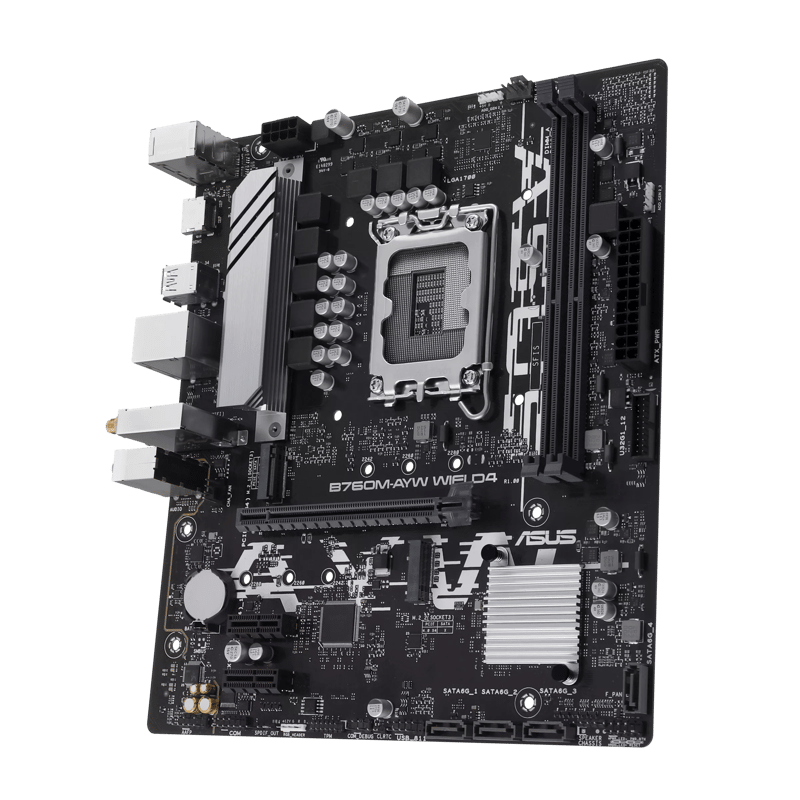

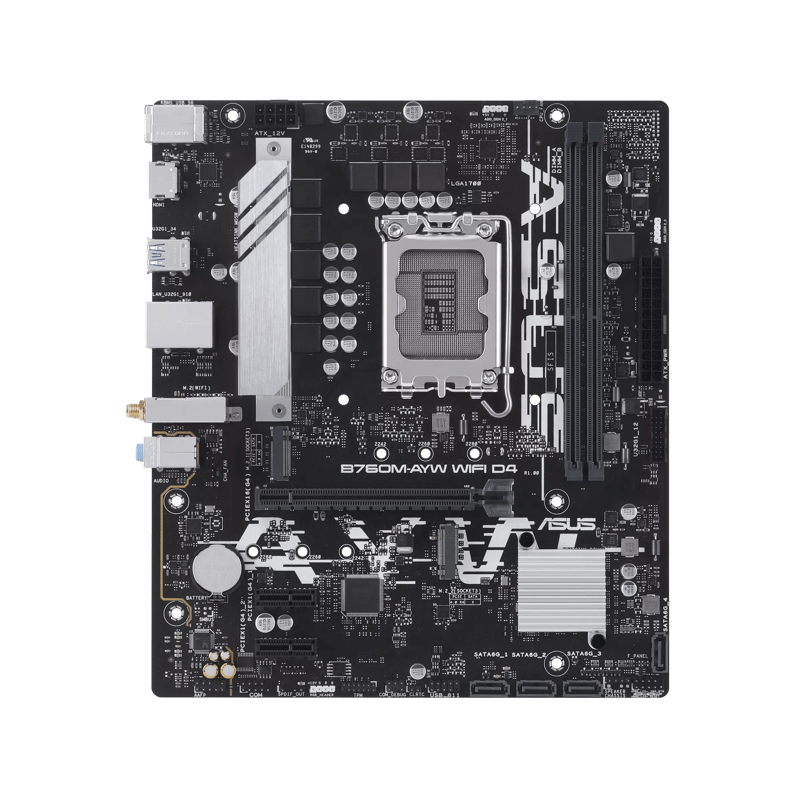

ASUS B760M-AYW WIFI D4 LGA 1700 Micro-ATX Motherboard DDR4 Wi-Fi 6
The ASUS B760M-AYW WIFI D4 Micro-ATX motherboard is built for Intel Core 14th, 13th, and 12th Gen processors on LGA 1700, offering a practical and reliable foundation for office and home builds with cost-effective DDR4 memory and integrated wireless connectivity. It supports DDR4 memory up to 5333 MT/s (OC) with a maximum capacity of 64GB across two DIMM slots, and includes a PCIe 4.0 x16 slot, two M.2 slots, four SATA ports, Realtek 2.5Gb Ethernet, Wi-Fi 6, and Realtek 7.1-channel audio.
Warranty, Exchange & Return Policy
Specifications
Details
The ASUS B760M-AYW WIFI D4 Micro-ATX motherboard is the practical foundation for an office or home build based on Intel Core 14th, 13th, and 12th Gen processors on LGA 1700. It combines a compact design with integrated Wi-Fi 6 wireless connectivity, supporting cost-effective DDR4 memory up to 5333 MT/s (OC) across two DIMM slots with a maximum capacity of 64GB, making it a suitable choice for those upgrading from a previous build with existing DDR4 memory. It features ASUS 5X PROTECTION III including DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, and a stainless-steel back I/O panel.
Key Highlights:
- LGA 1700 Socket with Intel B760 Chipset: Supports Intel Core 14th, 13th, and 12th Gen processors plus Pentium Gold and Celeron, with Intel Turbo Boost 2.0 and Turbo Boost Max 3.0 support.
- DDR4 Memory up to 5333 MT/s (OC): Two DIMM slots with 64GB maximum capacity, Intel XMP and dual-channel mode support, enabling the use of cost-effective DDR4 memory.
- PCIe 4.0 x16 Slot: At sufficient bandwidth for a modern graphics card, with reinforced SafeSlot Core armor, plus two PCIe 4.0 x1 slots for expansion.
- Dual PCIe 4.0 x4 M.2 Slots: At speeds up to 64Gbps, supporting 2242/2260/2280 sizes, with an integrated M.2 heatsink to reduce thermal throttling.
- 4 × SATA 6Gb/s Ports: Provide extra storage capacity for hard drives and traditional SSDs, with RAID 0/1/5/10 support for SATA drives via Intel Rapid Storage Technology.
- Realtek 2.5Gb Ethernet with LANGuard: Delivers high-speed wired networking with hardware-level protection for improved throughput and network stability.
- Wi-Fi 6 and Bluetooth 5.2: Supports 2.4/5 GHz bands at 802.11ax speeds, optimized for efficient operation in crowded networks.
- Realtek 7.1-Channel Audio: With audio shielding, dedicated audio PCB layers, and premium audio capacitors, supporting 24-bit/192kHz playback.

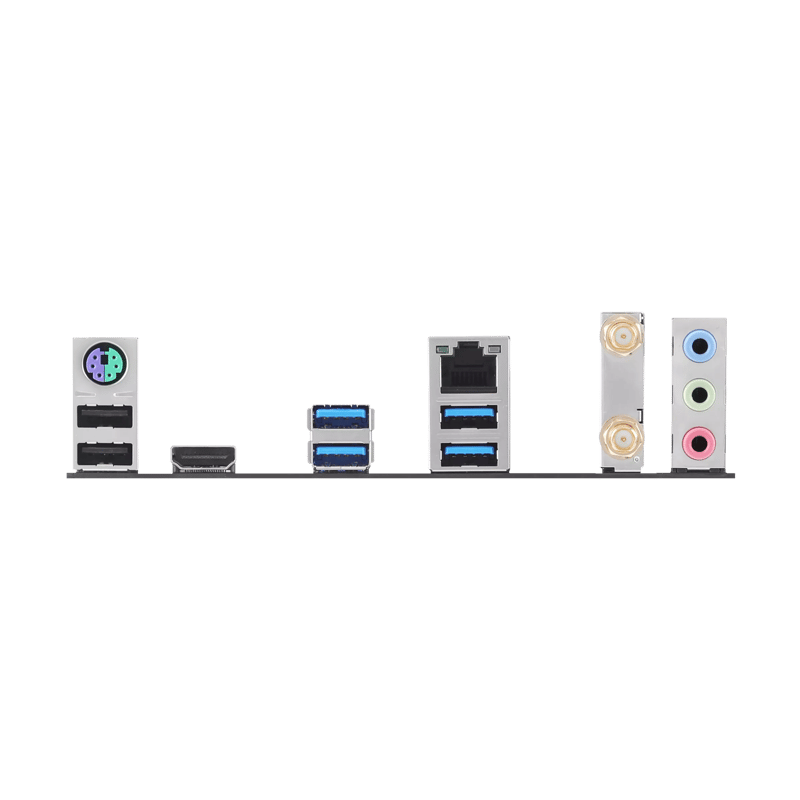

- Comprehensive USB Ports: 4 × rear USB 3.2 Gen 1 Type-A, 2 × rear USB 2.0, with a front USB 3.2 Gen 1 header supporting two additional ports, a USB 2.0 header supporting two additional ports, and a PS/2 keyboard/mouse combo port.
- EZ DIY Design and Comprehensive Cooling: VRM heatsink, one CPU Fan header and one Chassis Fan header, Q-LED Core diagnostics, Q-DIMM, and Q-Slot, and Aura Sync support via one Aura RGB header and two Addressable Gen 2 headers, with a COM port for industrial applications and an SPI TPM header.
