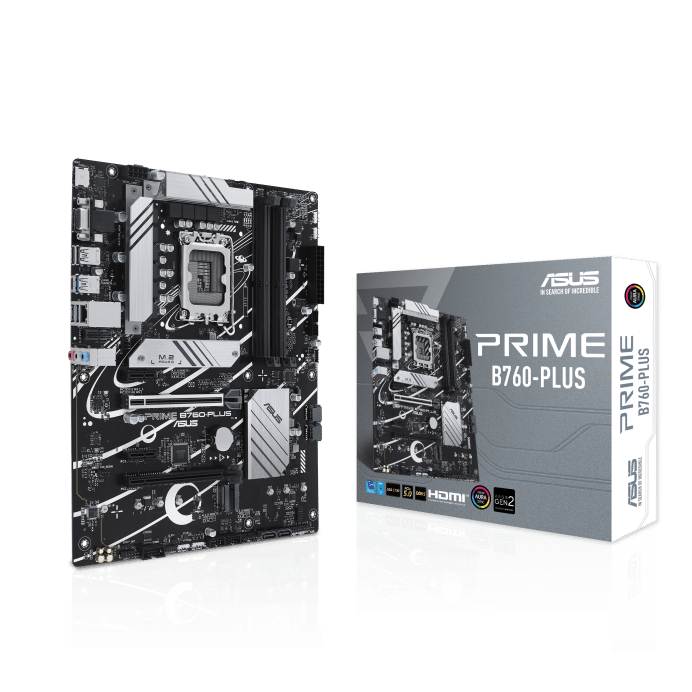

ASUS PRIME B760-PLUS LGA 1700 ATX Motherboard DDR5 PCIe 5.0
The ASUS PRIME B760-PLUS ATX motherboard is built for Intel Core 14th, 13th, and 12th Gen processors on LGA 1700, offering a practical and reliable foundation for office and mainstream builds. It supports DDR5 memory up to 7200+ MT/s (OC) with a maximum capacity of 192GB across four DIMM slots, and includes a PCIe 5.0 x16 slot, three M.2 slots, four SATA ports, Realtek 2.5Gb Ethernet, HDMI, DisplayPort, and VGA outputs, and Realtek 7.1-channel audio.
Warranty, Exchange & Return Policy
Specifications
Details
The ASUS PRIME B760-PLUS ATX motherboard is the practical foundation for an office or mid-range workstation build based on Intel Core 14th, 13th, and 12th Gen processors on LGA 1700. Part of the PRIME series designed for stability and efficiency, it offers full DDR5 support up to 7200+ MT/s (OC) across four DIMM slots with a maximum capacity of 192GB, with OptiMem II technology for improved memory stability and reduced latency. It features comprehensive ASUS 5X PROTECTION III, VRM and M.2 heatsinks for stable cooling, and a PCIe 5.0 x16 slot ready for modern graphics cards.
Key Highlights:
- LGA 1700 Socket with Intel B760 Chipset: Supports Intel Core 14th, 13th, and 12th Gen processors plus Pentium Gold and Celeron, with Intel Turbo Boost 2.0 and Turbo Boost Max 3.0 support.
- DDR5 Memory up to 7200+ MT/s (OC): Four DIMM slots with 192GB maximum capacity, supporting Intel XMP, OptiMem II, and On-Die ECC for enhanced performance and stability.
- PCIe 5.0 x16 Slot: At double bandwidth for graphics cards, with reinforced SafeSlot Core+ armor, plus a PCIe 4.0 x16 slot (x4 mode) and two PCIe 3.0 x1 slots for expansion.
- Three PCIe 4.0 M.2 Slots: Two at x4 speed (64Gbps) and one at x2 speed (32Gbps), supporting 2242/2260/2280/22110 sizes, with an integrated M.2 heatsink for SSD cooling.
- 4 × SATA 6Gb/s Ports: Provide extra storage capacity for hard drives and traditional SSDs, with RAID 0/1/5/10 support for SATA drives via Intel Rapid Storage Technology.
- Realtek 2.5Gb Ethernet with LANGuard: Delivers high-speed wired networking with hardware-level protection for improved throughput and network stability.
- Vertical M.2 Slot (Key E) for Wi-Fi: Allows installation of a separate Wi-Fi 6/6E module (sold separately) to add wireless connectivity as needed.
- Realtek 7.1-Channel Audio: With audio shielding, dedicated audio PCB layers, and premium audio capacitors, supporting 24-bit/192kHz playback.
- Comprehensive USB Ports: Rear USB 3.2 Gen 2x2 Type-C at 20Gbps, two USB 3.2 Gen 2 Type-A, one USB 3.2 Gen 1 Type-A, two USB 2.0, plus a front USB 3.2 Gen 1 Type-C connector, a USB 3.2 Gen 1 header supporting two additional ports, and two USB 2.0 headers supporting four additional ports.
- EZ DIY Design and Comprehensive Cooling: VRM and M.2 heatsinks, one CPU Fan header, an AIO Pump header, and three Chassis Fan headers, Q-LED Core diagnostics, Q-DIMM, and Q-Slot, an optional Thunderbolt (USB4) header, and Aura Sync support via one Aura RGB header and three Addressable Gen 2 headers, with a COM port for industrial applications and an SPI TPM header.
