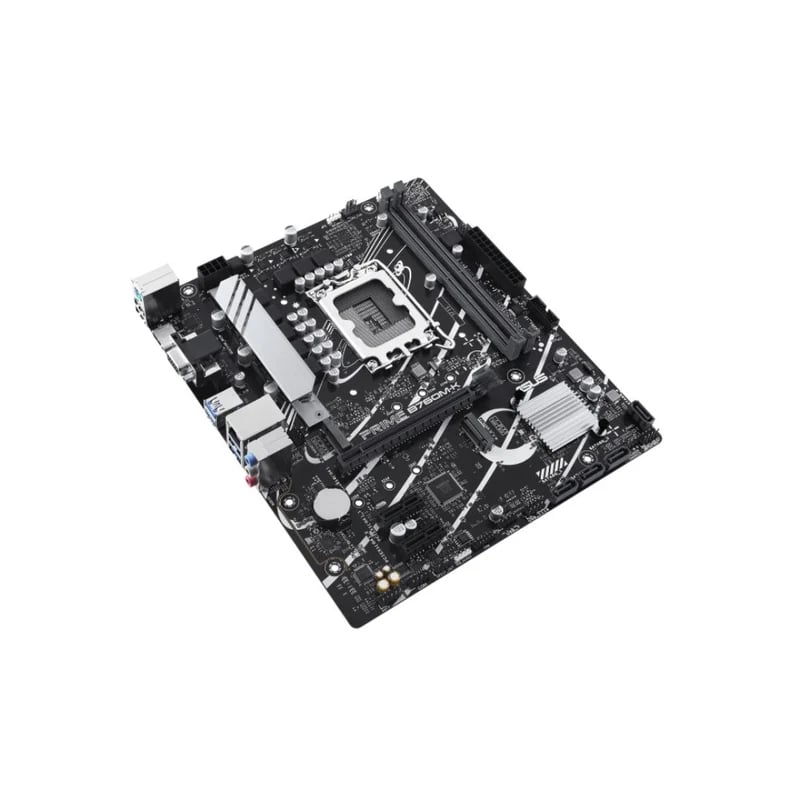

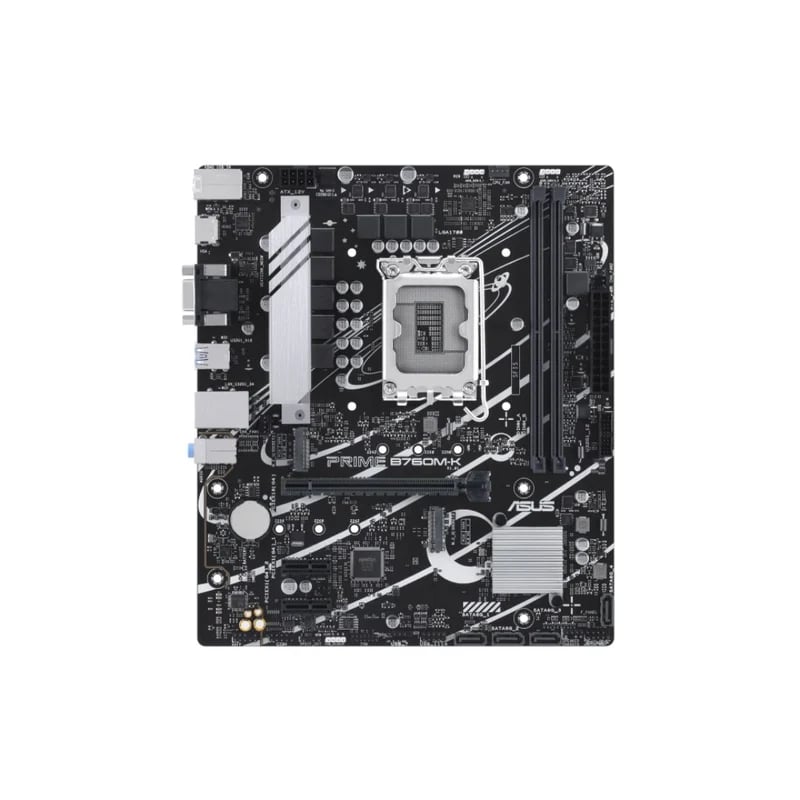

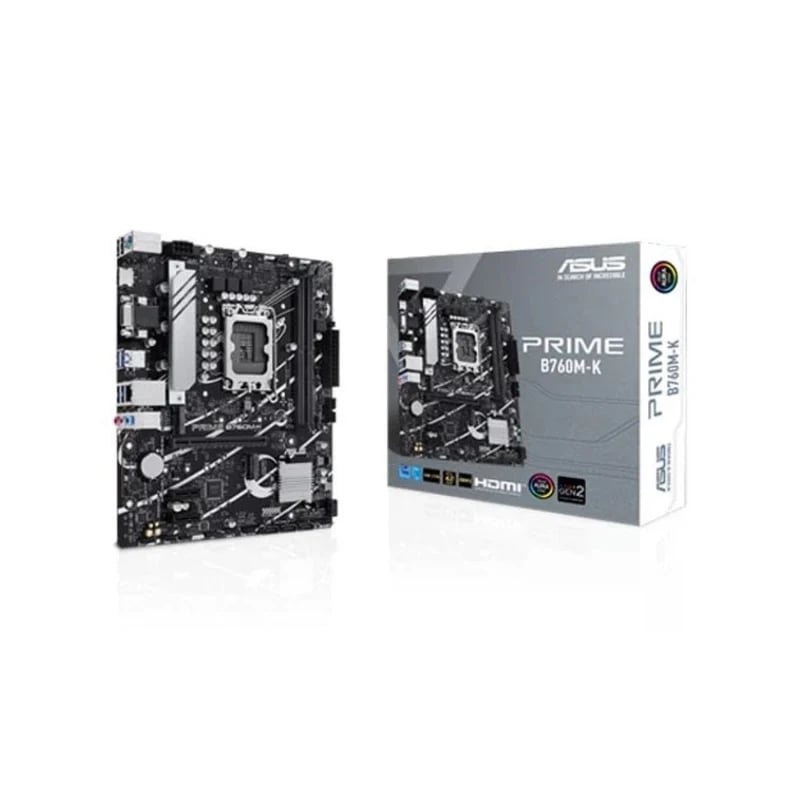

ASUS PRIME B760M-K LGA 1700 Micro-ATX Motherboard DDR5 PCIe 4.0
The ASUS PRIME B760M-K Micro-ATX motherboard is built for Intel Core 14th, 13th, and 12th Gen processors on LGA 1700, offering a practical and reliable foundation for office and home builds. It supports DDR5 memory up to 8000 MT/s (OC) with a maximum capacity of 96GB across two DIMM slots, and includes a PCIe 4.0 x16 slot, two M.2 slots, four SATA ports, Realtek 2.5Gb Ethernet, and VGA and HDMI outputs for multi-display setups.
Warranty, Exchange & Return Policy
Specifications
Details
The ASUS PRIME B760M-K Micro-ATX motherboard is the practical foundation for an office or home build based on Intel Core 14th, 13th, and 12th Gen processors on LGA 1700. Part of the PRIME series designed for stability and efficiency, it offers full DDR5 support up to 8000 MT/s (OC) across two DIMM slots with a maximum capacity of 96GB, with ASUS Enhanced Memory Profile (AEMP) technology for improved memory performance. It features comprehensive cooling including a VRM heatsink and PCH heatsink, ensuring stable operation even under demanding daily workloads.
Key Highlights:
- LGA 1700 Socket with Intel B760 Chipset: Supports Intel Core 14th, 13th, and 12th Gen processors plus Pentium Gold and Celeron, with Intel Turbo Boost 2.0 and Turbo Boost Max 3.0 support.
- DDR5 Memory up to 8000 MT/s (OC): Two DIMM slots with 96GB maximum capacity, supporting Intel XMP, On-Die ECC, and ASUS AEMP for enhanced performance and stability.
- PCIe 4.0 x16 Slot: At sufficient bandwidth for a modern graphics card, plus two PCIe 4.0 x1 slots for additional expansion.
- Dual PCIe 4.0 x4 M.2 Slots: At speeds up to 64Gbps, with Q-Latch for tool-free installation, reducing boot times and speeding up application loading.
- 4 × SATA 6Gb/s Ports: Provide extra storage capacity for hard drives and traditional SSDs, with RAID 0/1/5/10 support via Intel Rapid Storage Technology.
- Realtek 2.5Gb Ethernet with LANGuard: Delivers high-speed wired networking with hardware-level protection for improved throughput and network stability.
- VGA and HDMI Display Outputs: Support 4K@60Hz over HDMI when using a CPU with integrated graphics, with multi-display support.
- Realtek 7.1-Channel Audio: With audio shielding, dedicated audio PCB layers, and premium audio capacitors, supporting 24-bit/192kHz playback.

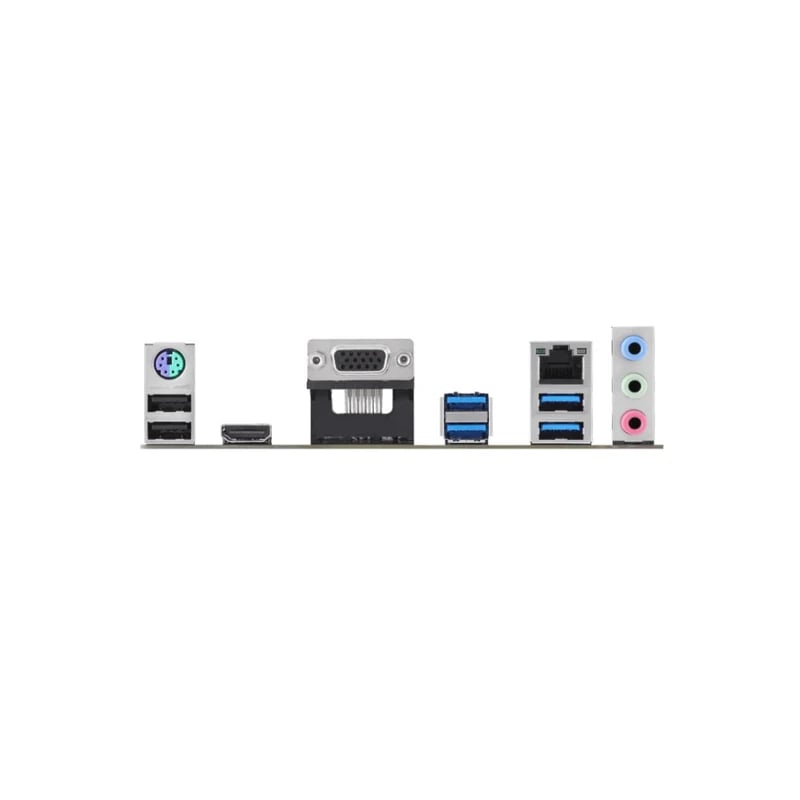

- Comprehensive USB Ports: 4 × rear USB 3.2 Gen 1 Type-A, 2 × USB 2.0, with a front USB 3.2 Gen 1 header supporting two additional ports and two USB 2.0 headers supporting three additional ports.
- EZ DIY Design and Comprehensive Cooling: Q-LED Core diagnostics, one CPU Fan header and two Chassis Fan headers, Aura Sync support via one Aura RGB header and two Addressable Gen 2 headers, and a PS/2 keyboard/mouse combo port.
