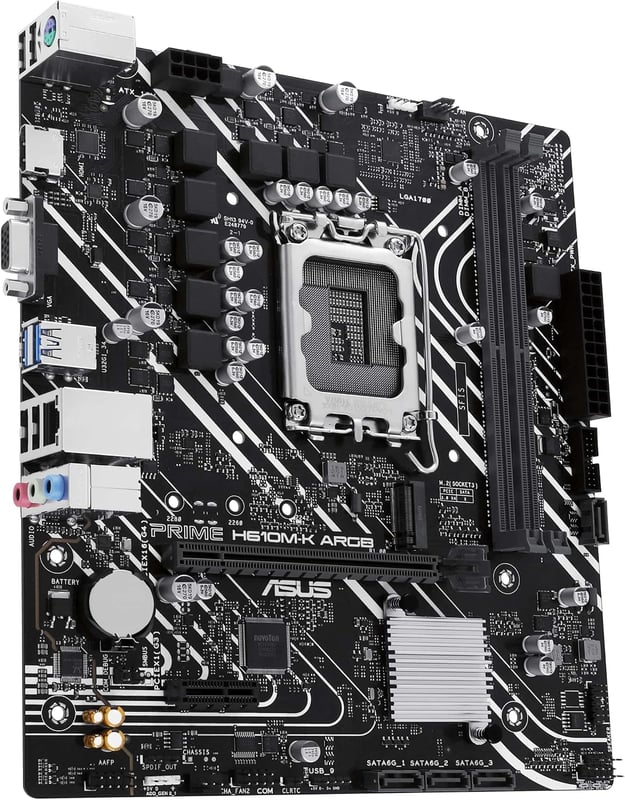

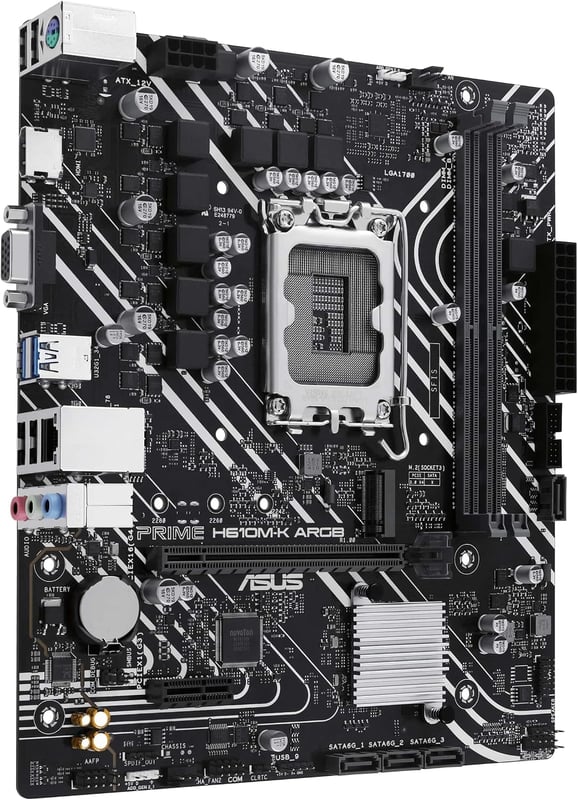

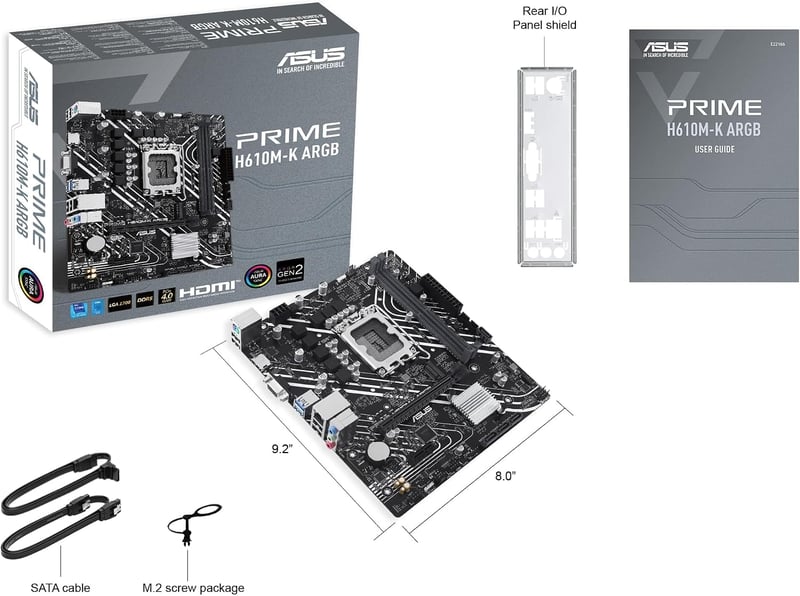

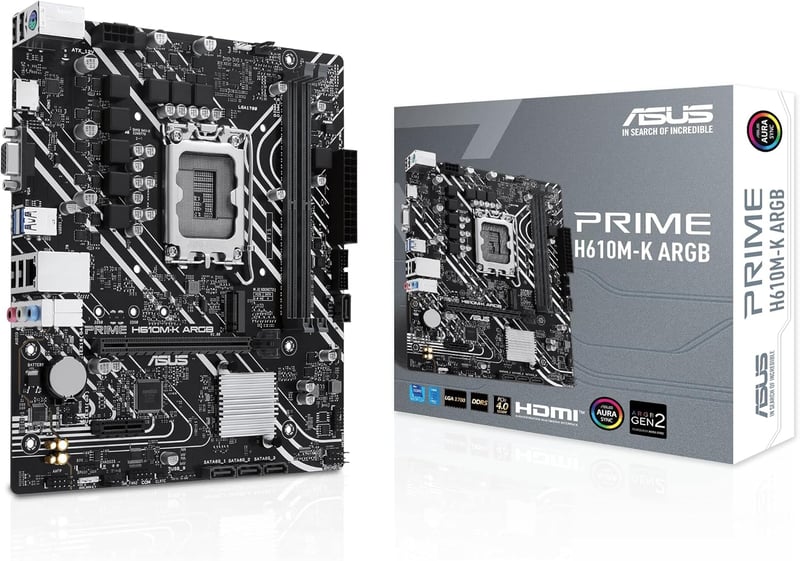

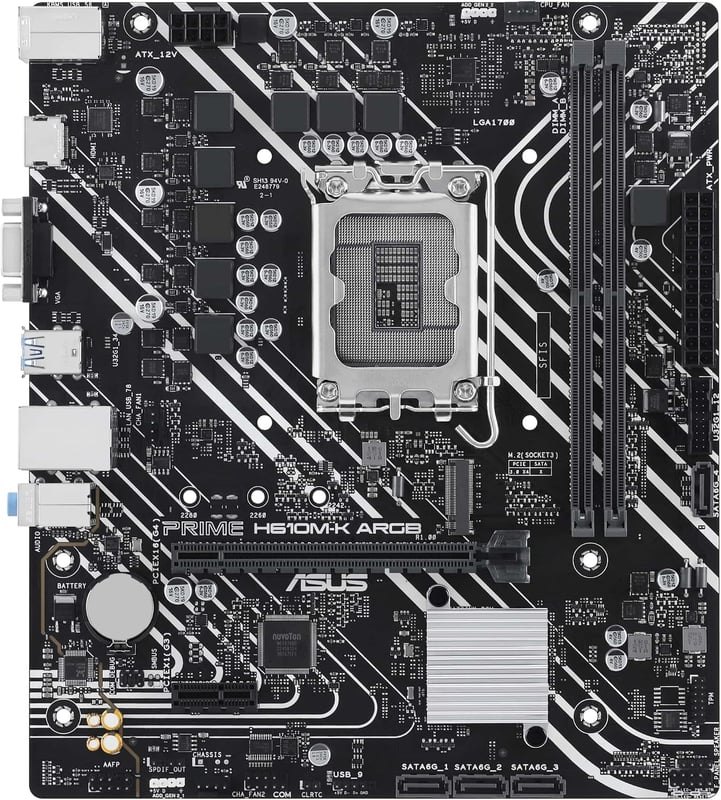

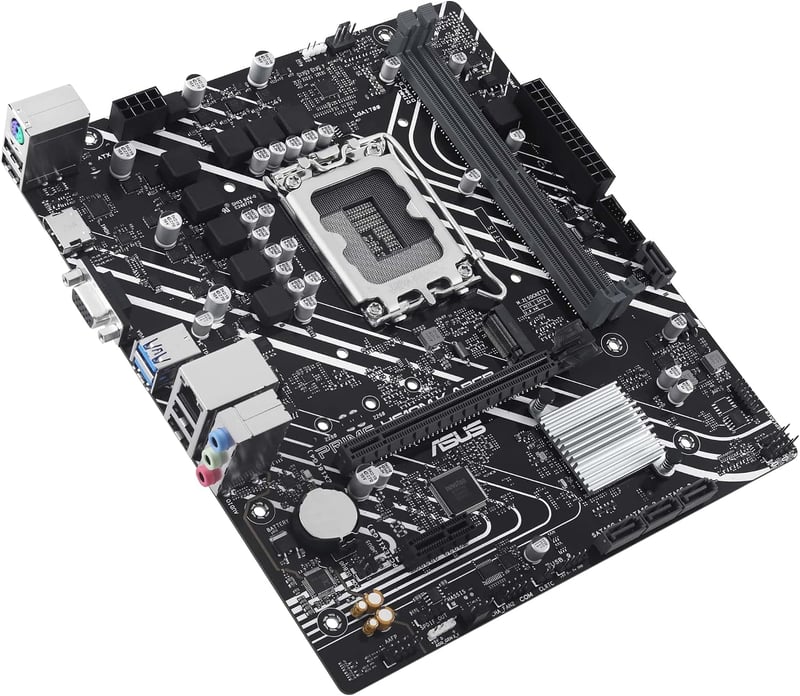

ASUS PRIME H610M-K D4 ARGB LGA 1700 Micro-ATX Motherboard
The ASUS PRIME H610M-K D4 ARGB micro-ATX motherboard offers a well-rounded foundation for 12th, 13th, and 14th Gen Intel Core processors on the LGA 1700 socket. It features 2x DDR4 DIMM slots supporting up to 64GB at 3200MHz, a PCIe 4.0 x16 slot, an M.2 NVMe slot for high-speed storage, and Realtek 1Gb Ethernet. Equipped with onboard Addressable Gen 2 headers for Aura Sync RGB customization alongside ASUS 5X Protection III, it provides optimal stability and lighting control for budget builds.
Warranty, Exchange & Return Policy
Specifications
Details
The ASUS PRIME H610M-K D4 ARGB micro-ATX motherboard is engineered to leverage cost-effective DDR4 system memory while unleashing the full potential of 12th, 13th, and 14th Gen Intel Core processors. Combining a robust power design, comprehensive cooling solutions, and intelligent tuning options, this motherboard provides daily users and PC builders with essential performance features highlighted by Aura Sync ARGB lighting integration.
Key Highlights & Specifications:
- Intel LGA 1700 Socket: Ready for 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors.
- Dual DDR4 Memory Slots: Outfitted with 2x DDR4 DIMM slots supporting up to 64GB of system memory at speeds up to 3200MHz in Dual-Channel mode.
- Aura Sync ARGB Lighting: Features 2x onboard Addressable Gen 2 headers that easily sync RGB LED strips and ARGB fans with Aura Sync-capable hardware.
- Next-Gen PCIe Expansion: Outfitted with a primary PCIe 4.0 x16 slot featuring ASUS SafeSlot Core for enhanced retention and shearing resistance when using modern GPUs.
- Fast M.2 Storage Interface: Includes a 32Gbps M.2 slot (PCIe 3.0 x4 mode) alongside 4x SATA 6Gb/s ports for versatile storage configurations.
- ASUS 5X Protection III: Comprehensive hardware safeguards including DIGI+ VRM digital power control, LANGuard surge protection, overvoltage protection, and stainless-steel back I/O.
- Comprehensive Cooling Control: Configurable via Fan Xpert software or UEFI BIOS, ensuring optimal thermal management for connected system fans.
- Q-LED Core Visual Troubleshooting: Onboard LED indicators produce light patterns during POST to assist in quick diagnostic troubleshooting.

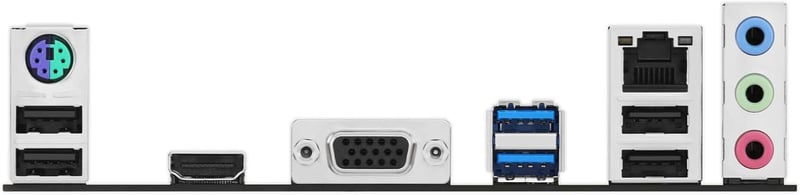

- Essential Rear I/O: Features HDMI 2.1 port supporting 4K@60Hz output, USB 3.2 Gen 1 (5Gbps) Type-A ports, USB 2.0 ports, Realtek 1Gb Ethernet, and 7.1 HD audio jacks.
