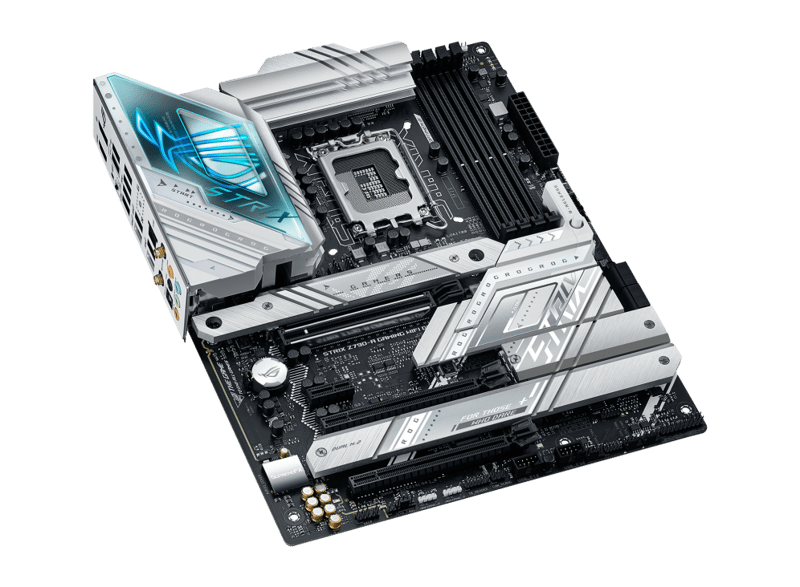

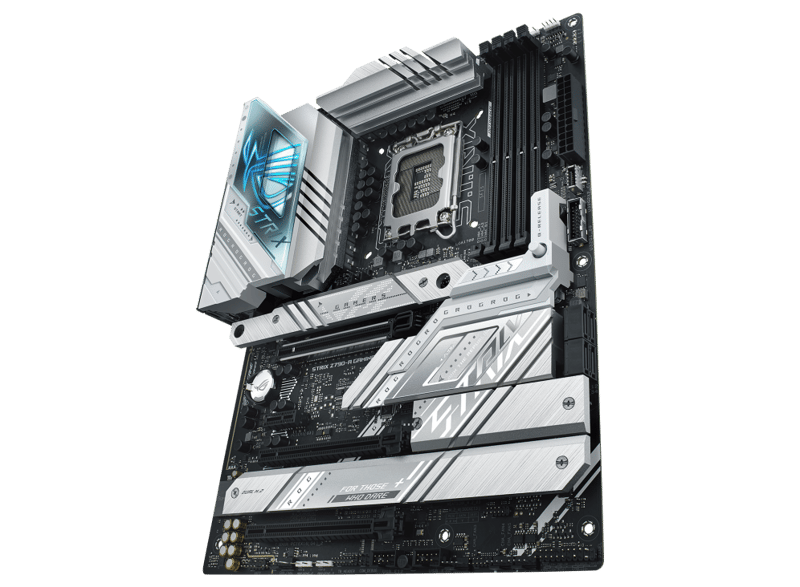

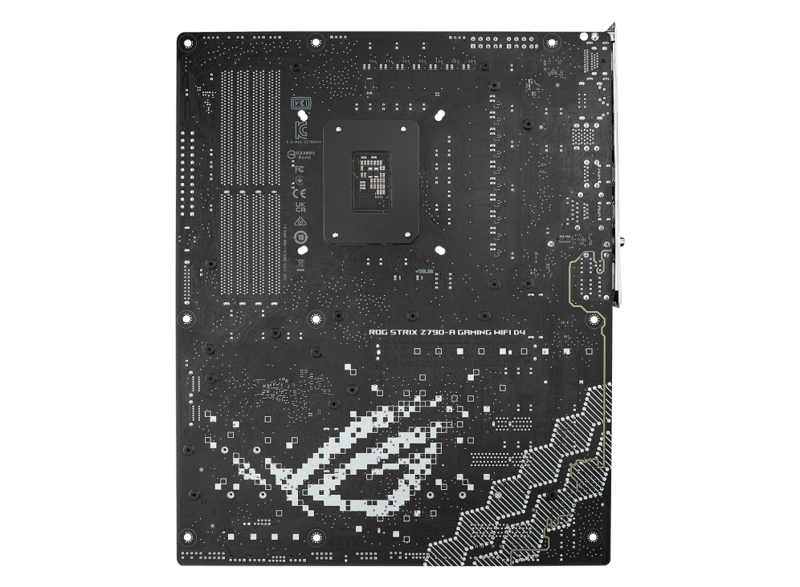

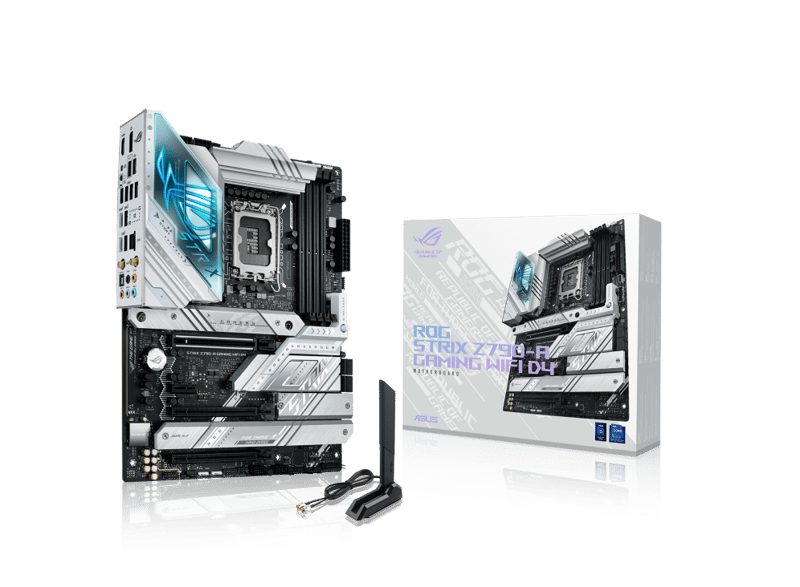

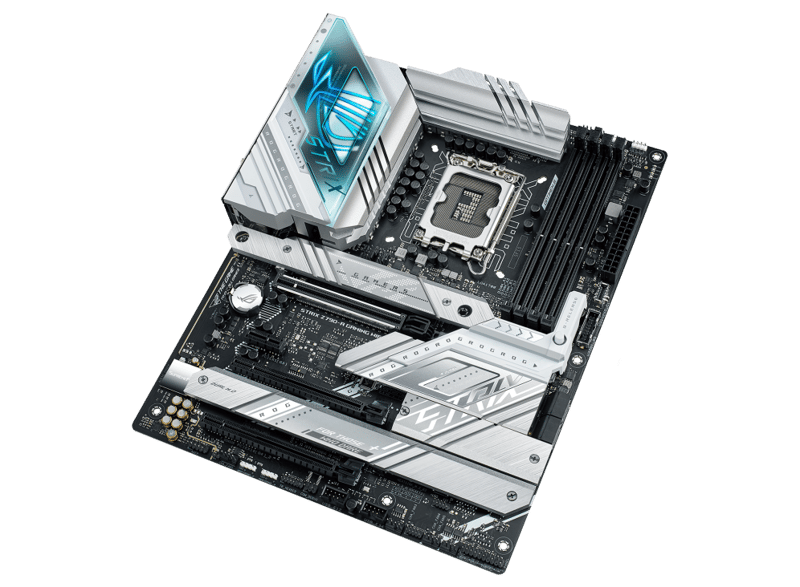

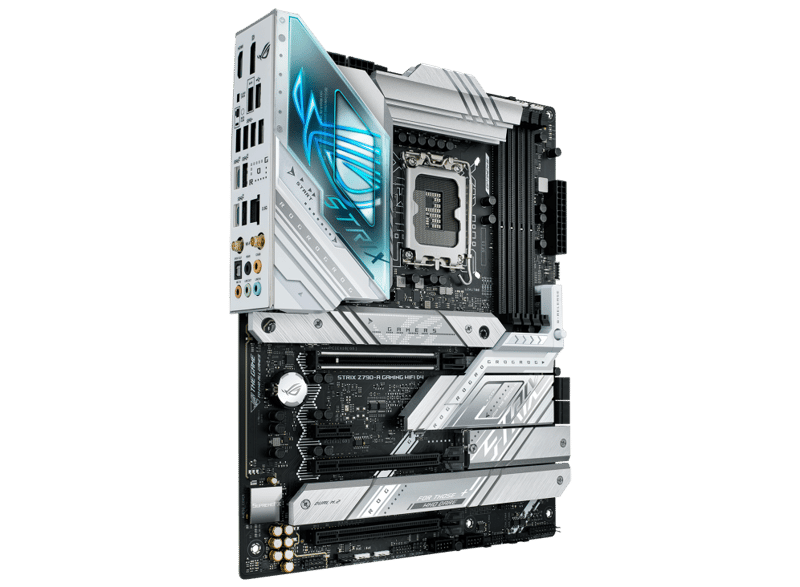

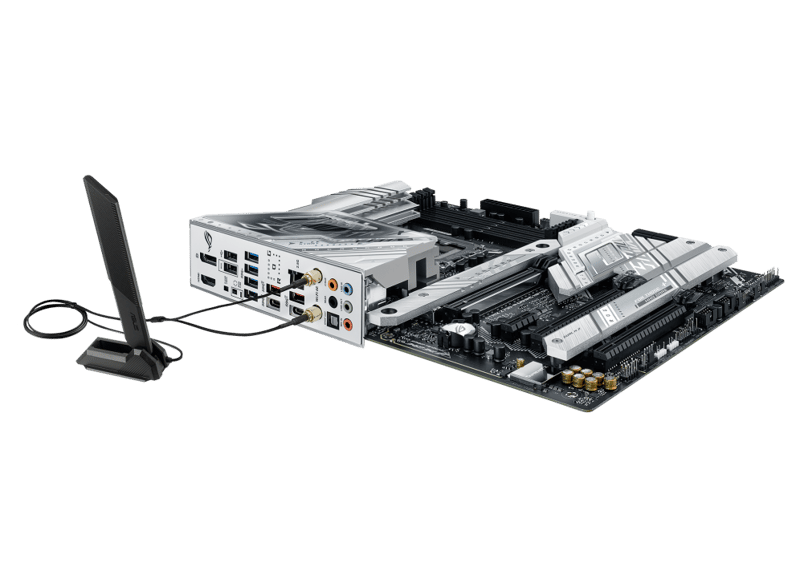

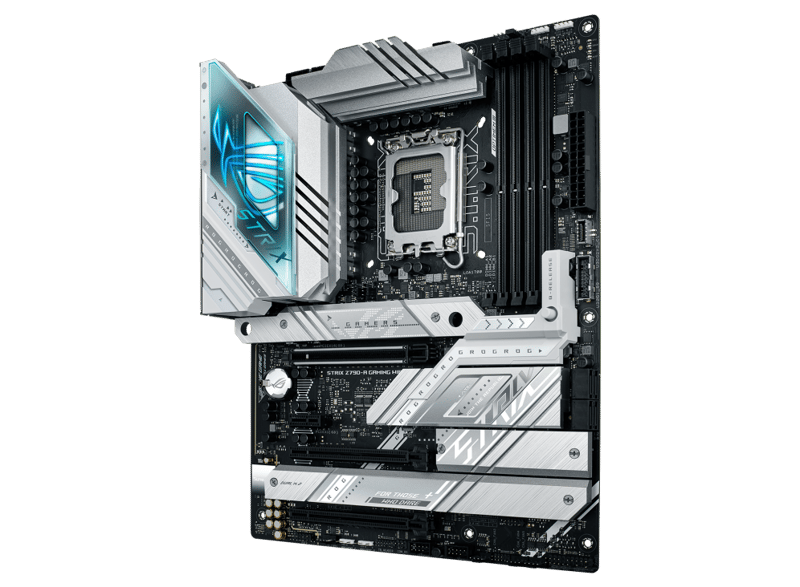

ASUS ROG STRIX Z790-A GAMING WIFI D4 LGA 1700 ATX Motherboard DDR4 PCIe 5.0
The ASUS ROG STRIX Z790-A GAMING WIFI D4 ATX motherboard is built for Intel Core 14th, 13th, and 12th Gen processors on LGA 1700, offering a powerful foundation for competitive gaming builds with the value of DDR4 memory. It supports DDR4 up to 5333 MT/s (OC) with a maximum capacity of 128GB across four DIMM slots, and includes a PCIe 5.0 x16 slot, four M.2 slots, four SATA ports, Intel 2.5Gb Ethernet, Wi-Fi 6E, ROG SupremeFX ALC4080 audio, and Aura Sync lighting.
Warranty, Exchange & Return Policy
Specifications
Details

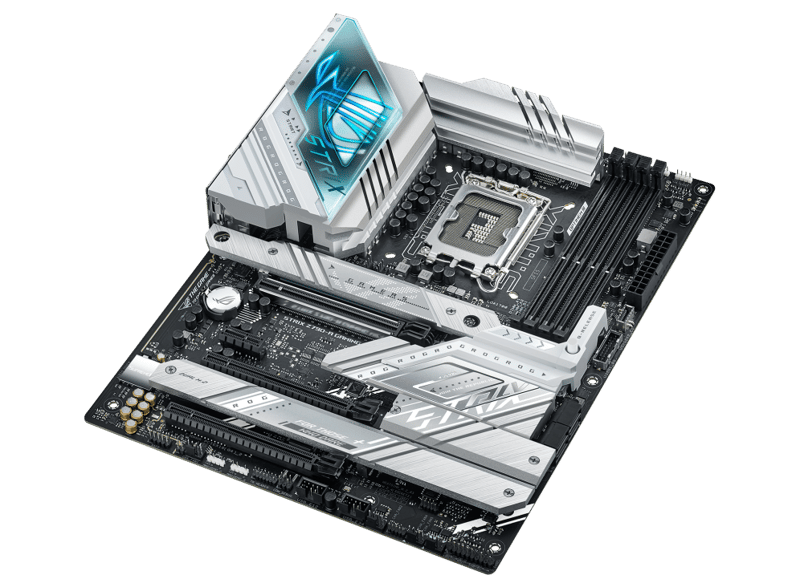

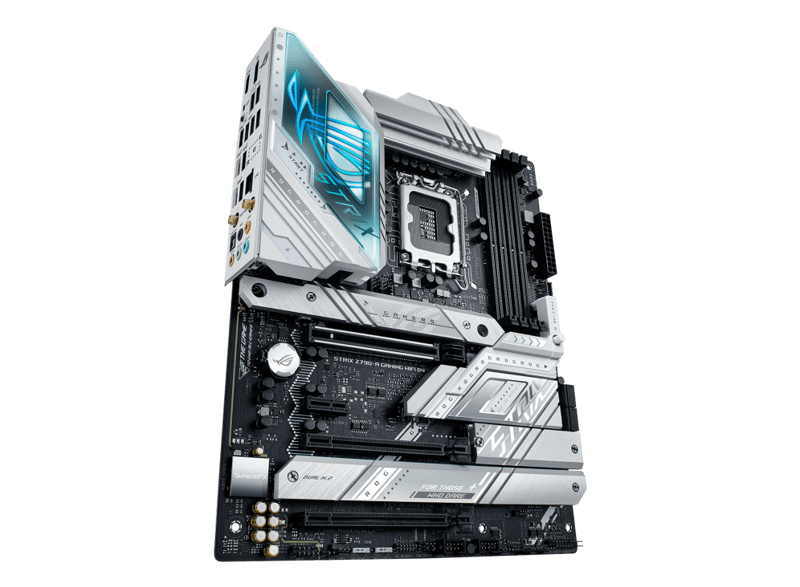

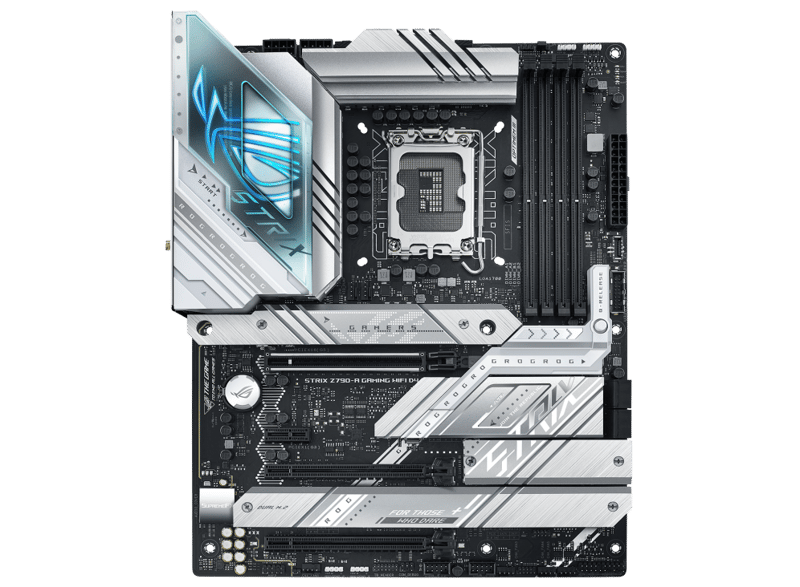

The ASUS ROG STRIX Z790-A GAMING WIFI D4 ATX motherboard is the powerful foundation for a professional gaming build based on Intel Core 14th, 13th, and 12th Gen processors on LGA 1700. Part of the renowned ROG STRIX series with a black design and customizable Aura Sync lighting, it offers full DDR4 support up to 5333 MT/s (OC) across four DIMM slots with a maximum capacity of 128GB, with OptiMem III technology for improved memory stability and reduced latency. It features an Extreme Engine Digi+ power design with 5K Black Metallic capacitors, and enlarged VRM cooling with front and back M.2 heatsinks.
Key Highlights:
- LGA 1700 Socket with Intel Z790 Chipset: Supports Intel Core 14th, 13th, and 12th Gen processors plus Pentium Gold and Celeron, with Intel Turbo Boost 2.0 and Turbo Boost Max 3.0 support.
- DDR4 Memory up to 5333 MT/s (OC): Four DIMM slots with 128GB maximum capacity, Intel XMP and OptiMem III support for enhanced performance and stability, and non-ECC un-buffered memory support.
- PCIe 5.0 x16 Slot: From the CPU at full bandwidth for graphics cards, plus two PCIe 4.0 x16 slots (x4/x4 mode) and one PCIe 3.0 x1 slot for additional expansion.
- Four PCIe 4.0 x4 M.2 Slots: Supporting 2242/2260/2280/22110 sizes, with one slot supporting SATA mode, plus 4 × SATA 6Gb/s ports and RAID 0/1/5/10 support via Intel Rapid Storage Technology.
- Intel 2.5Gb Ethernet with LANGuard: Delivers high-speed wired networking with hardware-level protection to improve throughput and reduce CPU overhead.
- Wi-Fi 6E and Bluetooth 5.3: Supports 2.4/5/6 GHz bands at 2x2, optimized for crowded networks, with 6 GHz availability varying by local regulations.
- ROG SupremeFX ALC4080 Audio: 7.1-channel high-definition audio with 120 dB SNR playback and 113 dB SNR recording, 32-bit/384kHz playback support, Savitech SV3H712 amp, optical S/PDIF out, and premium audio capacitors.

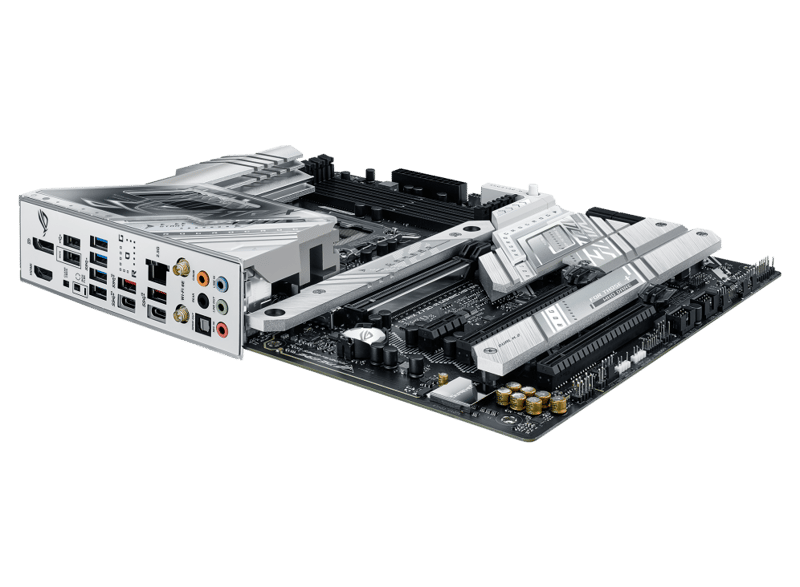

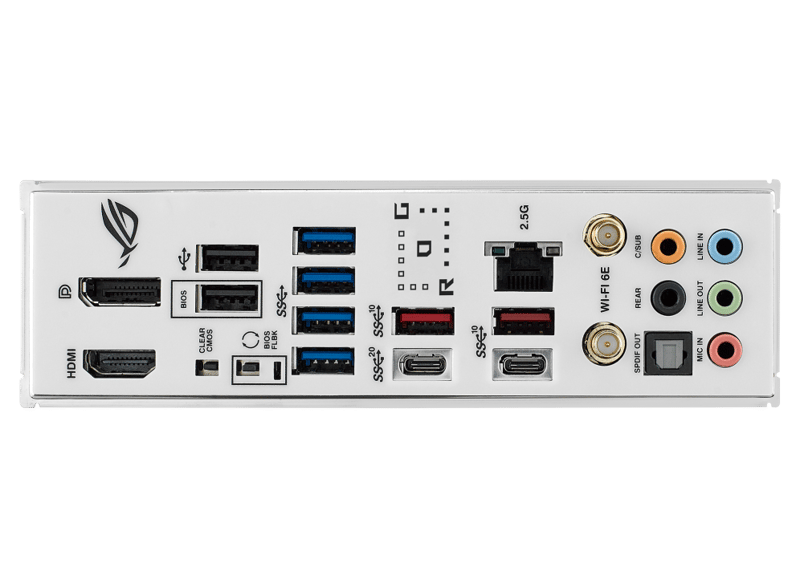

- Comprehensive USB Ports: Rear USB 3.2 Gen 2x2 Type-C, three USB 3.2 Gen 2 ports (including Type-C), four USB 3.2 Gen 1 ports, two USB 2.0 ports, and a front USB 3.2 Gen 2x2 header supporting up to 30W PD charging.
- EZ DIY Design and Comprehensive Cooling: BIOS FlashBack and Clear CMOS buttons, Q-LED diagnostics, M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, multiple fan headers including CPU OPT and AIO Pump, and Aura Sync support via 3 Addressable Gen 2 headers and 1 Aura RGB header.
