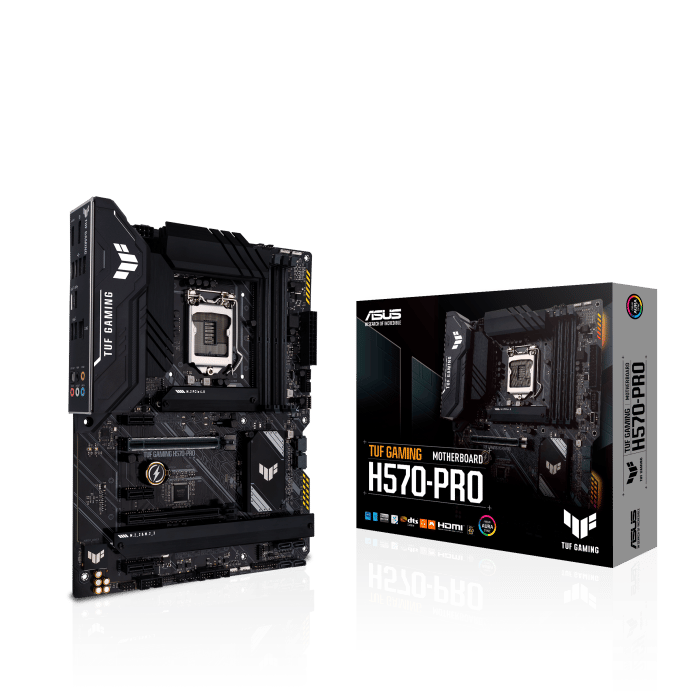

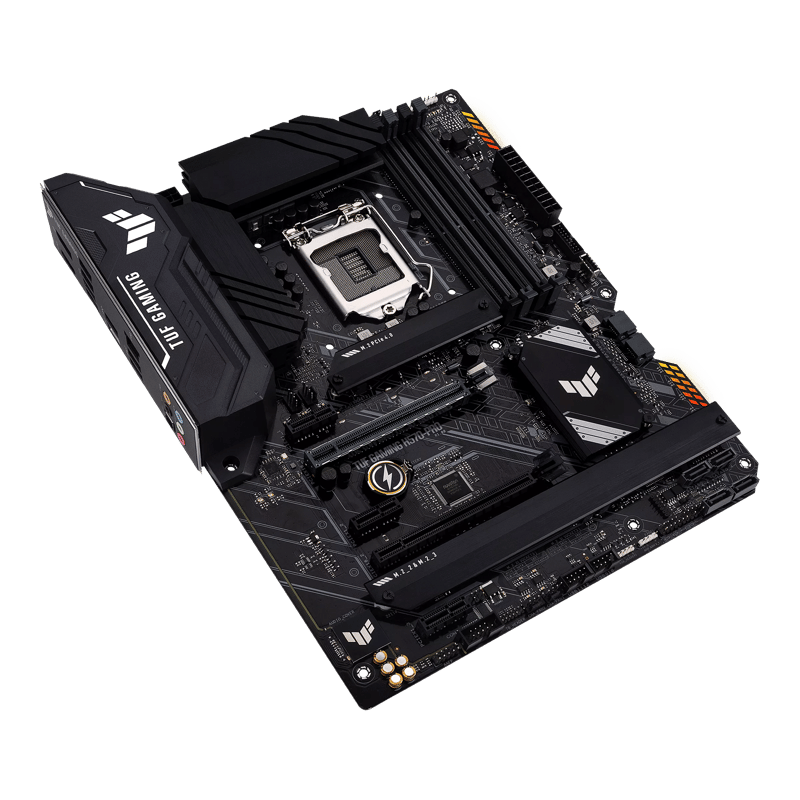

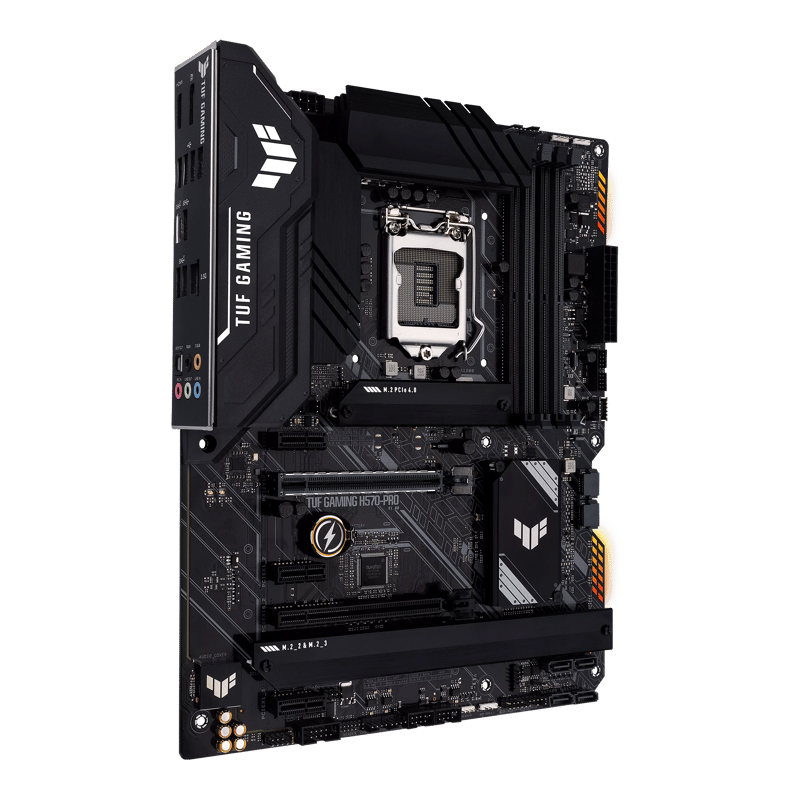

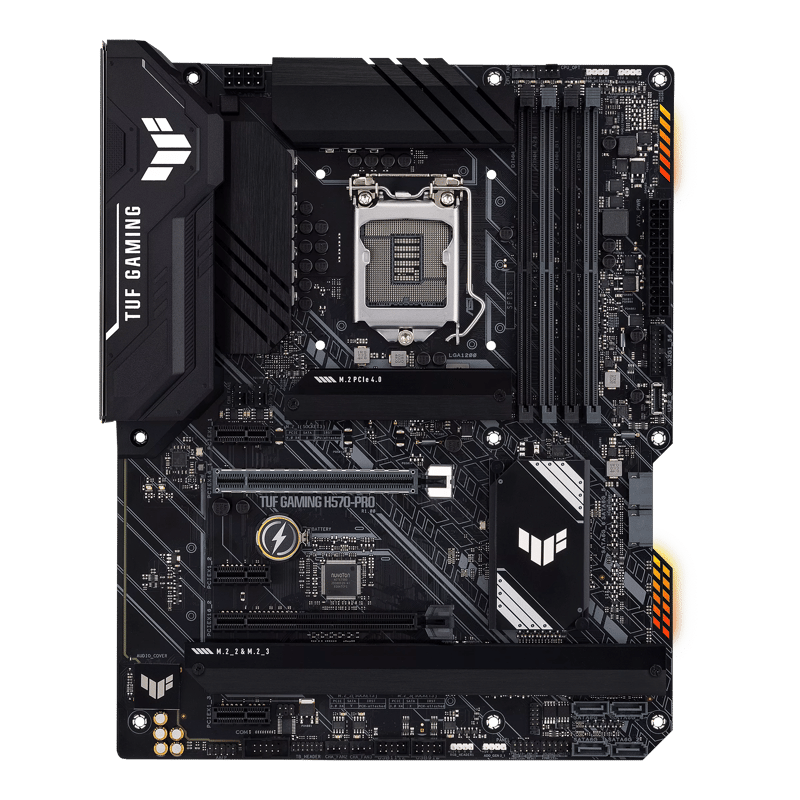

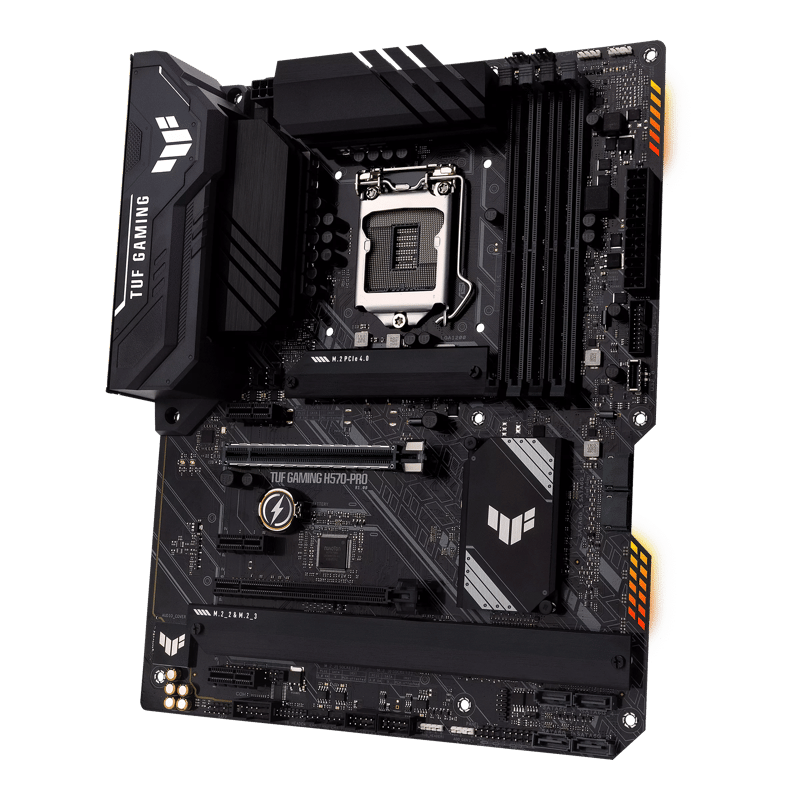

ASUS TUF GAMING H570-PRO LGA 1200 ATX Motherboard DDR4 PCIe 4.0 2.5Gb Ethernet
The ASUS TUF GAMING H570-PRO ATX motherboard is built for Intel Core 11th and 10th Gen processors on LGA 1200, providing a durable foundation for office and mid-range gaming builds. It supports DDR4 memory up to 5000 MT/s (OC) with a maximum capacity of 128GB across four DIMM slots, and includes a PCIe 4.0 x16 slot (with an 11th Gen CPU), three M.2 slots, six SATA ports, Realtek 2.5Gb Ethernet with TUF LANGuard, and Realtek ALC S1200A 7.1-channel audio.
Warranty, Exchange & Return Policy
Specifications
Details
The ASUS TUF GAMING H570-PRO ATX motherboard is the durable foundation for an office or mid-range gaming build based on Intel Core 11th and 10th Gen processors on LGA 1200. Part of the TUF GAMING series built for durability and reliability, it features military-grade components and comprehensive protection including DIGI+ VRM, TUF LANGuard, and Overvoltage Protection. It supports DDR4 memory up to 5000 MT/s (OC) across four DIMM slots with a maximum capacity of 128GB, with OptiMem II technology for improved memory stability and reduced latency.
Key Highlights:
- LGA 1200 Socket with Intel H570 Chipset: Supports Intel Core 11th and 10th Gen processors plus Pentium Gold and Celeron, with Intel Turbo Boost 2.0 and Turbo Boost Max 3.0 support.
- DDR4 Memory up to 5000 MT/s (OC): Four DIMM slots with 128GB maximum capacity, Intel XMP and OptiMem II support. Note: native memory speed varies by CPU (3200 MT/s for 11th Gen, 2933 MT/s for 10th Gen i7/i9).
- PCIe 4.0 x16 Slot: At double bandwidth for graphics cards with an 11th Gen CPU, with reinforced SafeSlot armor, plus a PCIe 3.0 x16 slot (x4 mode) and three PCIe 3.0 x1 slots for expansion.
- Three M.2 Slots: M.2_1 supports PCIe 4.0 x4 (11th Gen CPUs only), M.2_2 supports PCIe 3.0 x4 and SATA mode, and M.2_3 supports PCIe 3.0 x4, supporting 2242/2260/2280/22110 sizes, with an integrated M.2 heatsink and M.2 Q-Latch.
- 6 × SATA 6Gb/s Ports: Provide extensive storage capacity, with RAID 0/1/5/10 support. Note: SATA6G_2 is disabled when M.2_2 runs in SATA mode.
- Realtek 2.5Gb Ethernet with TUF LANGuard: Delivers high-speed wired networking with advanced hardware-level protection for improved throughput and network stability.
- Realtek ALC S1200A 7.1-Channel Audio: With audio shielding, dedicated audio PCB layers, premium Japanese audio capacitors, and optical S/PDIF out, supporting 24-bit/192kHz playback.

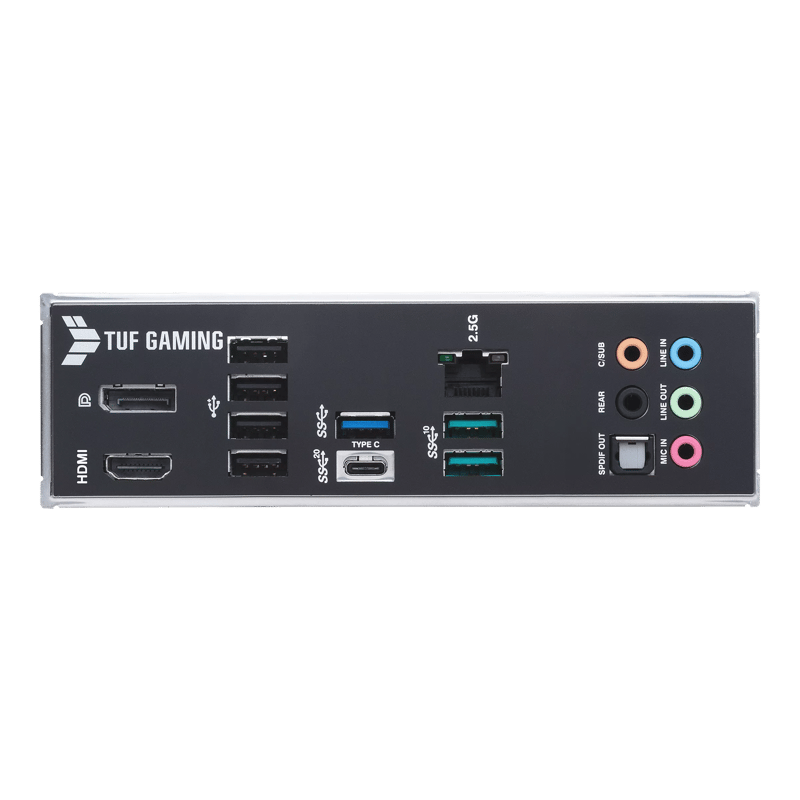

- Comprehensive USB Ports: Rear USB 3.2 Gen 2x2 Type-C at 20Gbps, two USB 3.2 Gen 2 Type-A, one USB 3.2 Gen 1 Type-A, four USB 2.0, plus a front USB 3.2 Gen 1 Type-C connector, a USB 3.2 Gen 1 header supporting two additional ports, and two USB 2.0 headers supporting four additional ports.
- EZ DIY Design and Comprehensive Cooling: VRM and M.2 heatsinks, one CPU Fan header, a CPU OPT header, an AIO Pump header, and three Chassis Fan headers, Q-LED diagnostics, M.2 Q-Latch, Q-DIMM, and Q-Slot, an optional Thunderbolt header, and Aura Sync support via 2 Aura RGB headers and 2 Addressable Gen 2 headers, with a COM port for industrial applications.
