Colorful BATTLE-AX B450M-T M.2 V14 AM4 Micro-ATX DDR4 Motherboard

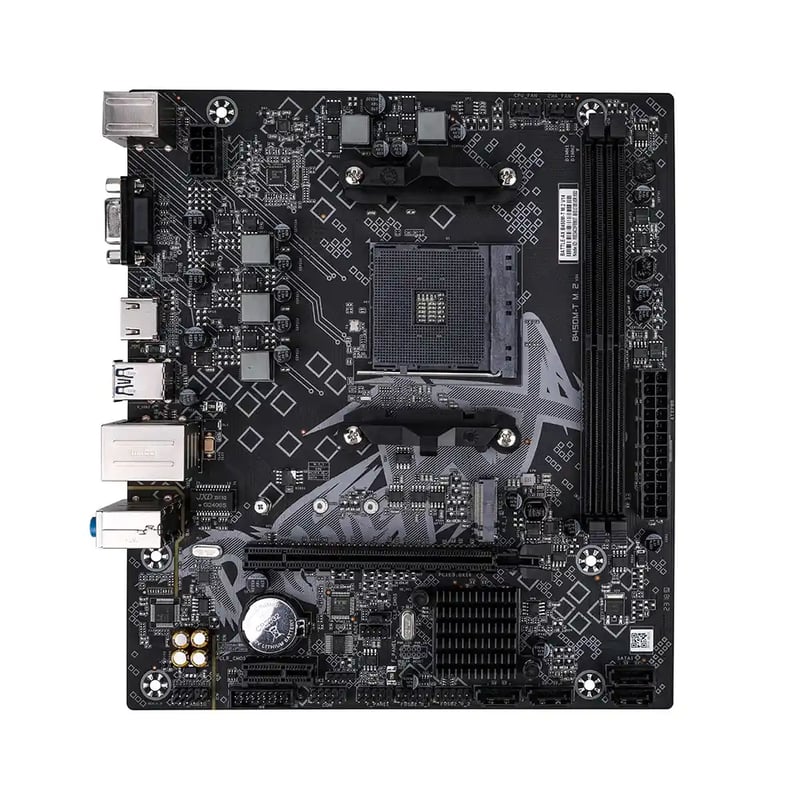

The Colorful BATTLE-AX B450M-T M.2 V14 arrives in a 220 × 195mm Micro-ATX frame, aimed at builders who want a simple, dependable AM4 platform at the lowest possible cost. It runs the AMD B450 chipset with a 128M BIOS and keeps the layout direct for office and budget builds.

Key Highlights:

• Broad AM4 CPU Support: The AM4 socket accepts Ryzen 5000, 5000 G-Series, 4000 G-Series, and 1st through 3rd Gen processors, keeping CPU options flexible.
• DDR4 Up to 64GB: Two dual-channel DIMM slots support speeds reaching 3600 MT/s (OC) with XMP, speeding up applications and improving system responsiveness.
• PCIe 3.0 x4 M.2 Slot: Connected directly to the CPU and accepting 2242, 2260, and 2280-length drives, speeding up boot and app loads with NVMe storage.
• Four SATA 6Gb/s Ports: Room to connect SSDs and hard drives for storage or backup.
• Realtek Gigabit Ethernet: An RTL8111H controller delivers a steady 1-gigabit wired connection for downloads and streaming.

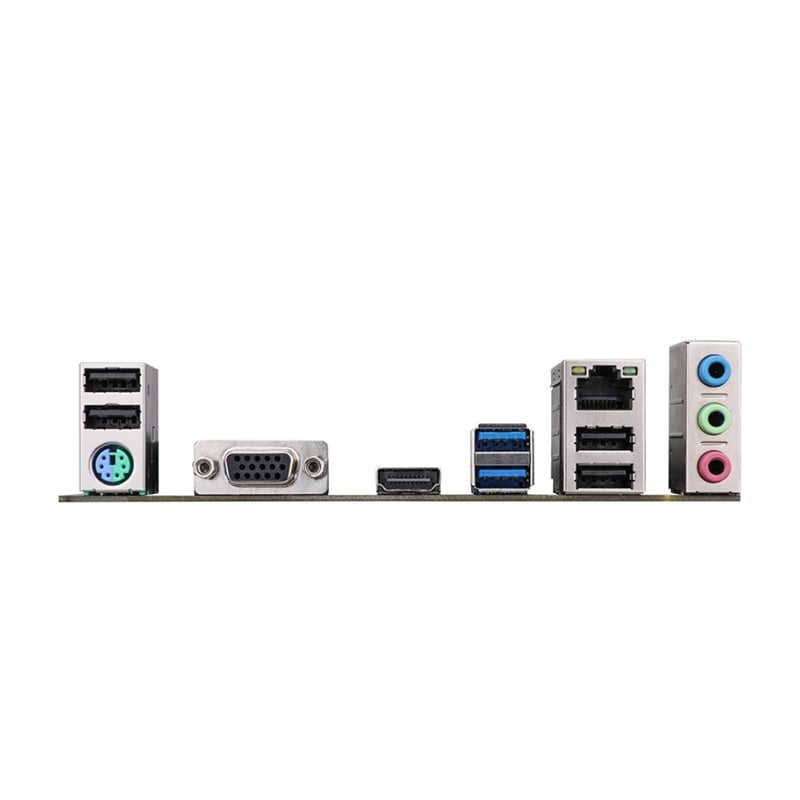

• Dual Display Outputs: HDMI 2.0 at 4K 60Hz and a VGA port, active only with a CPU that has integrated graphics.
• Realtek ALC897 Audio: A 5.1-channel high-definition codec with three rear jacks (input, output, mic) covers speakers and microphone needs.
• Added Protection: Six protective technologies improve operational stability, with strict testing across more than 200 processes for quality assurance.
• Expanded Power Management: S3/S4 and network S5 wake support, USB wake, timed boot, and power-on after power restoration.
• Monitoring and Control: CPU and system fan speed control, with CPU and system temperature monitoring and voltage monitoring.
