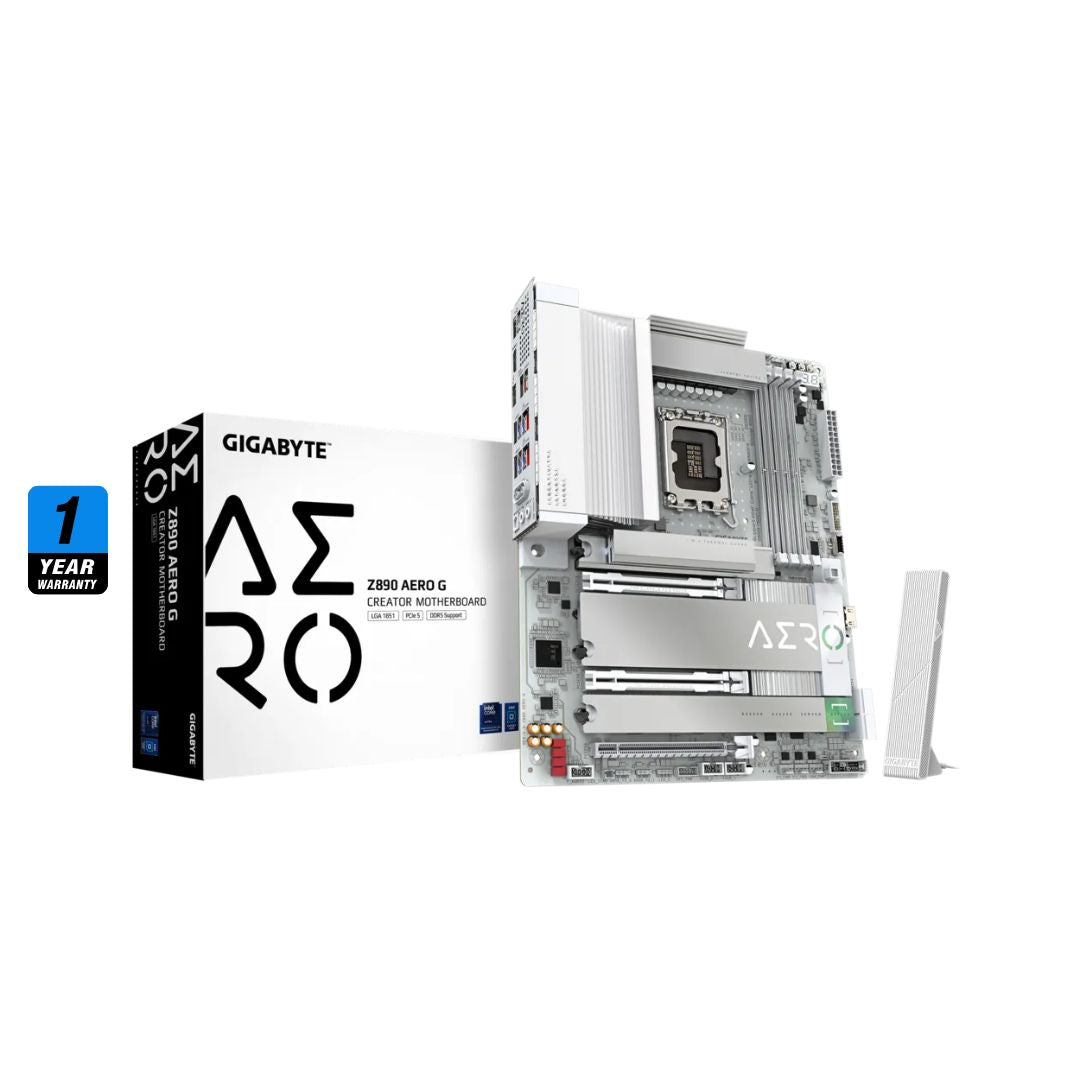

Gigabyte AERO G Z890 LGA1851 ATX DDR5 Motherboard

Motherboard Specification • Processor Support : LGA1851 socket, supports Intel® Core™ Ultra Processors • Chipset : Intel® Z890 Express • Memory Support : 4 x DDR5 DIMM slots, up to 256GB Supports up to 9200MT/s (OC) Supports ECC (non-ECC mode), XMP, and CUDIMM modules Dual channel memory architecture • Graphics Ports : 1 x Thunderbolt™ 4 (USB4® Type-C®) – up to 5120x2880@60Hz 1 x HDMI 2.1 – up to 4096x2160@60Hz 1 x Front HDMI 1.4 – up to 1920x1080@30Hz Supports up to triple-display • Expansion Slots : 1 x PCIe 5.0 x16 1 x PCIe 5.0 x8 (shares bandwidth with x16) 1 x PCIe 4.0 x4 • Storage : 2 x M.2 (CPU) – 1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4 3 x M.2 (Chipset) – PCIe 4.0 x4/x2 & SATA 4 x SATA 6Gb/s RAID 0/1/5/10 for NVMe and SATA • Ethernet : 2 x Intel® 2.5GbE LAN • Wireless & Bluetooth : Intel® Wi-Fi 7 BE202 + Bluetooth® 5.4 • USB : Back: 1 x Thunderbolt™ 4 (USB4® Type-C®) 2 x USB 3.2 Gen2 Type-A (red) 4 x USB 3.2 Gen1 2 x USB 2.0 Internal: 1 x USB-C (Gen 2x2) 1 x USB 3.2 Gen1 header 2 x USB 2.0 headers (4 ports) • Audio : Realtek® ALC1220, 7.1-channel HD Audio, DSD, S/PDIF Out • Internal I/O Connectors : 2 x 8-pin + 1 x 24-pin power 5 x M.2, 4 x SATA USB-C Gen 2x2, USB 3.2 Gen1, USB 2.0 ARGB & RGB headers, TPM, HDMI, fan/pump headers, reset, Q-Flash, power buttons • Back Panel I/O Ports : 1 x HDMI 1 x Thunderbolt™ 4 (USB-C) 2 x USB 3.2 Gen2 Type-A (red) 4 x USB 3.2 Gen1 2 x USB 2.0 2 x RJ-45 2 x SMA Wi-Fi Antennas 2 x Audio jacks + 1 x Optical S/PDIF • Form Factor : ATX, 30.5 x 24.4 cm
