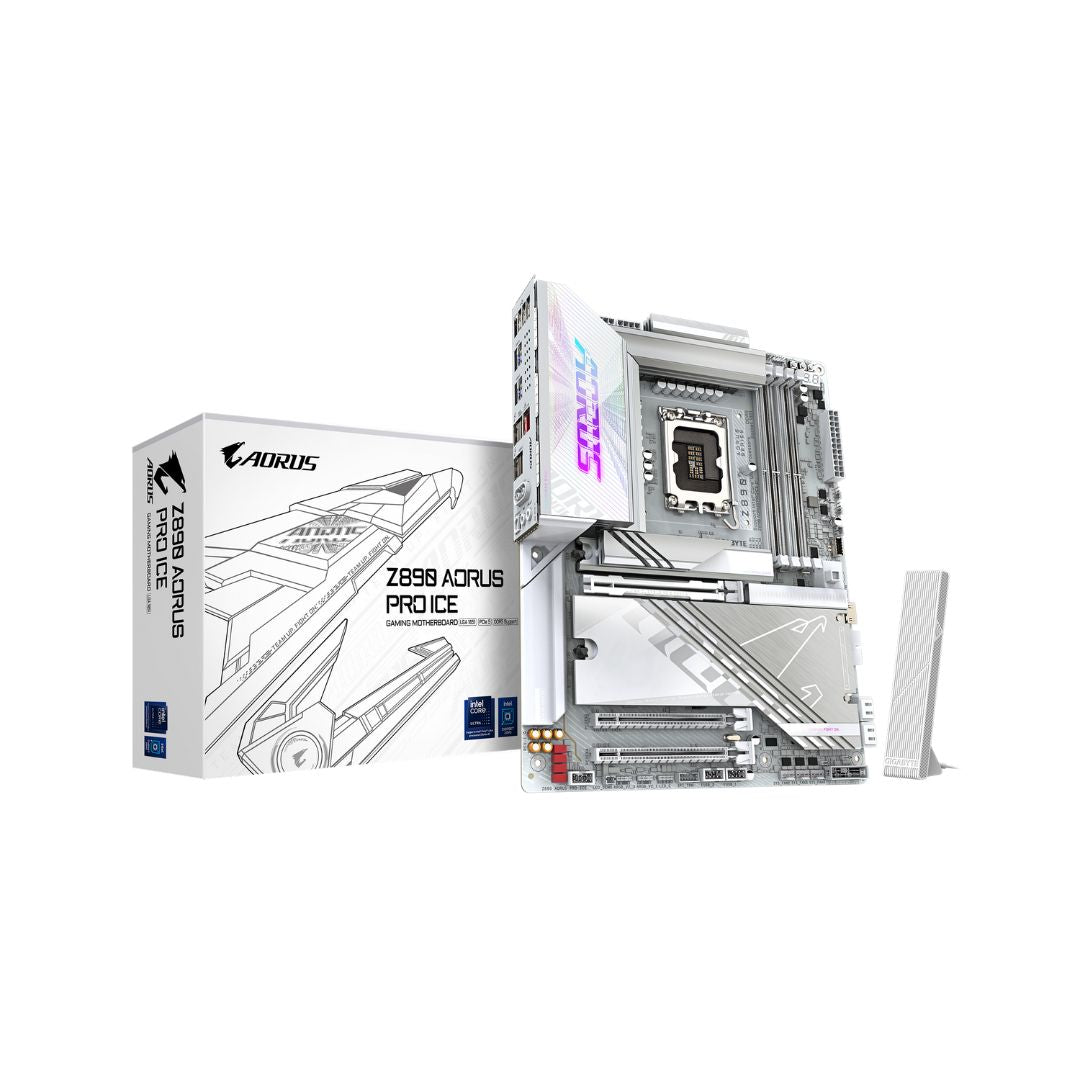

Gigabyte AORUS Z890 Pro LGA1851 ATX DDR5 Motherboard
By Gigabyte625,000IQD
In Stock
Warranty, Exchange & Return Policy
Specifications
SocketLga1851
ChipsetIntel Z890
M.2 Slots5
SATA Ports4
Form FactorAtx
Memory TypeDdr5
Memory Slots4
Max Memory (GB)256 GB
RGB LightingYes
WiFiYes
Details
Motherboard Specification CPU Socket: LGA1851, Intel® Core™ Ultra Processors (L3 cache varies with CPU) Chipset: Intel® Z890 Express Chipset Memory: Supports DDR5 9500(O.C) to 5600MT/s 4 x DDR5 DIMM sockets (up to 256 GB) Dual channel architecture Supports ECC and non-ECC Un-buffered DIMM XMP and CUDIMM support Graphics: Integrated Intel® HD Graphics 2 x Thunderbolt™ 4 (USB4® Type-C®) supporting DisplayPort 1 x HDMI port (1920x1080@30 Hz, HDMI 1.4) Support for up to triple display simultaneously Audio: Realtek® ALC1220 CODEC, High Definition Audio 2/4/5.1/7.1-channel configuration Supports S/PDIF Out Networking: Realtek® 5GbE LAN (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Intel® Wi-Fi 7 BE200 (802.11a/b/g/n/ac/ax/be) Bluetooth 5.4 Expansion Slots: CPU: 1 x PCIe 5.0 x16 (for GPU or NVMe SSD) Chipset: 1 x PCIe 4.0 x4, 1 x PCIe 4.0 x1 Storage Interface: CPU: 1 x M.2 PCIe 5.0 x4/x2, 1 x M.2 PCIe 4.0 x4/x2 Chipset: 3 x M.2 PCIe 4.0 x4/x2, 1 x M.2 PCIe 4.0 x4/x2 (SATA support), 4 x SATA 6Gb/s RAID: 0, 1, 5, 10 for NVMe and SATA USB Ports: CPU: 2 x Thunderbolt™ 4 (USB Type-C®) Chipset: 1 x USB 3.2 Gen 2x2 Type-C®, 2 x USB 3.2 Gen 2 Type-A, 6 x USB 3.2 Gen 1, 8 x USB 2.0/1.1 Internal I/O Connectors: 24-pin ATX, 2 x 8-pin ATX 12V 1 x CPU fan header, 1 x water cooling pump header 4 x system fan headers, 2 x system fan/water pump headers 3 x addressable RGB Gen2 LED headers, 1 x RGB LED header 5 x M.2 connectors, 4 x SATA 6Gb/s connectors 1 x HDMI port, 1 x USB Type-C® header 1 x Trusted Platform Module header 2 x temperature sensor headers Back Panel I/O Ports: 4 x USB 2.0/1.1, 4 x USB 3.2 Gen 1, 2 x Thunderbolt™ 4 (USB Type-C®), 2 x USB 3.2 Gen 2 Type-A 1 x RJ-45, 2 x antenna connectors 1 x optical S/PDIF Out, 2 x audio jacks BIOS: 256 Mbit flash, AMI UEFI BIOS Supports Q-Flash and Q-Flash Plus Unique Features: GIGABYTE Control Center (GCC) Norton® Internet Security (OEM) LAN bandwidth management software Voltage, temperature, fan speed, and noise detection Operating System Support: Windows 11 64-bit Form Factor: ATX (30.5 cm x 24.4 cm)
SocketLga1851
ChipsetIntel Z890
M.2 Slots5
SATA Ports4
Form FactorAtx
Memory TypeDdr5
Memory Slots4
Max Memory (GB)256 GB
RGB LightingYes
WiFiYes
