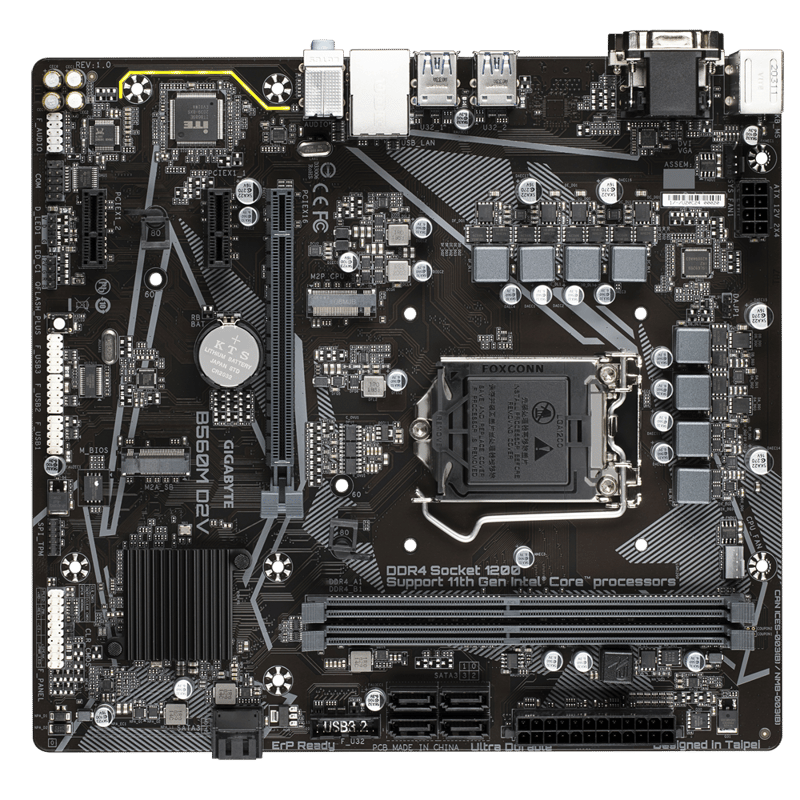

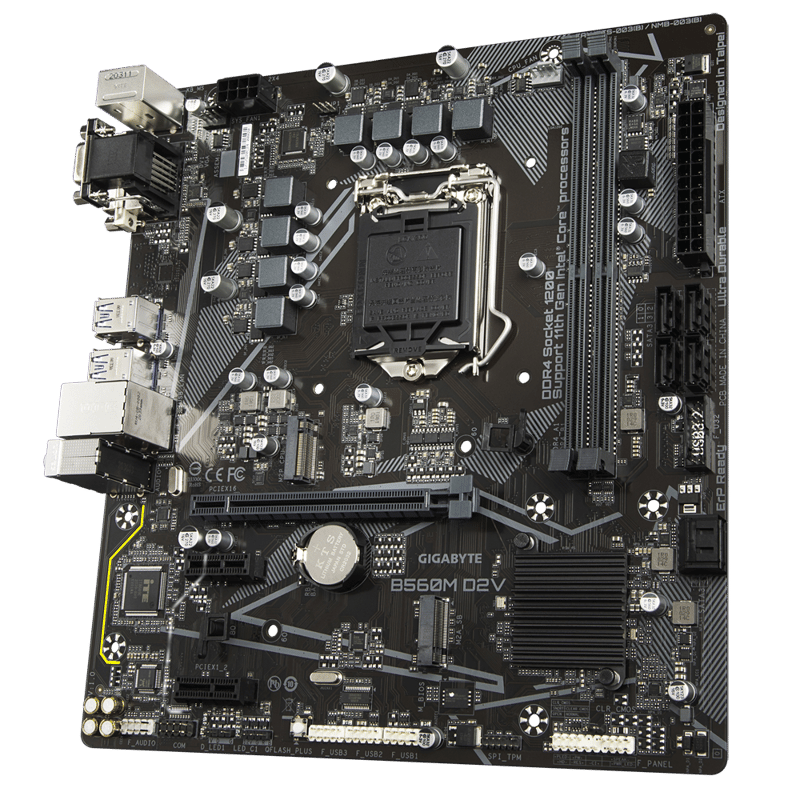

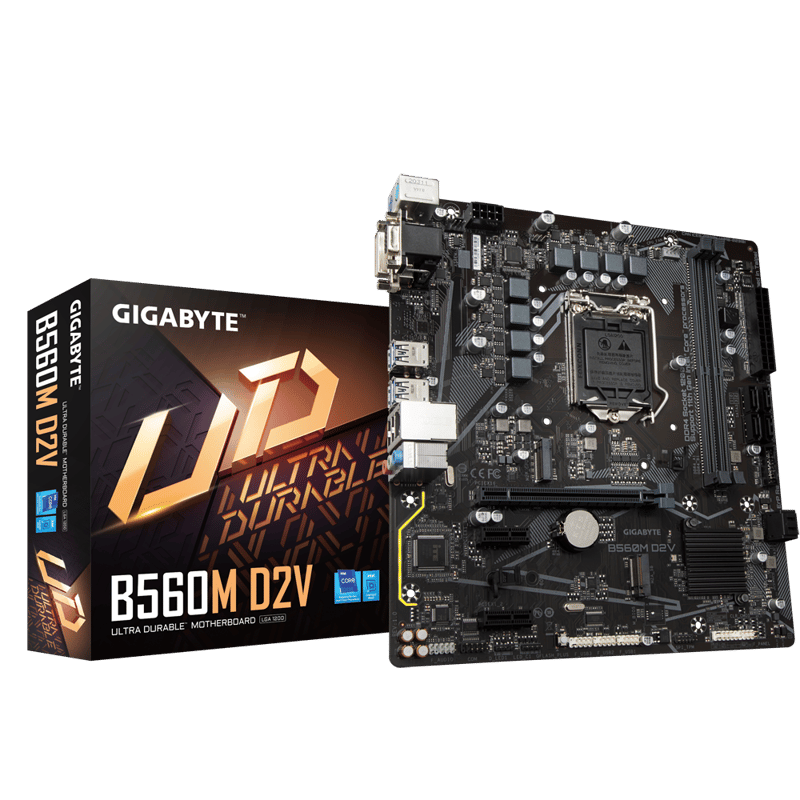

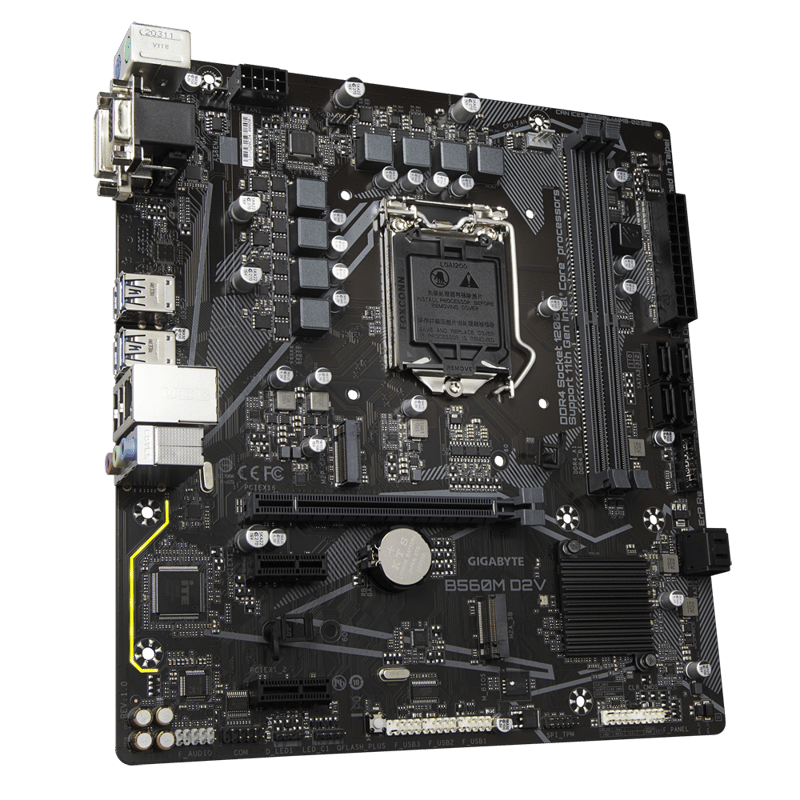

GIGABYTE B560M D2V LGA 1200 Micro-ATX Motherboard DDR4
The GIGABYTE B560M D2V Micro-ATX motherboard is built for Intel Core 11th and 10th Gen processors on LGA 1200, offering a budget-friendly and reliable foundation for office and home builds. It supports DDR4 memory up to 3200 MT/s with a maximum capacity of 64GB across two DIMM slots, and features a PCIe 4.0 x16 slot, dual M.2 slots, six SATA ports, Realtek GbE LAN, D-Sub and DVI-D display outputs, and Q-Flash Plus for BIOS updates without a CPU.
Warranty, Exchange & Return Policy
Specifications
Details
The GIGABYTE B560M D2V Micro-ATX motherboard is the budget-friendly foundation for an office or home build based on Intel Core 11th and 10th Gen processors on LGA 1200. It offers full DDR4 support up to 3200 MT/s across two DIMM slots with a maximum capacity of 64GB, with Intel XMP and dual-channel mode support. It features a clean design with no RGB lighting, making it a suitable choice for businesses and practical users seeking stability without extra flair.
Key Highlights:
- LGA 1200 Socket with Intel B560 Chipset: Supports Intel Core 11th Gen (i9/i7/i5) and 10th Gen (i9/i7/i5/i3) processors plus Pentium and Celeron.
- DDR4 Memory up to 3200 MT/s: Two DIMM slots with 64GB maximum capacity (32GB per DIMM), Intel XMP and dual-channel mode support, and ECC Un-buffered support (operating in non-ECC mode).
- PCIe 4.0 x16 Slot: From an 11th Gen processor at double bandwidth for graphics cards, plus two PCIe 3.0 x1 slots for expansion.
- Dual M.2 Slots: M2P_CPU supports PCIe 4.0 x4/x2 (with an 11th Gen CPU), and M2A_SB supports PCIe 3.0 x4/x2 and SATA mode, both supporting 2260/2280 sizes.
- 6 × SATA 6Gb/s Ports: Provide extensive storage capacity for hard drives and traditional SSDs, with RAID 0/1/5/10 support.
- Realtek GbE LAN: At 1Gbps with the Realtek 8118 Gaming LAN bandwidth control utility, delivering stable wired networking for work, browsing, and streaming.
- Realtek 7.1-Channel Audio: High-definition multi-channel audio suited to gaming and media, with 7.1-channel configuration support via the audio software.
- D-Sub and DVI-D Display Outputs: Both support 1920×1200@60Hz, with dual-display support when using a CPU with integrated graphics.

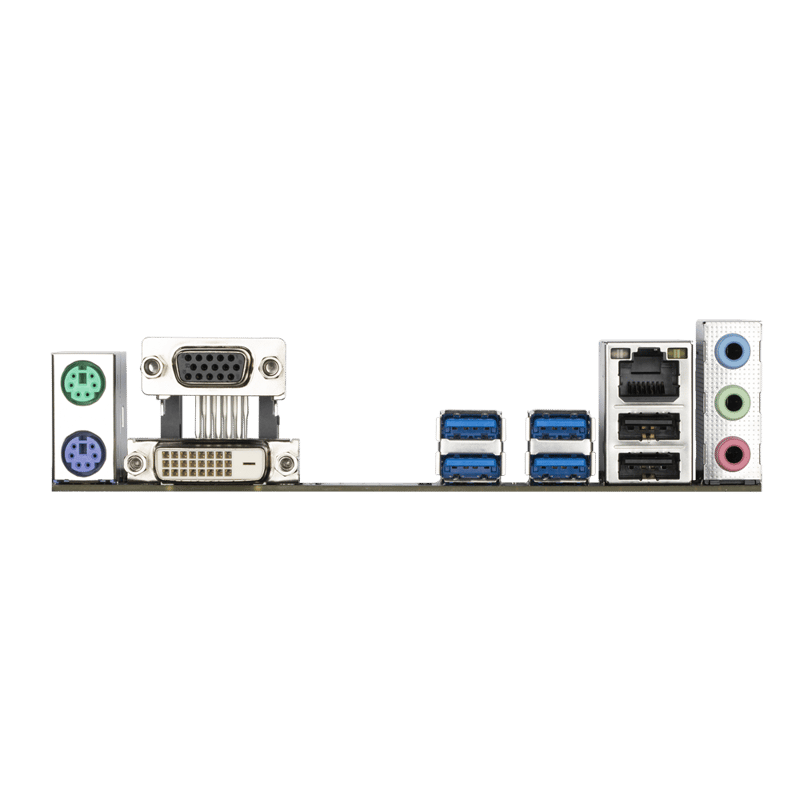

- Comprehensive USB Ports: 6 × USB 3.2 Gen 1 (4 rear, 2 via internal header) and 8 × USB 2.0/1.1 (2 rear, 6 via internal headers), with PS/2 keyboard and mouse ports.
- EZ DIY Design and Smart Cooling: Q-Flash Plus button for BIOS updates without CPU, memory, or graphics card, one CPU Fan header and one System Fan header, RGB Fusion support via a dedicated LED header and an addressable LED header, a TPM 2.0 header, and a serial port header for industrial applications.
