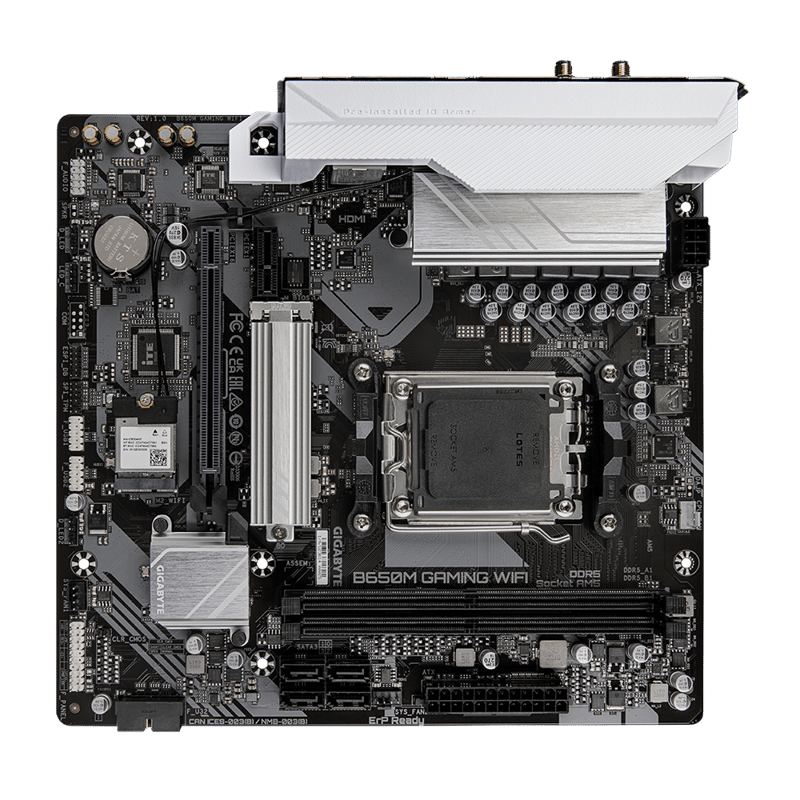

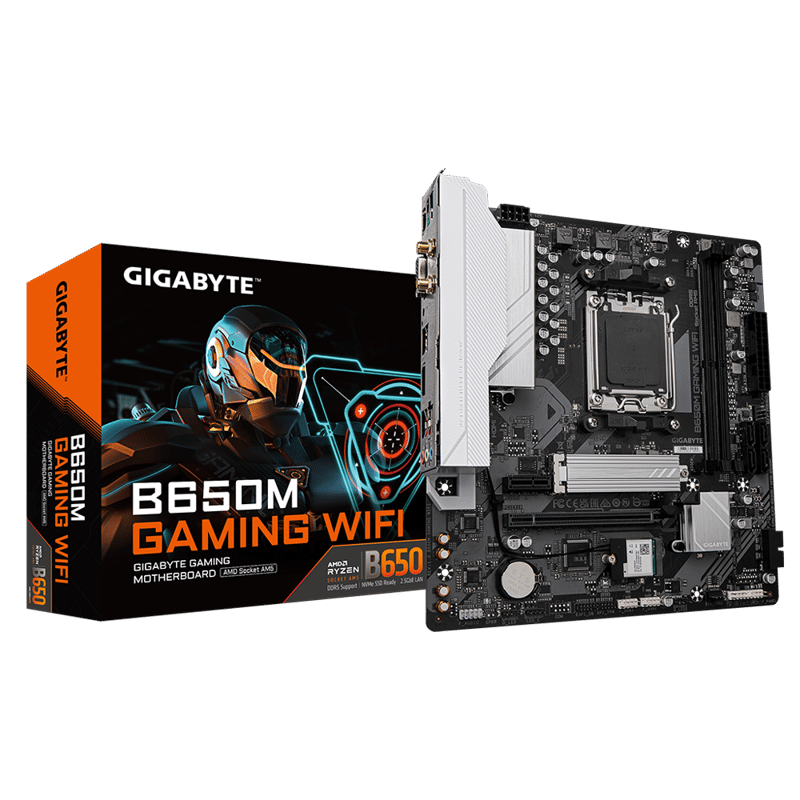

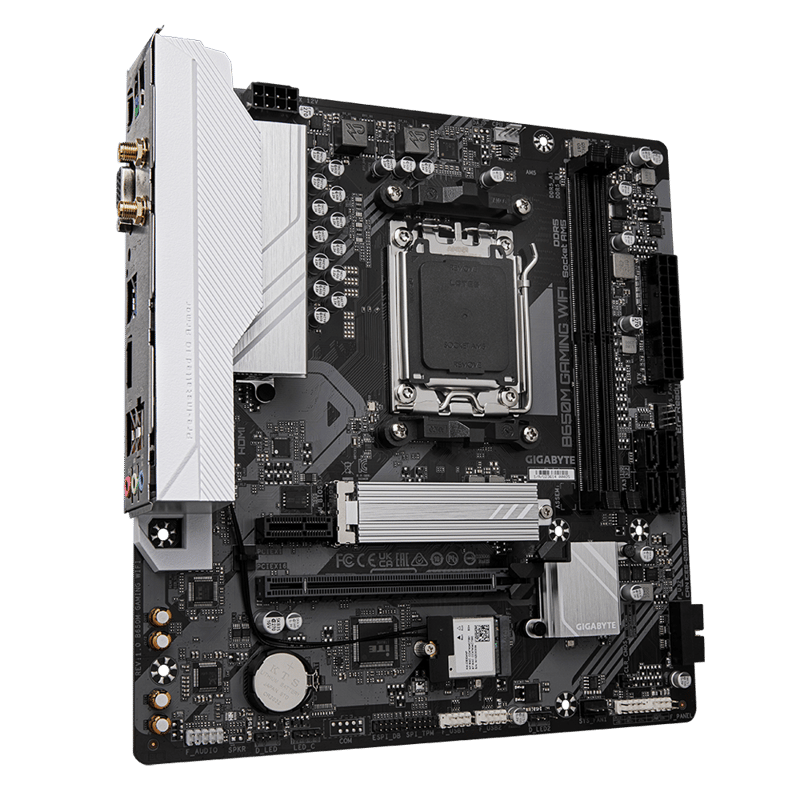

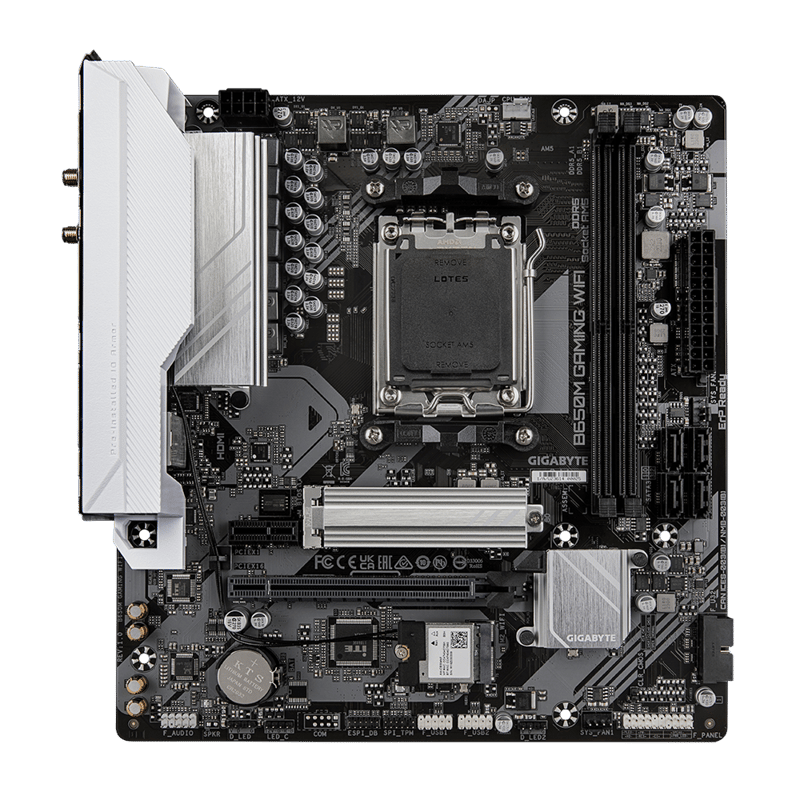

Gigabyte B650M GAMING WIFI AM5 Micro-ATX DDR5 Motherboard

The Gigabyte B650M GAMING WIFI arrives in a 24.0 × 22.5cm Micro-ATX frame, delivering a complete AM5 platform in a compact footprint. It runs the AMD B650 chipset with a single 8-pin CPU power connector and supports three Ryzen generations, making it a suitable base for a budget build with room to upgrade.

Key Highlights:

• Ryzen 7000, 8000, and 9000 Support: The AM5 socket accepts three CPU generations, keeping a processor upgrade path open without a board swap.
• DDR5 Up to 128GB: Two DIMM slots support speeds reaching 6400 MT/s (OC) with AMD EXPO and Intel XMP, accepting 1Rx8, 2Rx8, and 1Rx16 non-ECC Un-buffered modules.
• PCIe 4.0 x4 M.2 Connector: Connected directly to the CPU and accepting 2580 and 2280-length drives, speeding up boot and game or application loads.
• Four SATA 6Gb/s Ports: RAID 0, RAID 1, and RAID 10 support across SATA and NVMe drives lets you build arrays for speed or redundancy.
• Realtek 2.5GbE LAN: A 2.5-gigabit wired connection with bundled LAN bandwidth management software.
• Dual-Band Wi-Fi and Bluetooth 4.2: An AzureWave AW-CB304NF module (Realtek RTL8821CE) supports 802.11ac on 2.4 and 5GHz bands for daily wireless use.

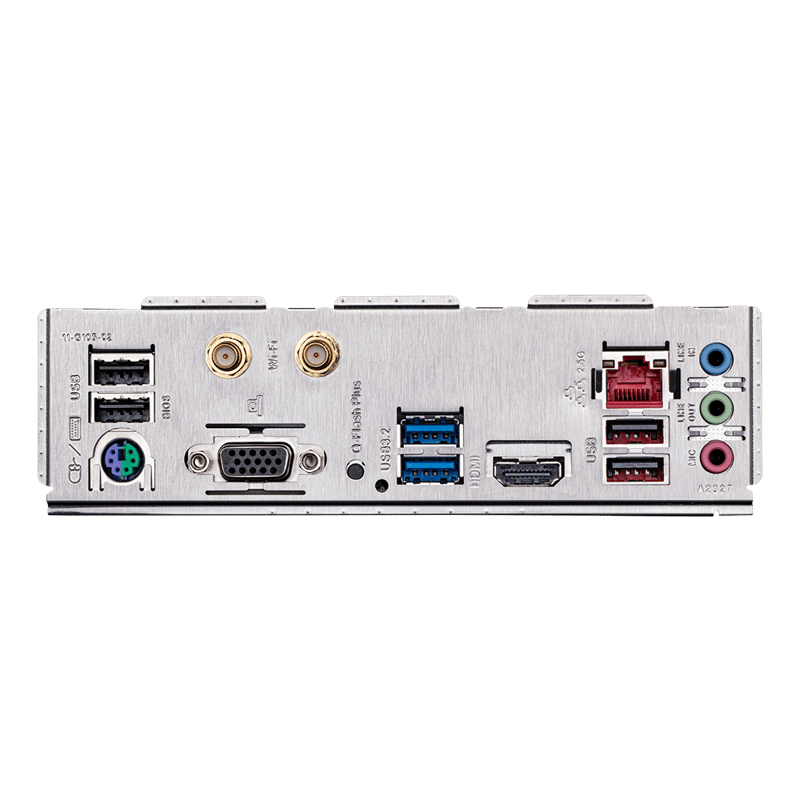

• Dual Display Outputs: HDMI 2.1 up to 4096×2160 @ 60Hz with HDCP 2.3 support, plus a D-Sub port at 1920×1200 @ 60Hz, active only with a CPU that has integrated graphics.
• Single 8-pin CPU Power: One CPU power connector alongside the 24-pin ATX main connector suits budget builds that do not draw heavy power.
• Convenient Update Tools: A Q-Flash Plus button updates BIOS without a CPU, memory, or graphics card, with traditional Q-Flash also supported.
• Expanded Monitoring: Voltage, temperature, fan speed, and water cooling flow rate detection, plus fan fail warnings and speed control through GIGABYTE Control Center.
