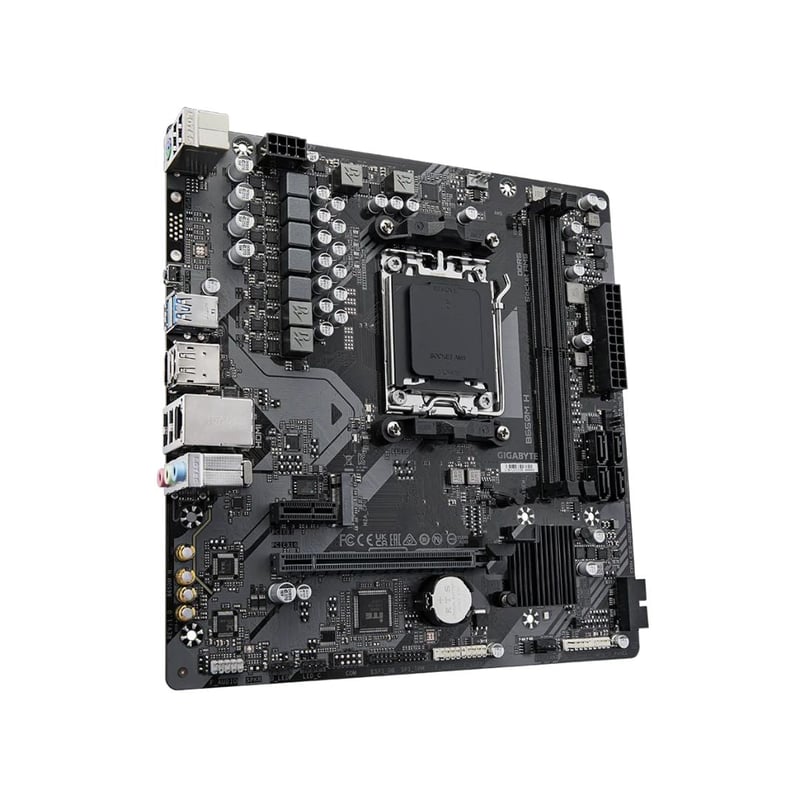

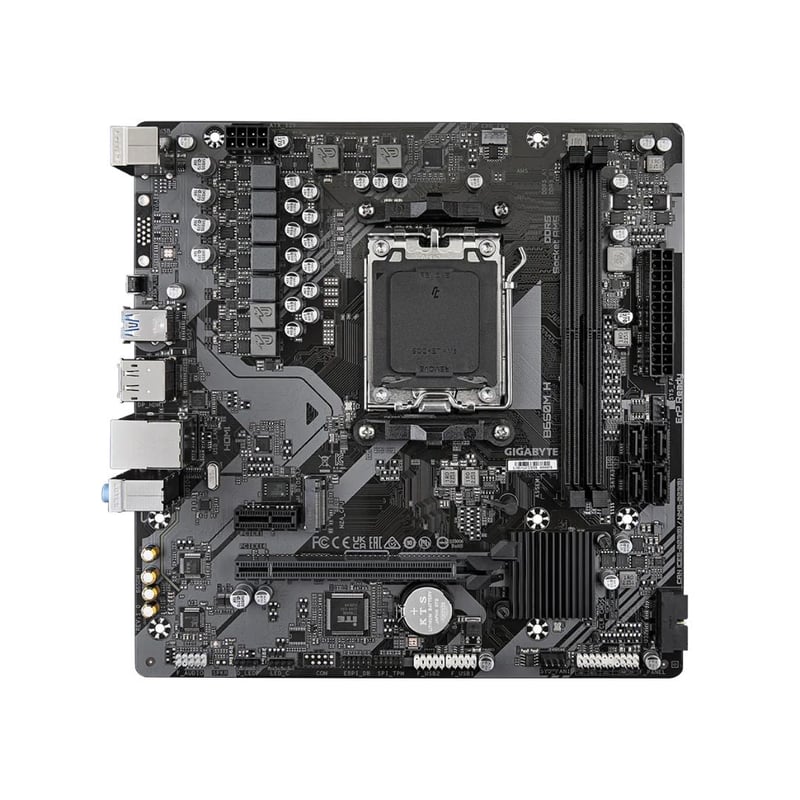

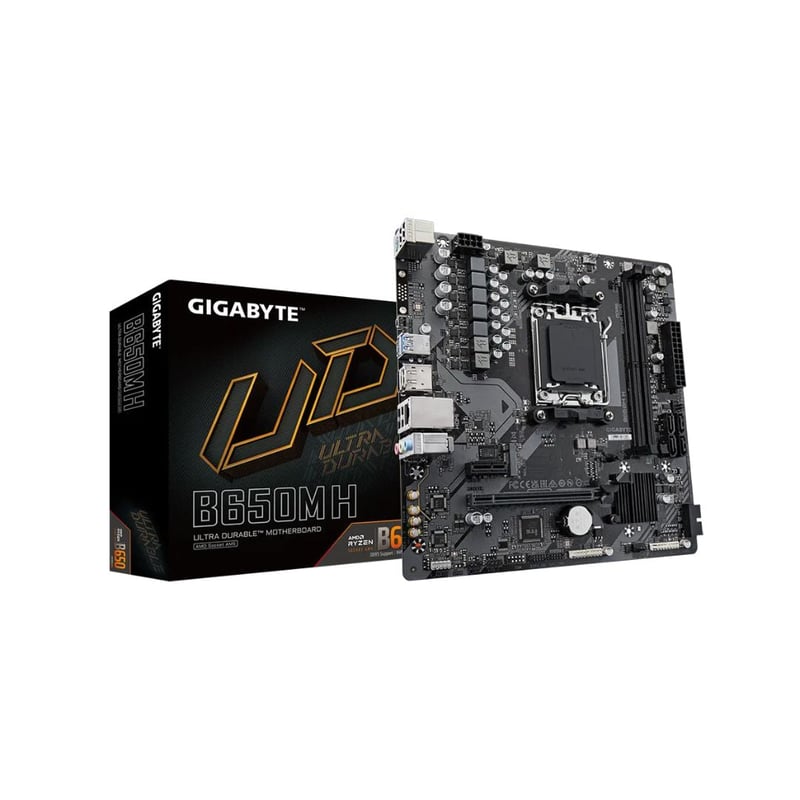

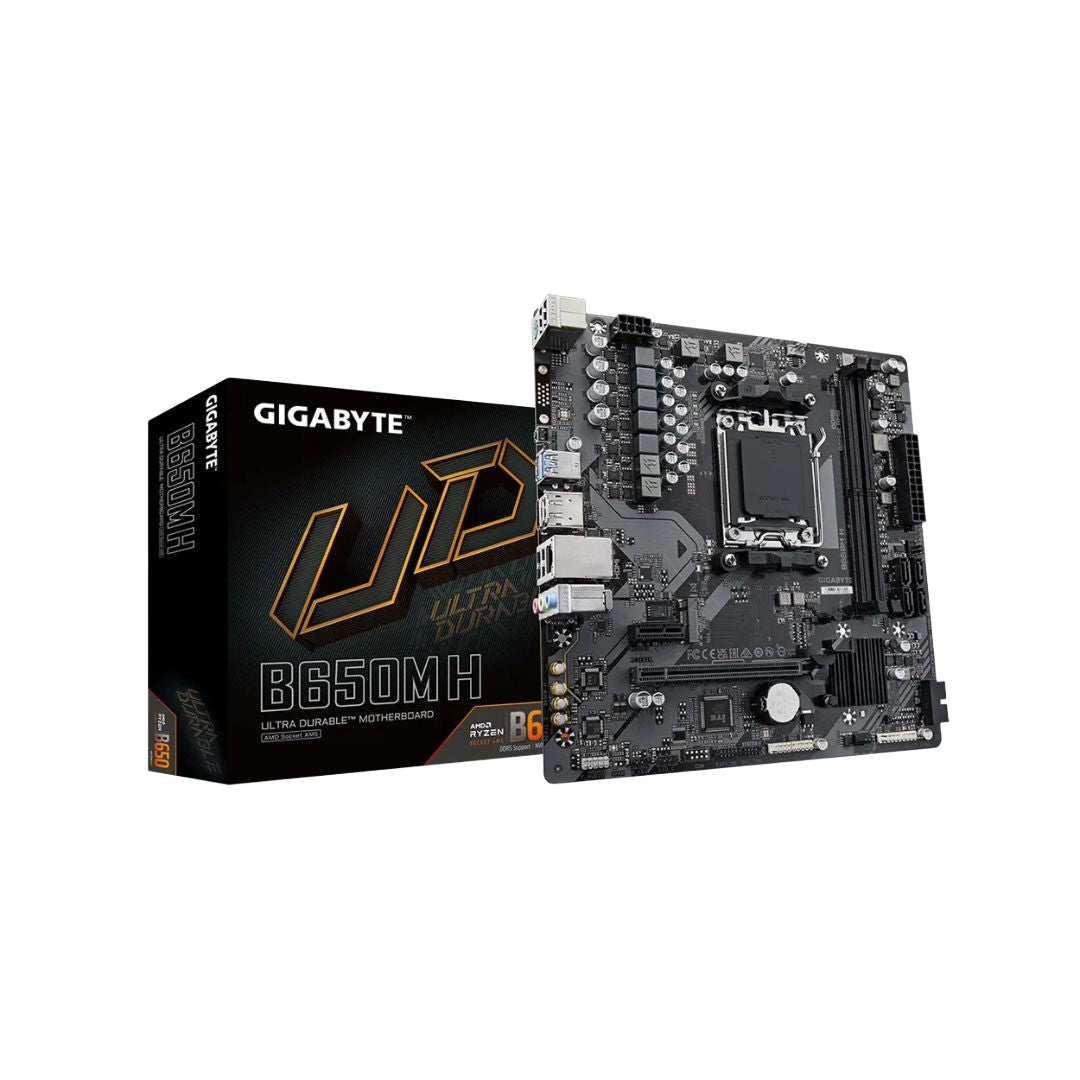

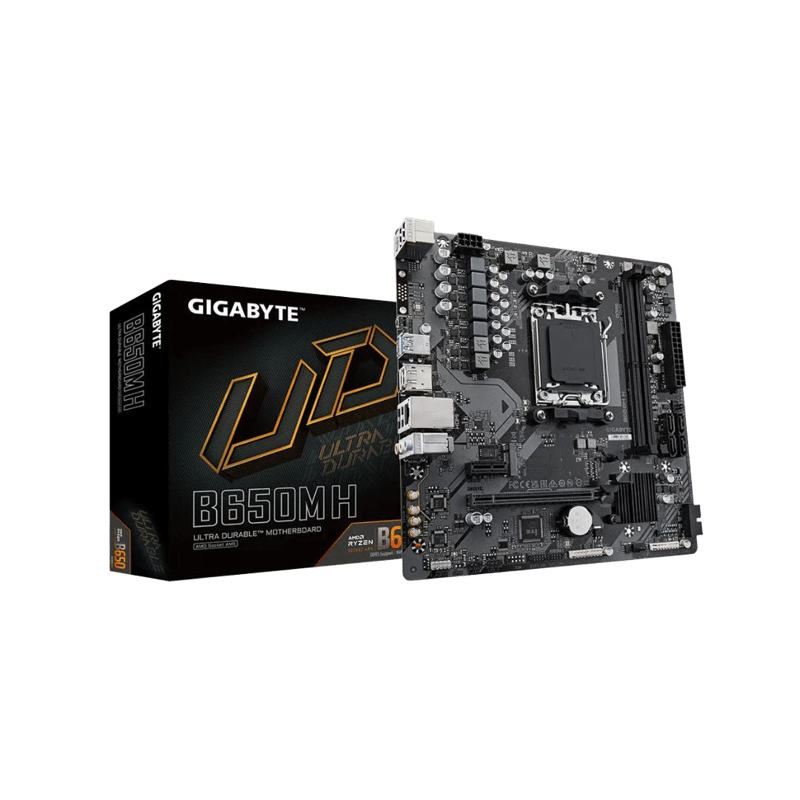

Gigabyte B650M H B650 AM5 Micro-ATX Motherboard
By GigabyteThe Gigabyte B650M H is a reliable Micro-ATX motherboard featuring the AMD B650 chipset, designed for socket AM5 processors with DDR5 memory support.
Warranty, Exchange & Return Policy
Specifications
Details
The Gigabyte B650M H motherboard is engineered to provide a solid foundation for your AMD Ryzen 7000, 8000, and 9000 series builds. It utilizes the AMD B650 chipset and a 5+2+2 phase digital VRM design to ensure robust power delivery for consistent system performance. This Micro-ATX board supports high-speed DDR5 memory, allowing for optimized multitasking and improved responsiveness. Featuring a PCIe 4.0 x4 M.2 connector, it provides fast storage speeds for modern NVMe SSDs. The board includes essential connectivity options, including a GbE LAN port for reliable networking and high-quality audio capacitors for immersive sound. Its user-friendly design features the EZ-Latch for easy graphics card removal and Q-Flash Plus for convenient BIOS updates without needing a CPU or RAM installed. This motherboard strikes a perfect balance between performance, affordability, and future-ready features for everyday and gaming PCs.
Specifications
- Chipset: AMD B650
- Socket: AM5
- Form Factor: Micro-ATX
- Memory: 2 x DDR5 DIMM slots, up to 128GB capacity
- Storage: 1 x M.2 PCIe 4.0, 4 x SATA 6Gb/s
- Networking: GbE LAN
- Audio: Realtek High Definition Audio
- Key Features: 5+2+2 phase digital VRM, EZ-Latch, Q-Flash Plus
