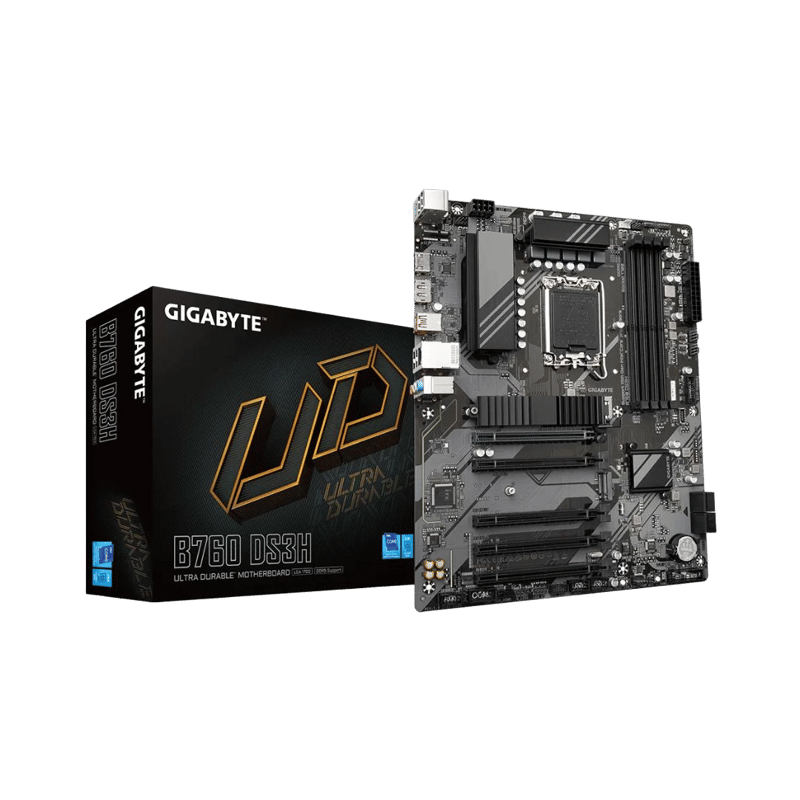

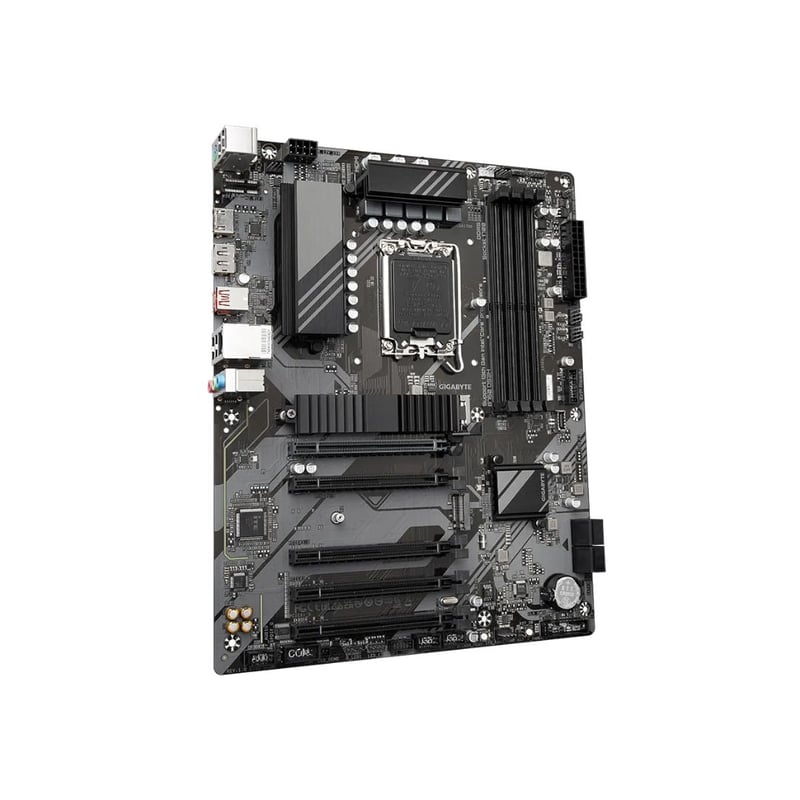

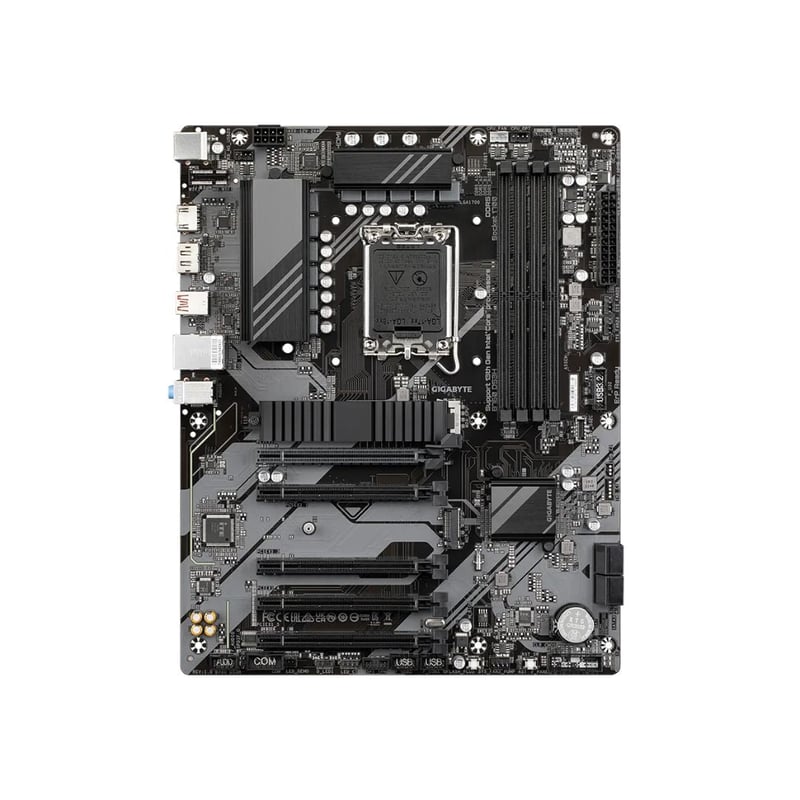

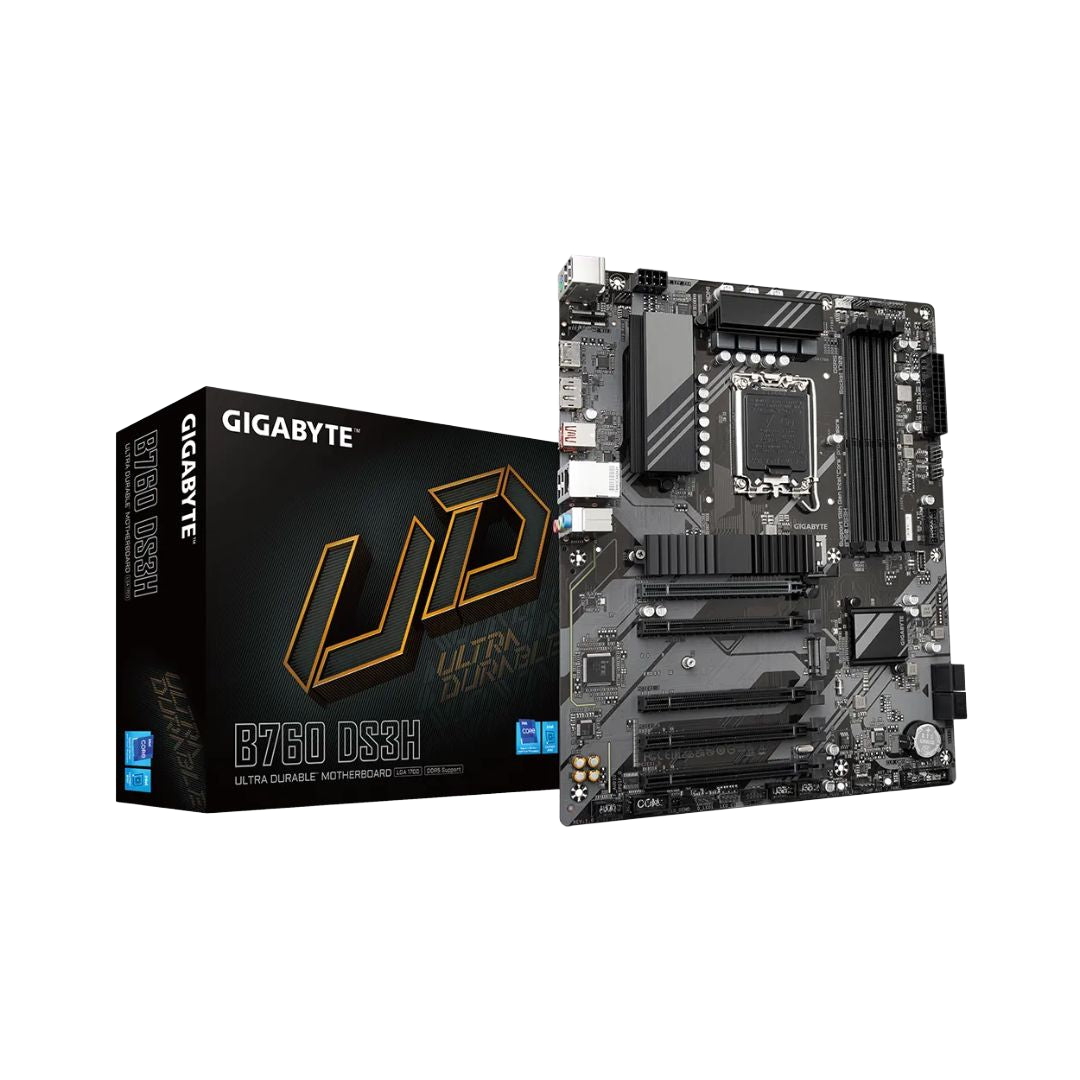

Gigabyte B760 DS3H DDR5 LGA1700 ATX Motherboard
By GigabyteReliable and high-performance ATX motherboard for Intel 12th, 13th, and 14th Gen processors, featuring DDR5 memory support and robust VRM design.
Warranty, Exchange & Return Policy
Specifications
Details
The Gigabyte B760 DS3H DDR5 is engineered to provide an exceptional foundation for your next Intel-based PC build. It fully supports the latest 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors, ensuring broad compatibility and future-proofing. The motherboard features an advanced 8+2+1 hybrid digital VRM design that delivers stable and reliable power to your CPU, even under heavy gaming or productivity workloads. With dual-channel DDR5 support across four DIMM slots, you can achieve high memory speeds and capacity to handle demanding multitasking and creative applications. Two PCIe 4.0 M.2 slots are included to provide lightning-fast storage performance for your NVMe SSDs, while thermal guards keep them running at optimal temperatures. Connectivity is robust, featuring USB 3.2 Gen 2x2 Type-C support for rapid data transfers and flexible peripheral connection. Smart Fan 6 technology with multiple temperature sensors and hybrid fan headers ensures your system stays cool and quiet under pressure. The integrated Q-Flash Plus button allows you to easily update the BIOS without needing to install a CPU, memory, or graphics card.
Specifications
- Socket: LGA1700 (Supports 12th/13th/14th Gen Intel Processors)
- Chipset: Intel B760 Express
- Memory: 4 x DDR5 DIMM slots (up to 256GB support)
- Storage: 2 x M.2 PCIe 4.0 slots, 4 x SATA 6Gb/s ports
- Form Factor: ATX
- VRM: 8+2+1 Hybrid Digital Power Design
- Networking: Realtek GbE LAN
- Expansion: PCIe 4.0 x16 slot with EZ-Latch
