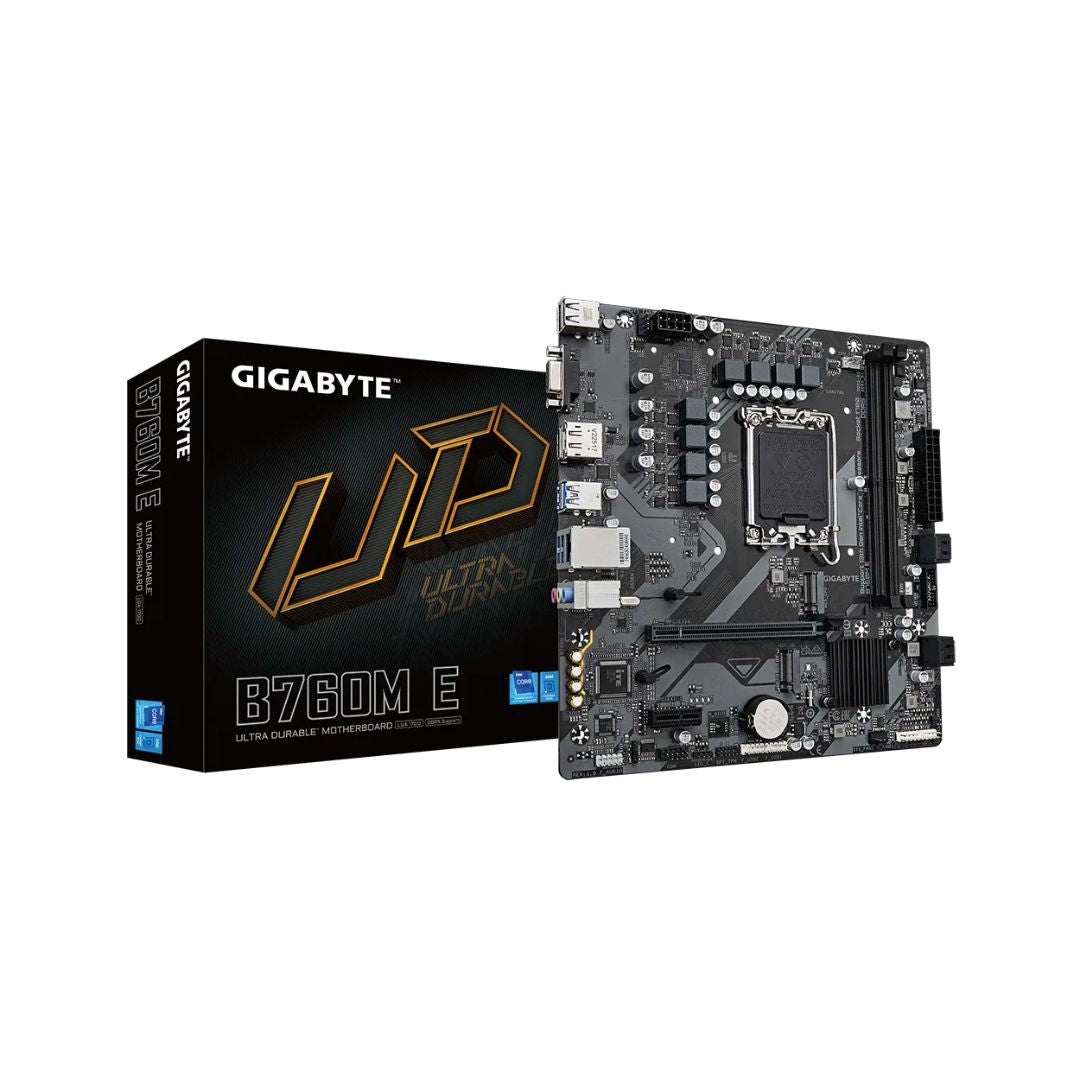

Gigabyte B760M-E Intel B760 LGA1700 Micro-ATX Motherboard

Motherboard Specification – Gigabyte B760M-E D5 • Chipset : Intel B760 • Form Factor : Micro-ATX • CPU Socket : LGA 1700 • Memory Support : Dual Channel DDR5, 2 x DIMM slots • Max Memory Capacity : Up to 96GB • Memory Speed : Up to 4800MHz (native), up to 7200MHz (OC) • Expansion Slots : – 1 x PCIe 4.0 x16 – 1 x PCIe 3.0 x1 • Storage Interface : – 2 x PCIe 4.0 x4 M.2 – 4 x SATA III 6Gb/s • Graphics Outputs : HDMI 2.1, DisplayPort, D-Sub • Audio : 8-Channel HD Audio with Audio Noise Guard • LAN : 1 x Gigabit Ethernet (Realtek GbE LAN) • USB Ports : – Rear: USB 3.2 Gen 1, USB 2.0 – Internal Headers: USB 3.2 Gen 1, USB 2.0 • Cooling Features : Smart Fan 6, Hybrid Fan Headers, FAN STOP • RGB Support : 1 x RGB LED Header • BIOS : UEFI BIOS with Q-Flash • EZ-Latch : PCIe slot quick-release design • Compatibility : Supports Intel 12th, 13th, and 14th Gen Core processors
