GIGABYTE B860M EAGLE WIFI6 LGA 1851 DDR5 Micro-ATX Motherboard
CPU LGA1851 socket: Support for Intel ® Core™ Ultra Processors (Go to GIGABYTE’s website for the latest CPU support list.) L3 cache varies with CPU Chipset Intel ® B860 Express Chipset Memory Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB si
Warranty, Exchange & Return Policy
Specifications
Details

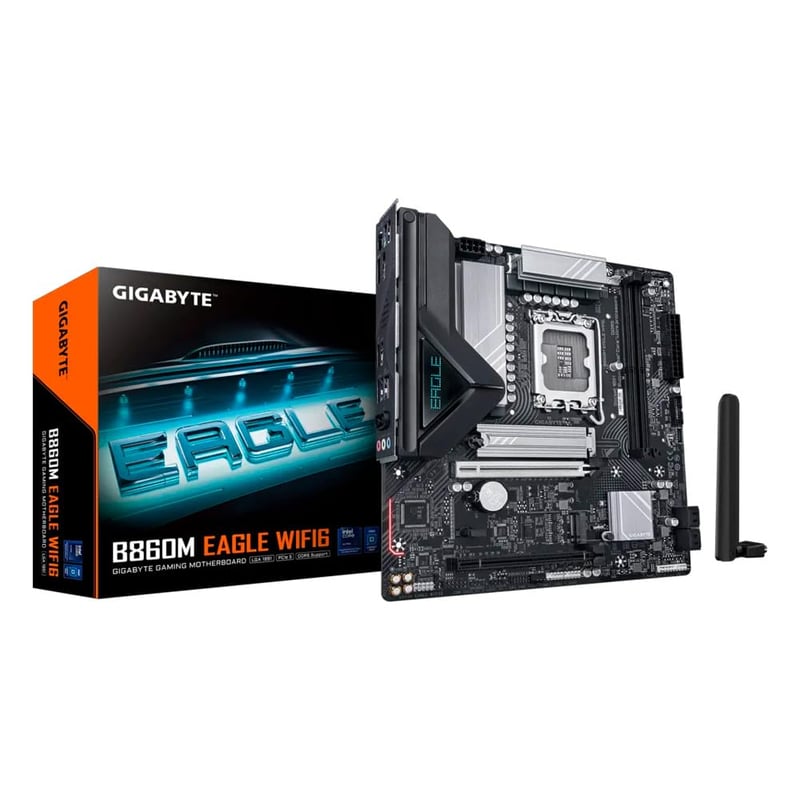

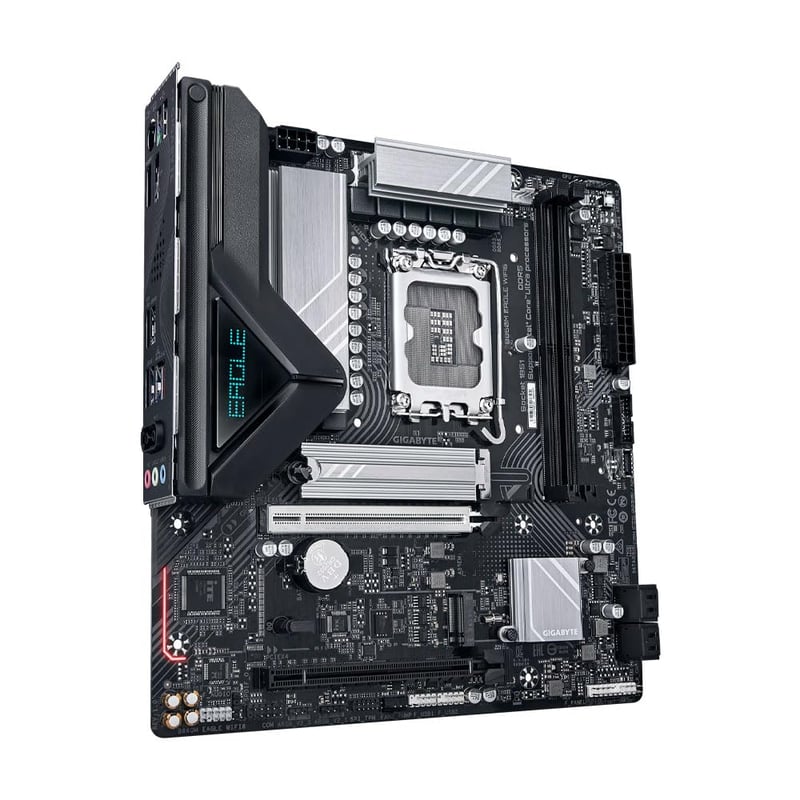

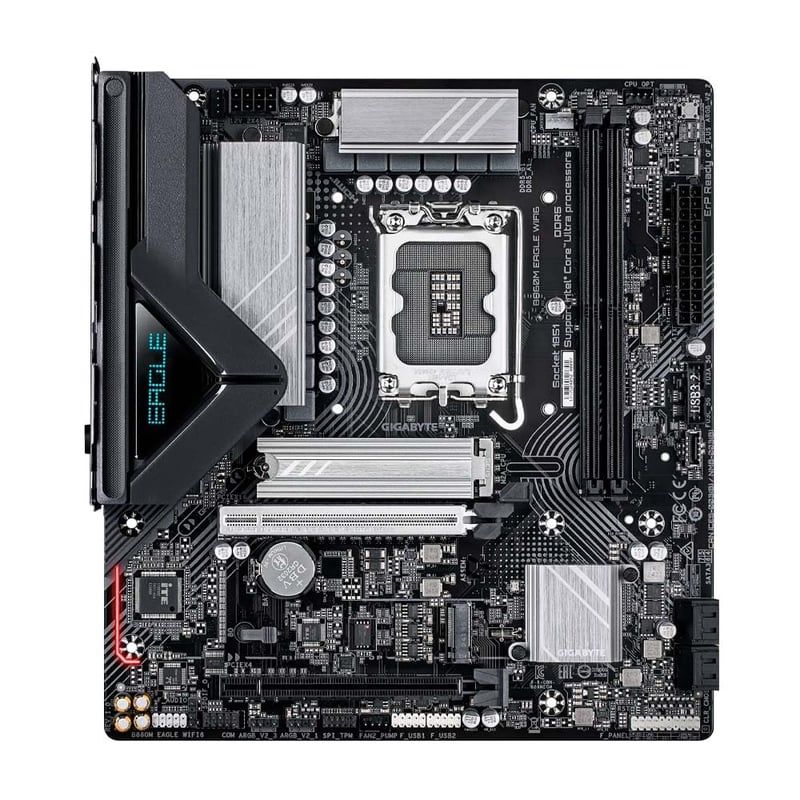

The GIGABYTE B860M EAGLE WIFI6 micro-ATX motherboard offers a feature-rich, high-value platform engineered to unleash the power of Intel Core Ultra processors on the LGA 1851 socket. Combining high-speed DDR5 memory architecture, next-gen PCIe 5.0 expansion, and user-friendly EZ-DIY features, this motherboard is an ideal foundation for modern compact gaming setups and daily workstations.
Key Highlights & Specifications:
- Intel LGA 1851 Socket: Fully optimized to support Intel Core Ultra (Series 2) processors for efficient multi-core processing and low power consumption.
- Dual DDR5 Memory Slots: Features 2x DDR5 DIMM slots supporting Dual-Channel memory with D5 Bionic Corsa AI overclocking technology and Intel XMP 3.0 profile integration.
- Next-Gen PCIe 5.0 Expansion: Outfitted with a primary PCIe 5.0 x16 slot reinforced with a PCIe UD Slot design and a PCIe EZ-Latch mechanism for quick GPU release.
- Gen5 M.2 NVMe Storage Support: Includes a primary M.2 slot operating on PCIe 5.0 x4 lanes protected by M.2 Thermal Guard heatsinks, alongside a secondary PCIe 4.0 x4 M.2 slot.
- High-Speed Wireless & Wired Networking: Equipped with onboard Wi-Fi 6 with a WIFI EZ-Plug antenna connector and an Ultra-high gain antenna, paired with a fast 2.5GbE LAN controller.
- Hassle-Free EZ-DIY Construction: Simplifies PC building with tool-less M.2 EZ-Latch Plus/Click mechanisms and a Q-Flash Plus button for driverless BIOS updates.
- 6+1+2 Digital VRM & Advanced Cooling: Built with a 6+1+2 digital power delivery system wrapped in VRM Thermal Armor Advanced heatsinks, managed by Smart Fan 6 thermal control software.

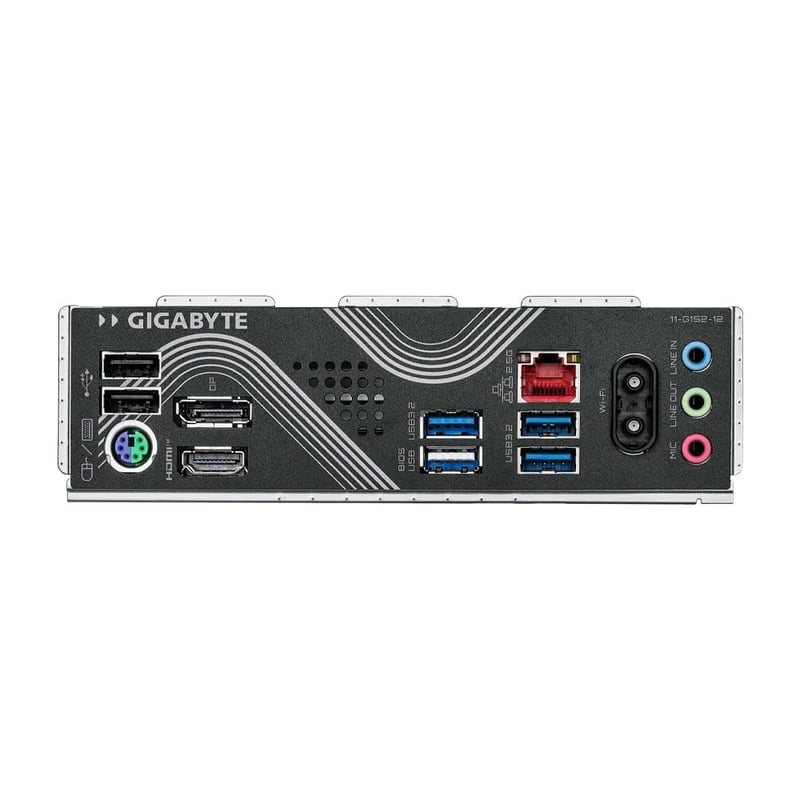

- Comprehensive Connectivity: Outfitted with DisplayPort and HDMI video outputs, USB 3.2 Gen 1 Type-A ports, a Front Panel USB-C header, and standard HD audio connectivity.
