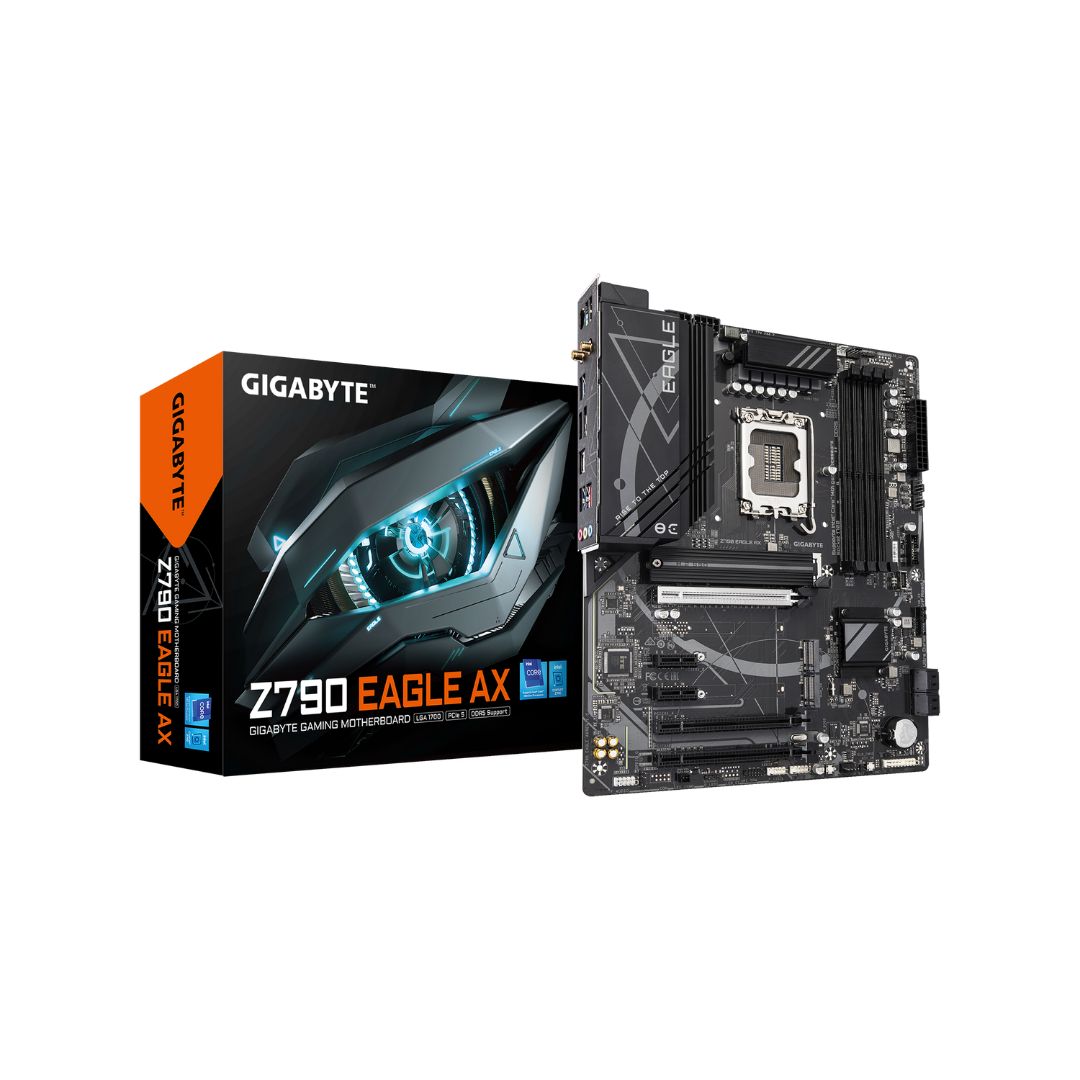

Gigabyte Eagle Z790 ATX Motherboard LGA1700 DDR5
By
300,000IQD
In Stock
The Gigabyte Eagle Z790 ATX motherboard provides a reliable performance foundation for Intel Core processors on the LGA1700 socket. Featuring four DDR5 memory slots supporting up to 256GB, onboard WiFi connectivity, and three M.2 slots, it delivers fast memory throughput and flexible storage options for gaming and workstation builds.
Warranty, Exchange & Return Policy
Specifications
SocketLga1700
ChipsetIntel Z790
M.2 Slots3
SATA Ports4
Form FactorAtx
Memory TypeDdr5
Memory Slots4
BluetoothNo
Max Memory (GB)256 GB
RGB LightingYes
WiFiYes
Details
Motherboard – Gigabyte Z790 EAGLE AX (WiFi 6E) Chipset : Intel Z790 Socket : LGA1700 – Supports 14th / 13th / 12th Gen Intel Core, Pentium Gold, and Celeron processors Form Factor : ATX Memory • 4 x DDR5 DIMM slots – up to 256GB • Dual channel architecture • Supports speeds up to 7600MT/s (OC) • Intel XMP 3.0 support Graphics • 1 x HDMI 2.1 (4096x2160@60Hz) • 1 x DisplayPort 1.2 (4096x2304@60Hz) • Integrated graphics support (depends on CPU) Audio • Realtek HD Audio Codec • 2/4/5.1/7.1-channel support • Optical S/PDIF out Networking • Realtek 2.5GbE LAN • Intel Wi-Fi 6E AX211 (2.4/5/6GHz) • Bluetooth 5.3 Expansion Slots • 1 x PCIe 5.0 x16 • 1 x PCIe 4.0 x4 • 2 x PCIe 3.0 x1 Storage • 4 x M.2 PCIe 4.0 x4 • 4 x SATA III 6Gb/s • RAID 0/1/5/10 support USB Ports • Rear: USB 3.2 Gen2 Type-C, USB 3.2 Gen2 Type-A, USB 3.2 Gen1, USB 2.0 • Internal: USB 3.2 Gen1, USB 2.0, USB Type-C header Cooling & Features • Smart Fan 6 • Enlarged MOSFET heatsinks • M.2 Thermal Guard • EZ-Latch PCIe & M.2 • Q-Flash Plus • RGB Fusion – Addressable LED headers
SocketLga1700
ChipsetIntel Z790
M.2 Slots3
SATA Ports4
Form FactorAtx
Memory TypeDdr5
Memory Slots4
BluetoothNo
Max Memory (GB)256 GB
RGB LightingYes
WiFiYes
