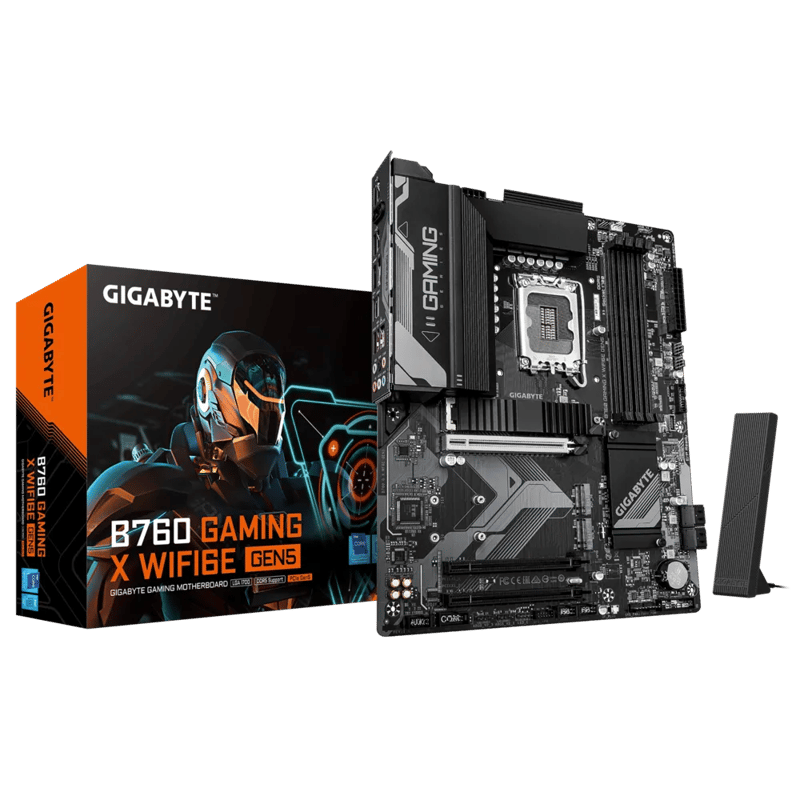

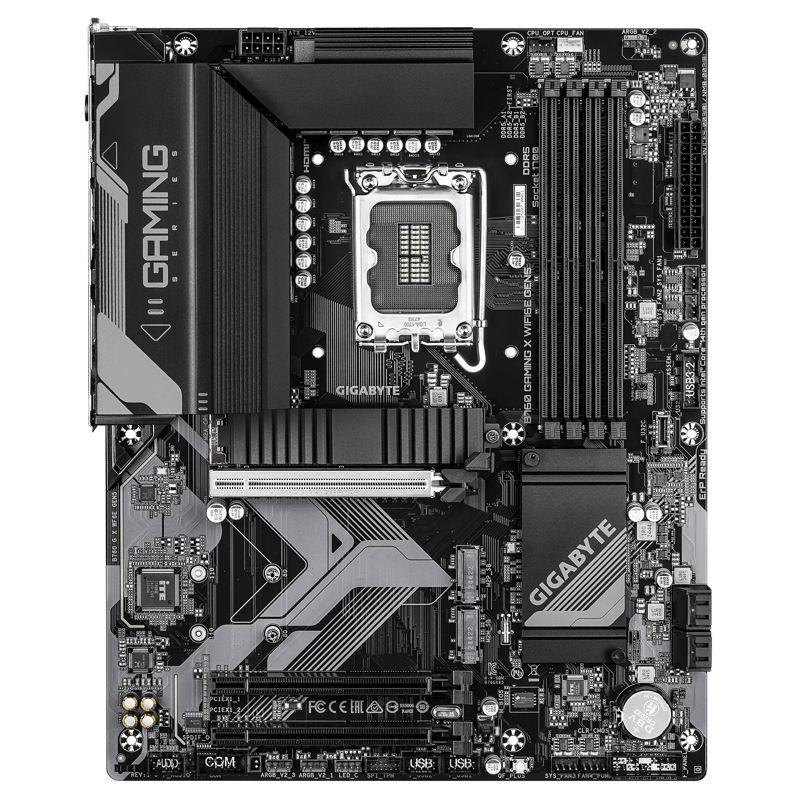

Gigabyte Gaming X B760 LGA1700 ATX DDR5 Motherboard

CPU Support Socket: LGA1700 Supports: 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors L3 cache varies by CPU Refer to GIGABYTE’s website for full CPU compatibility Chipset Intel® B760 Express Chipset Memory 4 × DDR5 DIMM slots (Dual Channel) Up to 256 GB system memory (64 GB per DIMM) Supported Speeds: 14th/13th Gen Core™ i9/i7: DDR5 5600/5200/4800/4400 MT/s 13th Gen Core™ i5/i3 & 12th Gen Core™/Pentium®/Celeron®: DDR5 4800/4400 MT/s Supports: ECC Un-buffered DIMMs (non-ECC mode) Non-ECC Un-buffered DIMMs Intel XMP Memory Modules Memory type/speed may vary by CPU and configuration Graphics (Integrated, CPU-dependent) DisplayPort 1.2: Max resolution 4096×2304 @ 60Hz (HDCP 2.3) HDMI 2.1: Max resolution 4096×2160 @ 60Hz (HDCP 2.3, native TMDS) Graphics availability and performance depend on the processor Audio Realtek® Audio CODEC High Definition Audio, 2/4/5.1/7.1-channel S/PDIF Out support Audio jack function customizable via software LAN & Wireless LAN: Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) Wi-Fi: Intel® Wi-Fi 6E AX210 Bands: 2.4/5/6 GHz Bluetooth® 5.3 11ax 160MHz wireless support Actual data rate may vary Expansion Slots CPU Linked: 1 × PCIe x16 (PCIe 5.0 x16) Chipset Linked: 2 × PCIe x16 (PCIe 3.0 x1) Storage Interfaces CPU: 1 × M.2 (M2A_CPU) – PCIe 4.0 x4/x2 (22110/2280) Chipset: 2 × M.2 (M2P_SB, M2M_SB) – PCIe 4.0 x4/x2 (22110/2280) 4 × SATA 6Gb/s Supports RAID 0, 1, 5, 10 (SATA only) USB Ports Back Panel: 1 × USB 3.2 Gen 2 Type-A (Red) 1 × USB 3.2 Gen 1 Type-C 1 × USB 3.2 Gen 1 Type-A 5 × USB 2.0/1.1 Internal Headers: 1 × USB 3.2 Gen 2 Type-C 1 × USB 3.2 Gen 1 2 × USB 2.0 (4 ports) Internal I/O Connectors 1 × 24-pin ATX main power 1 × 8-pin ATX 12V 1 × CPU fan header 1 × CPU/water pump fan header 3 × System fan headers 1 × System/water pump fan header 3 × Addressable RGB Gen2 headers 1 × RGB LED header 3 × M.2 Socket 3 connectors 4 × SATA 6Gb/s connectors 1 × Front panel header 1 × Front panel audio header 1 × S/PDIF Out header 1 × TPM header 1 × USB 3.2 Gen 2 Type-C header 1 × USB 3.2 Gen 1 header 2 × USB 2.0 headers 1 × Serial port header 1 × Q-Flash Plus button 1 × Reset jumper 1 × Clear CMOS jumper Back Panel I/O 1 × USB 3.2 Gen 2 Type-A (Red) 1 × USB 3.2 Gen 1 Type-C 1 × USB 3.2 Gen 1 Type-A 5 × USB 2.0/1.1 2 × Wi-Fi Antenna Connectors 1 × DisplayPort 1 × HDMI 1 × RJ-45 LAN Port 6 × Audio Jacks I/O Controller iTE® Controller Chip Monitoring & Control Voltage/Temperature/Fan/Flow rate monitoring Fan fail warning Smart fan/pump speed control Control support may vary by device BIOS 1 × 256 Mbit Flash AMI UEFI BIOS Supports: PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 Unique Features GIGABYTE Control Center (GCC) Q-Flash & Q-Flash Plus Smart Backup Bundled Software Norton® Internet Security (OEM) Operating System Support Windows 11 64-bit Windows 10 64-bit Form Factor ATX (30.5 cm × 24.4 cm) available In Iraq
