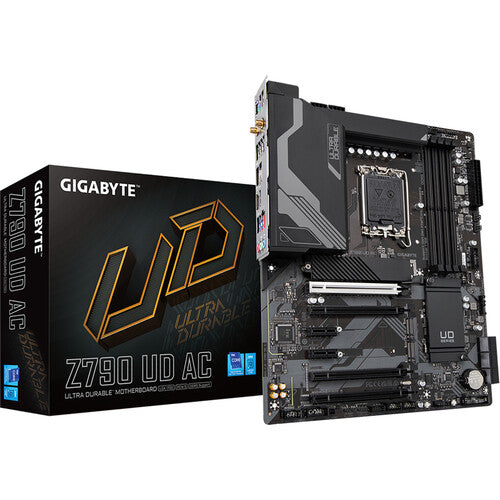

Gigabyte UD AC Z790 DDR5 LGA1700 ATX Motherboard

Socket: LGA 1700 for 13th/12th Gen Intel Core CPUs Chipset: Intel Z790; ATX form factor (305 × 244 mm) VRM: 16+1+1 twin hybrid phases with 60 A DrMOS; fully covered heatsinks + heatpipe + 5 W/mK thermal pad :contentReference[oaicite:1]{index=1} Memory: 4× DDR5 DIMM slots, dual‑channel, ECC/non‑ECC, OC to 7600 MT/s; up to 192 GB :contentReference[oaicite:2]{index=2} PCIe: 1× PCIe 5.0 ×16 (reinforced EZ‑Latch); 2× PCIe 3.0 ×16 (×4 wired) + 2× PCIe 3.0 ×1 slots :contentReference[oaicite:3]{index=3} Storage: 3× M.2 slots (1× PCIe 4.0×4 w/ Thermal Guard, 2× PCIe 4.0×4); 6× SATA 6 Gb/s with RAID support :contentReference[oaicite:4]{index=4} Rear I/O: 1× USB‑C 3.2 Gen2x2, 1× USB‑A 3.2 Gen2, 4× USB 3.2 Gen1, 4× USB 2.0; HDMI 2.1 + DisplayPort; PS/2; 2.5 GbE LAN; Wi‑Fi 5 (Intel AC9560) + BT 5.1 :contentReference[oaicite:5]{index=5} Front headers: USB‑C Gen1, 2× USB 3.2 Gen1, 2× USB 2.0, SPDIF :contentReference[oaicite:6]{index=6} Audio: Realtek HD 7.1‑channel codec, high-end caps, Audio Noise Guard :contentReference[oaicite:7]{index=7} Cooling & durability: Fully covered MOSFET heatsinks with heatpipe; PCIe 5.0 armor; integrated I/O shield :contentReference[oaicite:8]{index=8} DIY & utility features: Q‑Flash Plus, PCIe EZ‑Latch, Multi-Key switches (mode/reset/RGB/BIOS), onboard power/reset buttons, EZ‑Debug LEDs :contentReference[oaicite:9]{index=9} RGB fusion: 2× ARGB + 2× RGB headers; Smart Fan 6 support :contentReference[oaicite:10]{index=10} Support: DDR5 XMP, PCIe 5.0 GPUs & SSDs, RAID for SATA/NVMe :contentReference[oaicite:11]{index=11} Operating features: Robust build quality, thermals, and IO for modern systems :contentReference[oaicite:12]{index=12}
