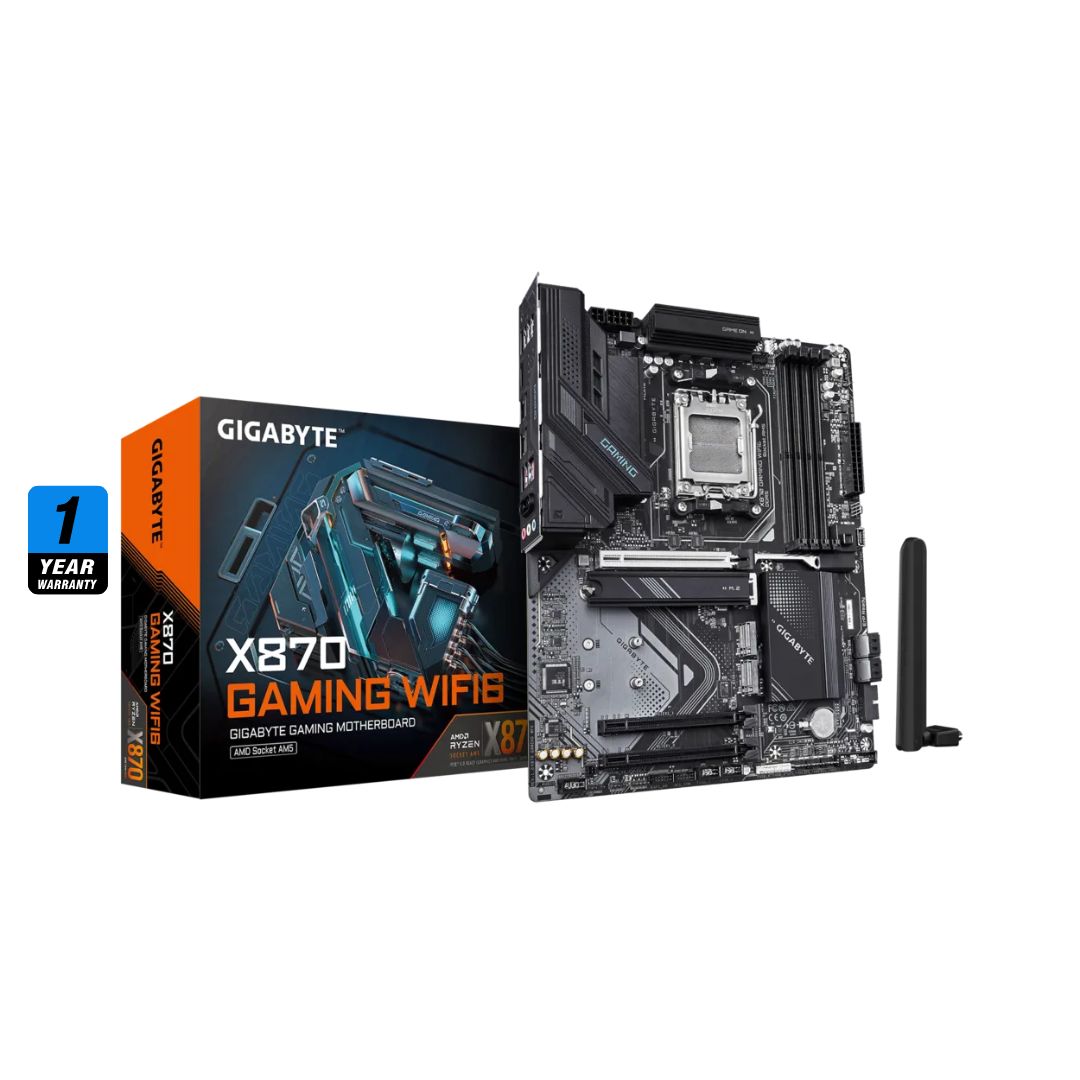

Gigabyte X870 Gaming WiFi 6 AM5 DDR5 ATX Motherboard
By Gigabyte375,000IQD
In Stock
Warranty, Exchange & Return Policy
Specifications
M.2 Slots3
Memory Slots4
Memory TypeDdr5
Max Memory (GB)256 GB
Form FactorAtx
ChipsetX870
SocketAm5
SATA Ports4
RGB LightingYes
WiFiYes
Details
Motherboard Specification • Model : Gigabyte X870 GAMING WIFI6 (rev. 1.x) • Socket : AMD AM5 – supports Ryzen™ 9000 / 8000 / 7000 Series CPUs • Chipset : AMD X870 • Memory Support : – 4 × DDR5 DIMM slots (up to 256GB total) – Speeds: DDR5 4800 to 8200 MT/s (OC) – Dual channel architecture – Supports AMD EXPO™ and Intel XMP profiles • Graphics Support : – Integrated AMD Radeon™ Graphics (depends on CPU) – 1 × HDMI 2.1 port (4096×2160 @60Hz) – 2 × USB4 Type-C ports with DisplayPort 1.4 (3840×2160 @240Hz) • Expansion Slots : – 1 × PCIe x16 (CPU-controlled) • PCIe 5.0 x16 for Ryzen 9000/7000 • PCIe 4.0 x8/x4 for Ryzen 8000 Phoenix • Storage Interface : – Supports NVMe SSDs via PCIe slot • Audio : Realtek® High Definition Audio – 2/4/5.1/7.1-channel • Networking : – Realtek® 2.5GbE LAN – Realtek® Wi-Fi 6 RTL8851BE (2.4/5 GHz) – Bluetooth 5.3 • USB Ports : – USB4, USB 3.2 Gen 2, USB 2.0 (varied internal and rear I/O) • Form Factor : ATX
M.2 Slots3
Memory Slots4
Memory TypeDdr5
Max Memory (GB)256 GB
Form FactorAtx
ChipsetX870
SocketAm5
SATA Ports4
RGB LightingYes
WiFiYes
