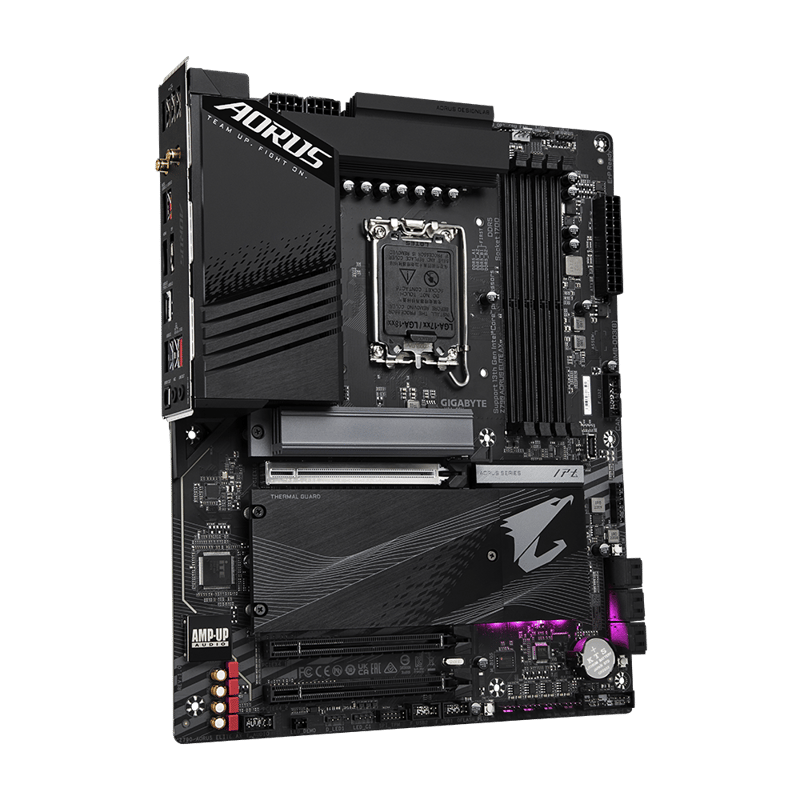

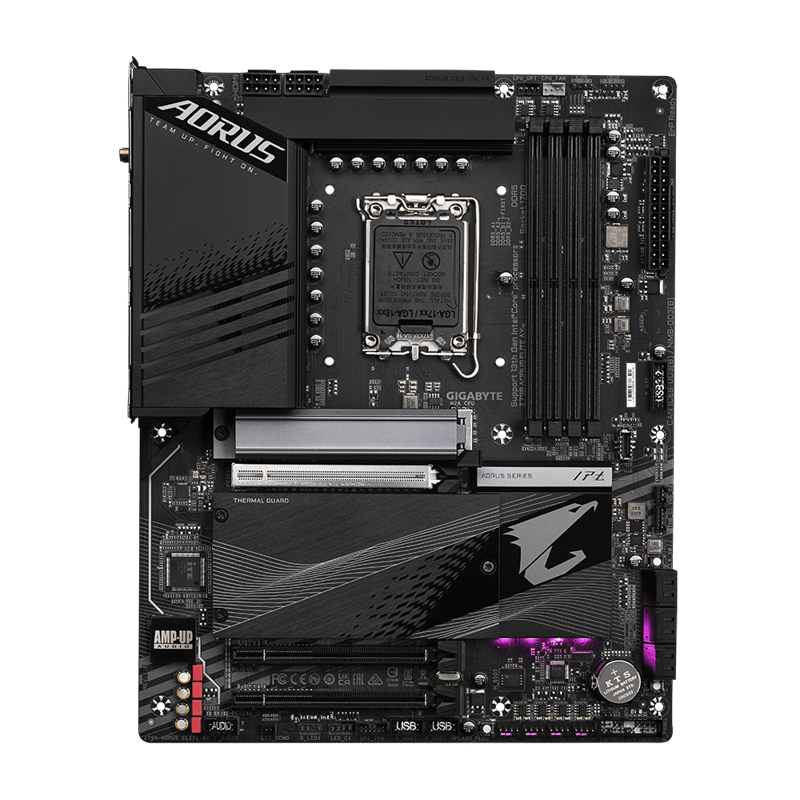

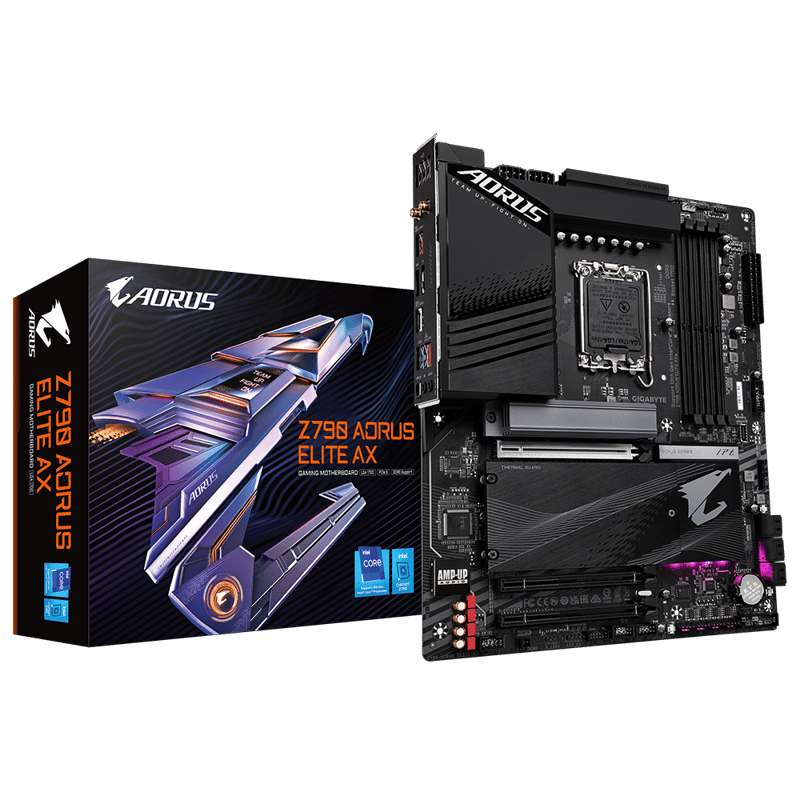

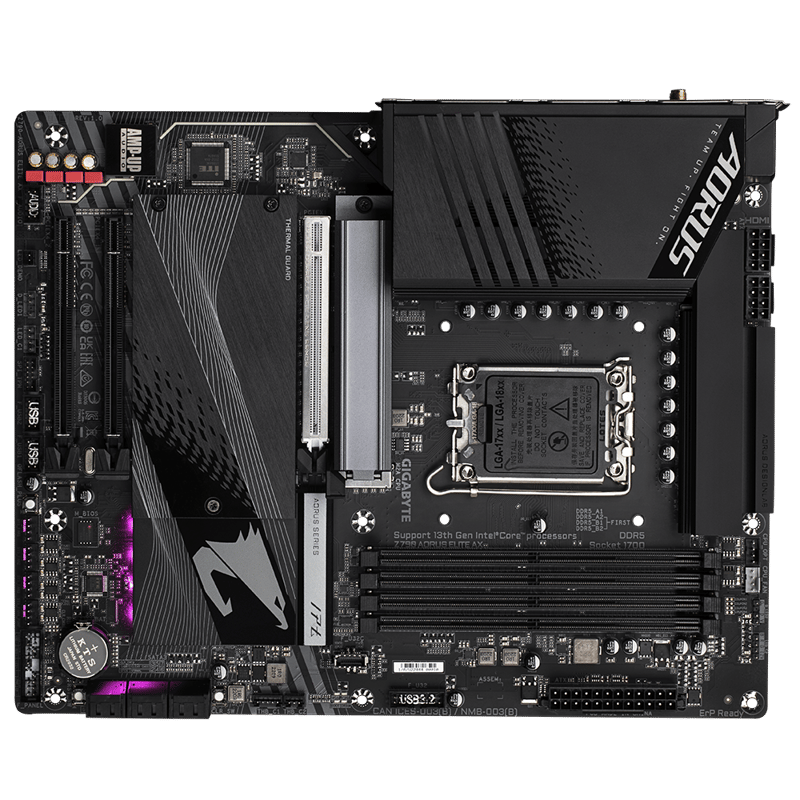

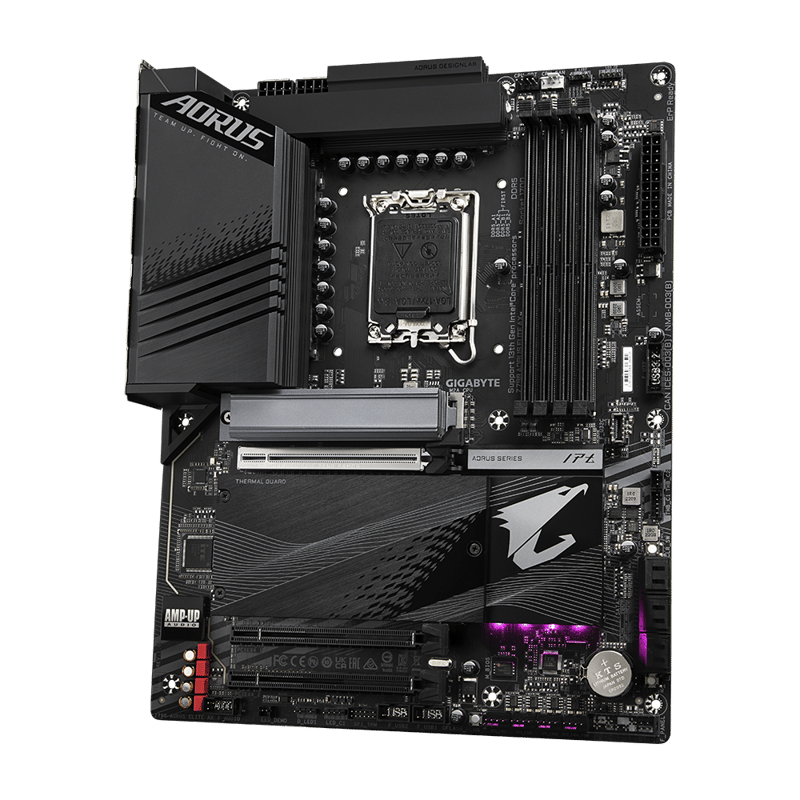

GIGABYTE Z790 AORUS ELITE AX LGA 1700 ATX Motherboard DDR5 PCIe 5.0 Wi-Fi 6E
The GIGABYTE Z790 AORUS ELITE AX ATX motherboard is built for Intel Core 14th, 13th, and 12th Gen processors on LGA 1700, delivering a robust foundation for gaming and professional builds. It features a Twin 16+1+2 power design with 70A Smart Power Stage and a 6-layer PCB, supporting DDR5 memory up to 7600+ MT/s (OC) with a maximum capacity of 128GB. It includes a PCIe 5.0 x16 slot, four M.2 slots, 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.3, and audiophile-grade WIMA audio.
Warranty, Exchange & Return Policy
Specifications
Details
The GIGABYTE Z790 AORUS ELITE AX ATX motherboard is the robust foundation for a gaming or workstation build based on Intel Core 14th, 13th, and 12th Gen processors on LGA 1700. Part of the AORUS series built for high performance, it features a black design with customizable RGB lighting. It runs on a Twin 16+1+2 Digital VRM design with 70A Smart Power Stage and a 6-layer 2X Copper PCB, ensuring stable, clean power delivery to the CPU even under overclocking loads.
Key Highlights:
- LGA 1700 Socket with Intel Z790 Chipset: Supports Intel Core 14th, 13th, and 12th Gen processors plus Pentium Gold and Celeron, with Turbo Boost and overclocking support.
- Twin 16+1+2 Digital VRM Design: With 70A Smart Power Stage per phase, delivering stable, clean power with fully covered MOSFET heatsinks, a 6mm heatpipe, and 7.5 W/mK thermal pads.
- DDR5 Memory up to 7600+ MT/s (OC): Four DIMM slots with 128GB maximum capacity, supporting XMP 3.0, DDR5 Auto Booster, and ECC Un-buffered modules.
- PCIe 5.0 x16 Slot: Offering up to 128GB/s bandwidth with Ultra Durable armor and EZ-Latch for easy GPU removal.
- Four PCIe 4.0 x4 M.2 Slots: With M.2 Thermal Guard III and enlarged heatsinks, supporting RAID 0/1/5/10.
- Realtek 2.5GbE LAN: Up to 2.5Gbps speed for reduced latency and improved connection stability.
- Wi-Fi 6E and Bluetooth 5.3: With AORUS high-gain antenna, supporting 2.4/5/6 GHz bands at speeds up to 2.4Gbps.
- Realtek High-Definition Audio with WIMA Capacitors: Delivers 7.1-channel studio-grade audio with high-end audio capacitors.
- EZ DIY Design and Smart Fan 6: Q-Flash Plus button for BIOS updates without CPU, 5 PWM/DC fan headers, and RGB Fusion 2.0 support.
