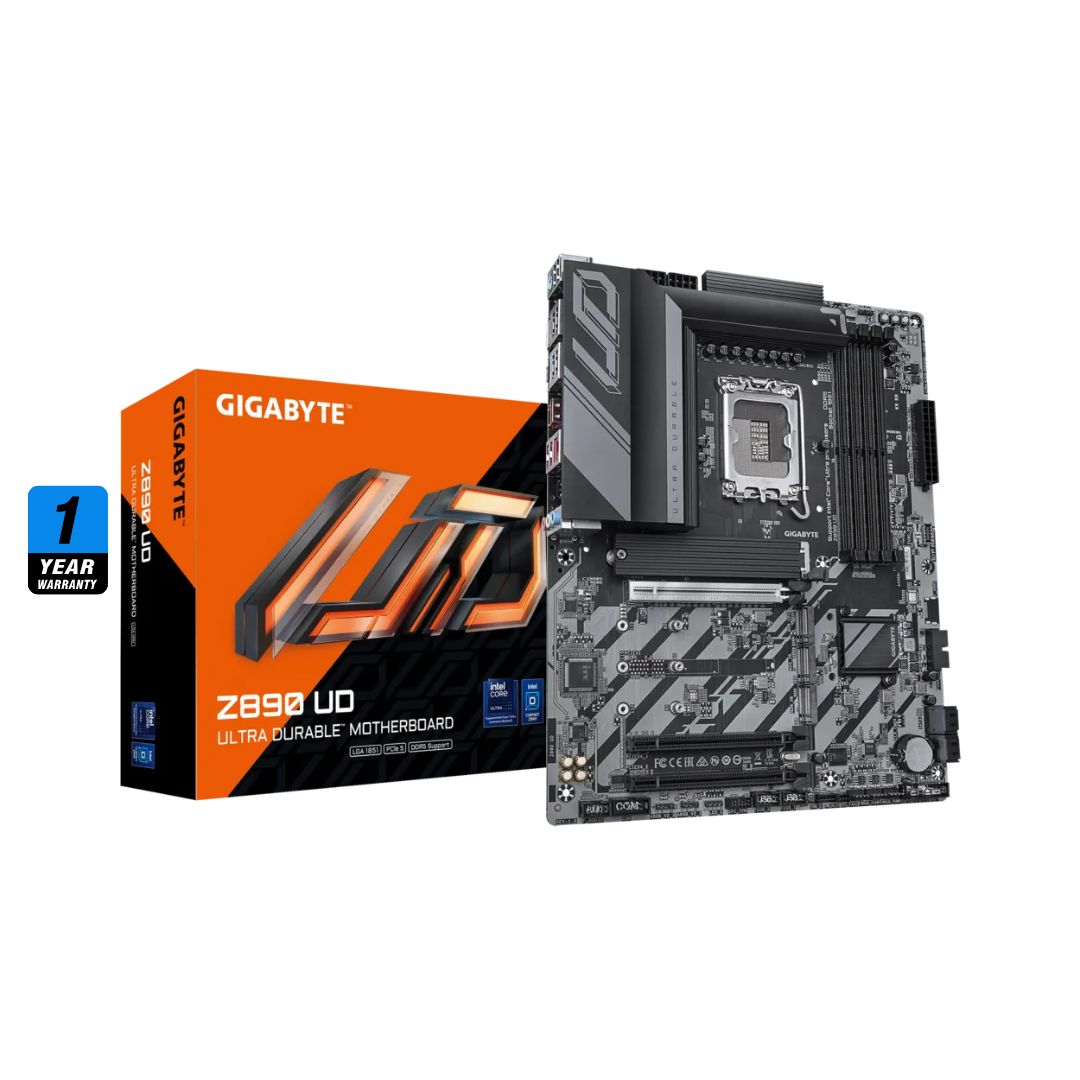

Gigabyte Z890 UD ATX Motherboard LGA1851 DDR5

Motherboard Specification • Processor Support : LGA1851 socket, supports Intel® Core™ Ultra Processors • Chipset : Intel® Z890 Express • Memory Support : 4 x DDR5 DIMM slots, up to 256GB Supports up to 9200MT/s (OC) ECC (non-ECC mode), XMP & CUDIMM supported Dual channel architecture • Graphics Ports : 1 x USB4® Type-C® – up to 3840x2160@144Hz 1 x DisplayPort 2.1 – up to 3840x2160@144Hz (Graphics support depends on CPU) • Expansion Slots : 1 x PCIe 5.0 x16 2 x PCIe 4.0 x4 (from chipset) • Storage : 2 x M.2 (CPU) – PCIe 5.0 x4 & PCIe 4.0 x4 2 x M.2 (Chipset) – PCIe 4.0 x4 and PCIe 4.0 x4/SATA 4 x SATA 6Gb/s RAID 0/1/5/10 for NVMe and SATA • Ethernet : Realtek® 2.5GbE LAN • Wireless & Bluetooth : Not included • USB : Back Panel 1 x USB4® Type-C® 1 x USB 3.2 Gen2 Type-A 4 x USB 3.2 Gen1 4 x USB 2.0 1 x PS/2 Internal 1 x USB-C Gen1 1 x USB 3.2 Gen1 header 2 x USB 2.0 headers (4 ports) 2 x Thunderbolt add-in headers • Audio : Realtek® HD Audio, 7.1-channel, supports S/PDIF Out • Internal I/O Connectors : 2 x 8-pin + 1 x 24-pin power 4 x M.2, 4 x SATA USB-C, USB 3.2 Gen1, USB 2.0 ARGB & RGB headers, TPM, COM, power, reset, Q-Flash Plus • Back Panel I/O Ports : 1 x USB4® Type-C® 1 x USB 3.2 Gen2 Type-A 4 x USB 3.2 Gen1 4 x USB 2.0 1 x DisplayPort 1 x PS/2 1 x RJ-45 3 x Audio jacks • Form Factor : ATX, 30.5cm x 24.4cm
