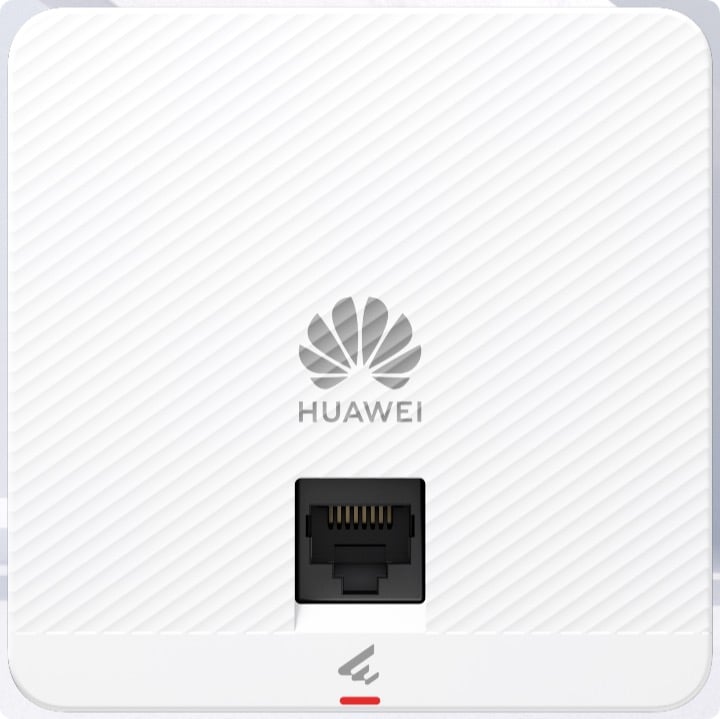

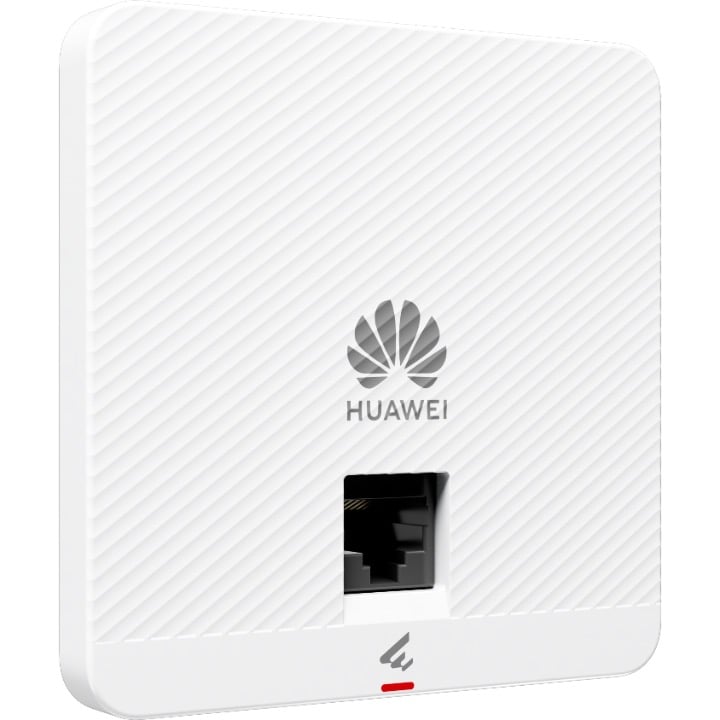

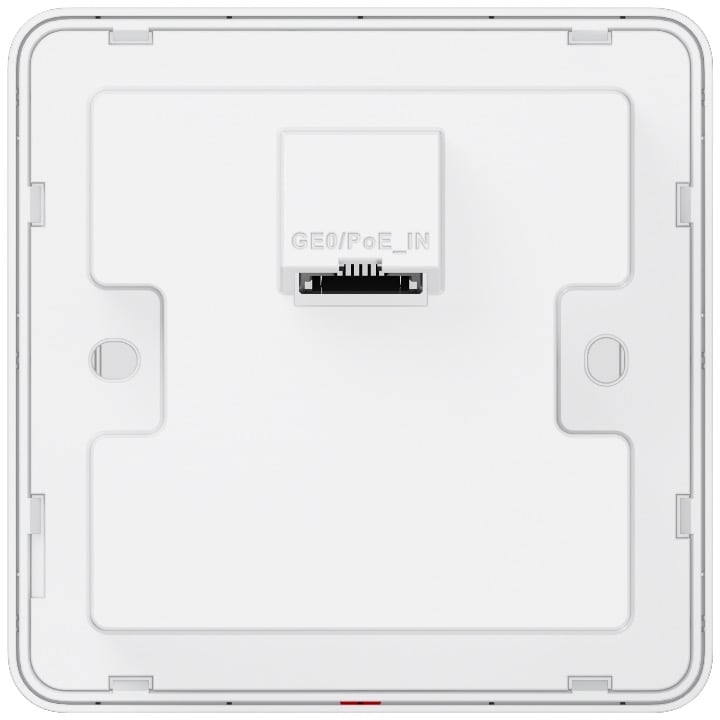

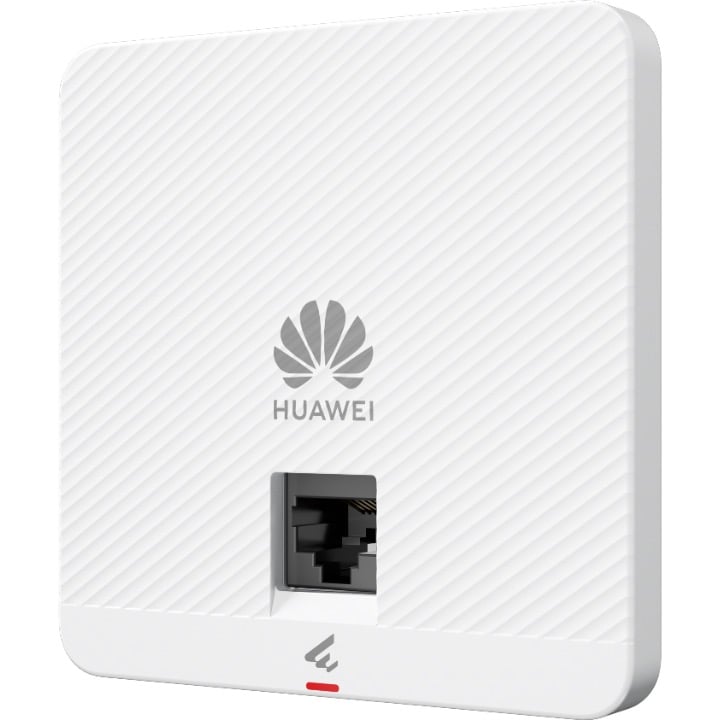

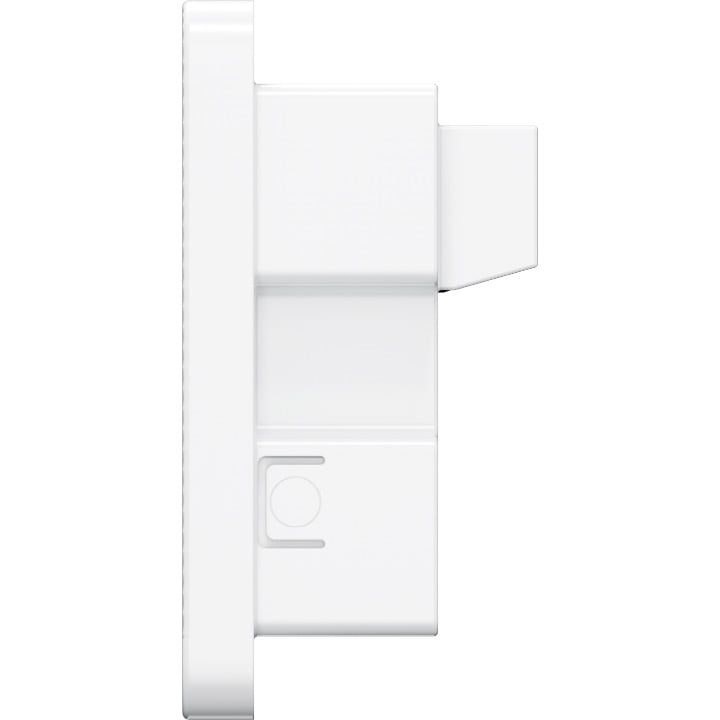

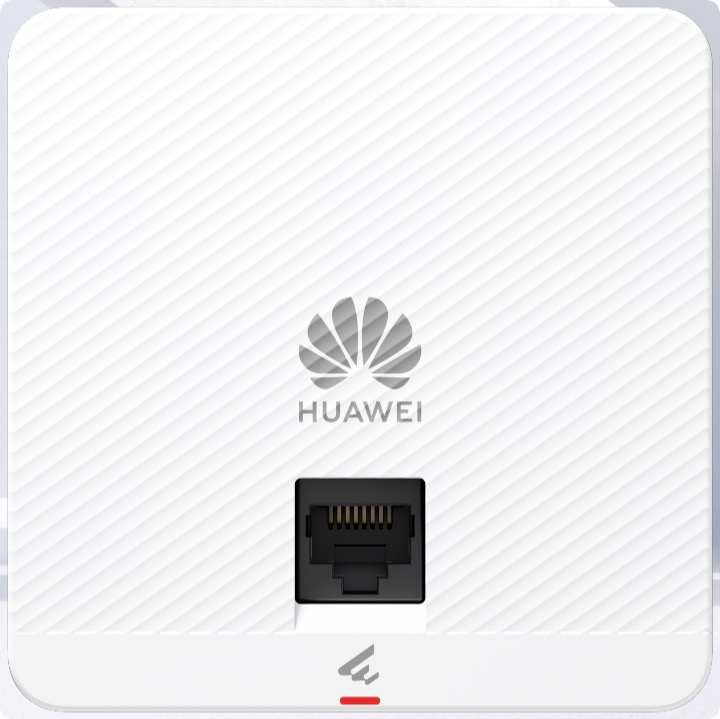

Huawei eKitEngine AP162E AX3000 Wi-Fi 6 Wall Plate Access Point White
By HuaweiThe Huawei eKitEngine AP162E is an ultra-thin, Wi-Fi 6 wall-plate access point designed for high-performance connectivity in hotels, offices, and small spaces. It features dual-band support and smart antenna technology to deliver combined speeds of up to 2.975 Gbps.
Warranty, Exchange & Return Policy
Specifications
Details
The Huawei eKitEngine AP162E is a specialized wall-plate access point built to meet the high-density connectivity demands of modern hospitality, retail, and office environments. By leveraging the advanced IEEE 802.11ax (Wi-Fi 6) standard, it ensures improved user capacity, reduced latency, and efficient bandwidth management. The device features a compact, internationally standardized 86x86 mm design, allowing for an aesthetic and unobtrusive installation that integrates seamlessly into any interior decor.
With its dual-band 2x2 MIMO architecture, the AP162E provides high-speed wireless services across both 2.4 GHz and 5 GHz frequency bands, achieving a cumulative data transmission rate of up to 2.975 Gbps. Advanced technologies such as 1024-QAM and intelligent smart antenna array optimization enhance signal quality and coverage, ensuring a stable and uninterrupted user experience. The unit is powered via PoE, simplifying deployment, and can be managed through various flexible methods including the intuitive HUAWEI eKit App, EasyWeb, or professional network controllers. This robust device also incorporates enterprise-grade security features like WPA3 authentication to protect sensitive network data.
Specifications
- Wi-Fi Standard: Wi-Fi 6 (802.11ax)
- Max Data Rate: 2.975 Gbps
- Wi-Fi Band: Dual-band (2.4 GHz + 5 GHz)
- MIMO: 2x2 MIMO on both bands
- Ethernet Port: 1x 1GbE (Uplink), 1x 1GbE (Downlink)
- Power Supply: PoE (IEEE 802.3af)
- Dimensions: 86 x 86 x 42.5 mm
- Security: WPA3, 802.1X, DTLS, PMF
