MSI B650 GAMING PLUS WIFI AM5 ATX DDR5 Motherboard

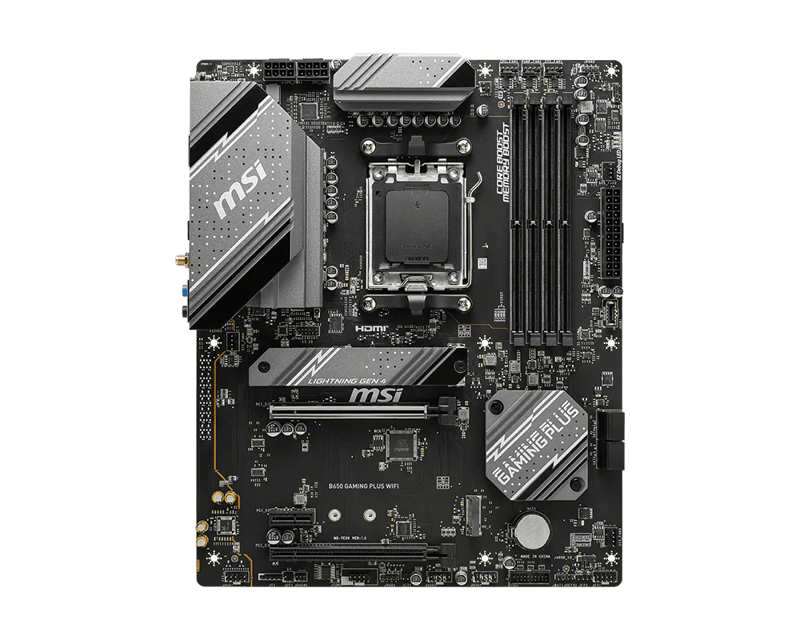

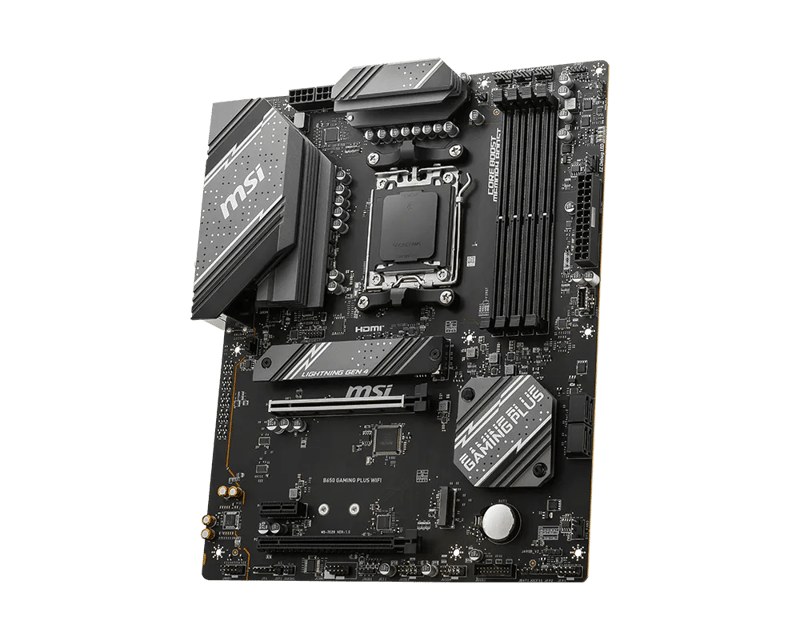

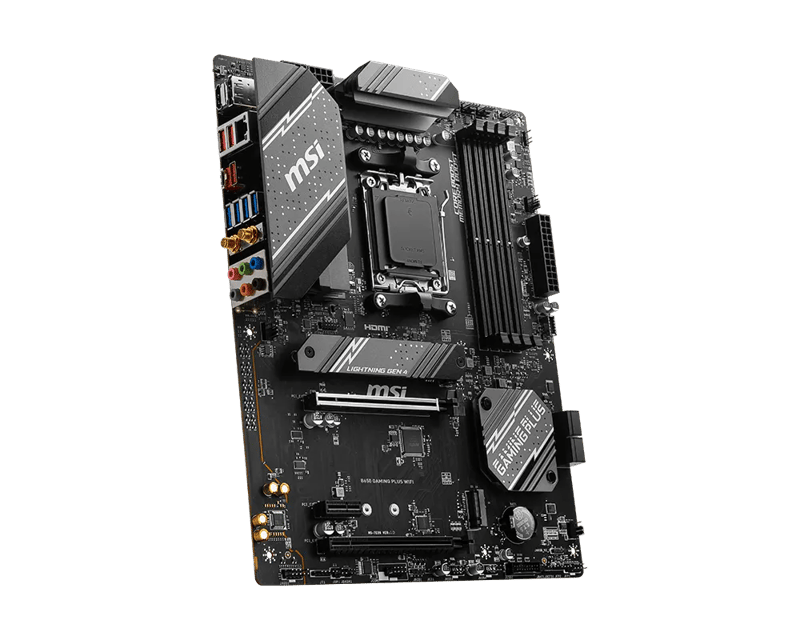

The MSI B650 GAMING PLUS WIFI arrives in a 243.84 × 304.8mm ATX frame, aimed at builders who want a complete AM5 platform without stepping up to flagship chipsets. It runs the AMD B650 chipset on a multi-layer PCB with dual 8-pin CPU power connectors to split the load and steady voltage delivery.

Key Highlights:

• Three Generations of Ryzen: The AM5 socket accepts Ryzen 9000, 8000, and 7000 series processors, keeping a clear upgrade path open without a board swap.
• DDR5 Up to 256GB: Four DIMM slots run speeds reaching 7200+ MT/s (OC) with AMD EXPO, with maximum clocks scaling by module count and rank (1DPC 1R up to 7200+, 2DPC 2R up to 5400).
• Dual PCIe 4.0 x4 M.2: The primary slot connects to the CPU and accepts 22110 and 2280-length drives, while the second takes 2280 and 2260 drives for fast boot and app loads.
• Four SATA 6G Ports: RAID 0 and RAID 1 support across SATA and NVMe drives lets you build storage arrays for speed or redundancy.
• Realtek 2.5G Ethernet: An RTL8125BG controller delivers 2.5-gigabit wired networking for stable downloads and streaming.
• Wi-Fi 6E and Bluetooth 5.3: A pre-installed module in the M.2 Key-E slot supports the 6GHz band subject to each country's regulations, with MU-MIMO support.

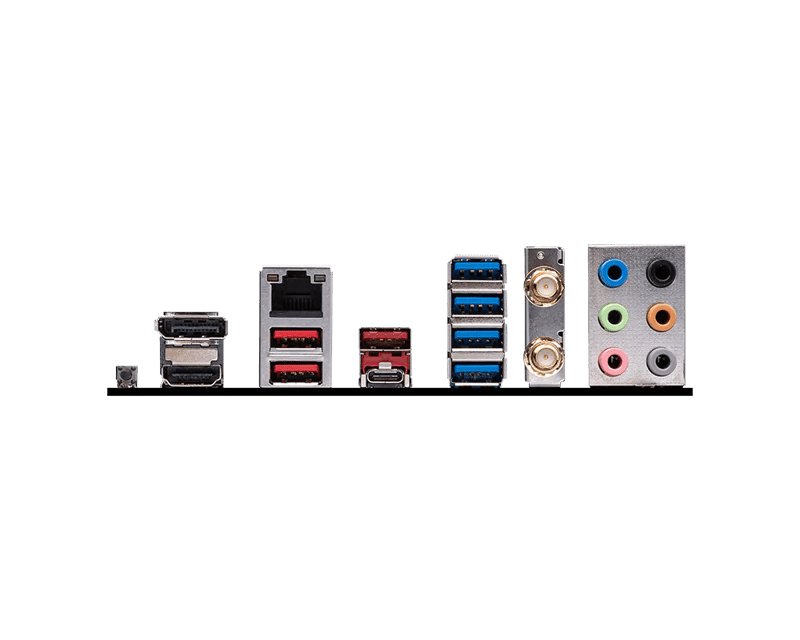

• USB 20Gbps Type-C: A rear-panel port joins three USB 10Gbps Type-A ports for fast external drives and peripherals.
• Dual Display Outputs: HDMI 2.1 at 4K 60Hz with HDR support and DisplayPort 1.4 at 4K 60Hz, active only with a CPU that has integrated graphics.
• Cooling and Monitoring: CPU and pump headers plus a VRM heatsink, four chassis fan connectors, and EZ Debug LEDs for boot troubleshooting.
• Realtek ALC897 Audio: A 7.1-channel high-definition codec covers daily use and meetings without a discrete sound card.
