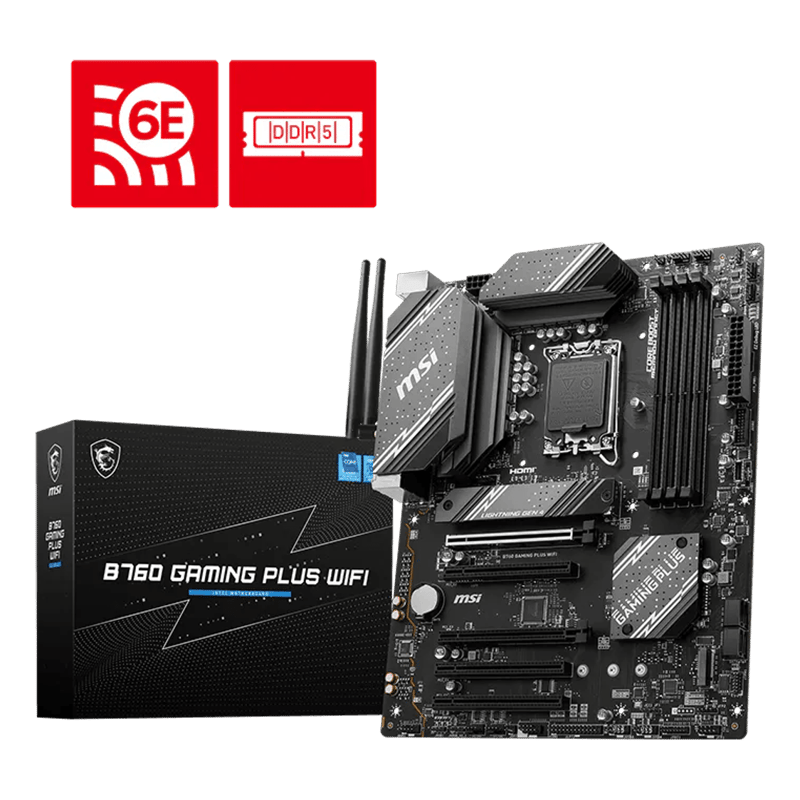

MSI B760 GAMING PLUS WIFI LGA 1700 ATX Motherboard DDR5 PCIe 4.0 Wi-Fi 6E
The MSI B760 GAMING PLUS WIFI ATX motherboard is built for Intel Core 14th, 13th, and 12th Gen processors on LGA 1700, delivering a solid foundation for gaming and everyday builds. It supports DDR5 memory up to 6800+ MT/s (OC) with a maximum capacity of 256GB across four DIMM slots, and includes a PCIe 4.0 x16 slot, two M.2 slots, four SATA ports, five PCIe expansion slots, Realtek 2.5G LAN, Wi-Fi 6E, and 7.1-channel audio with optical S/PDIF out.
Warranty, Exchange & Return Policy
Specifications
Details

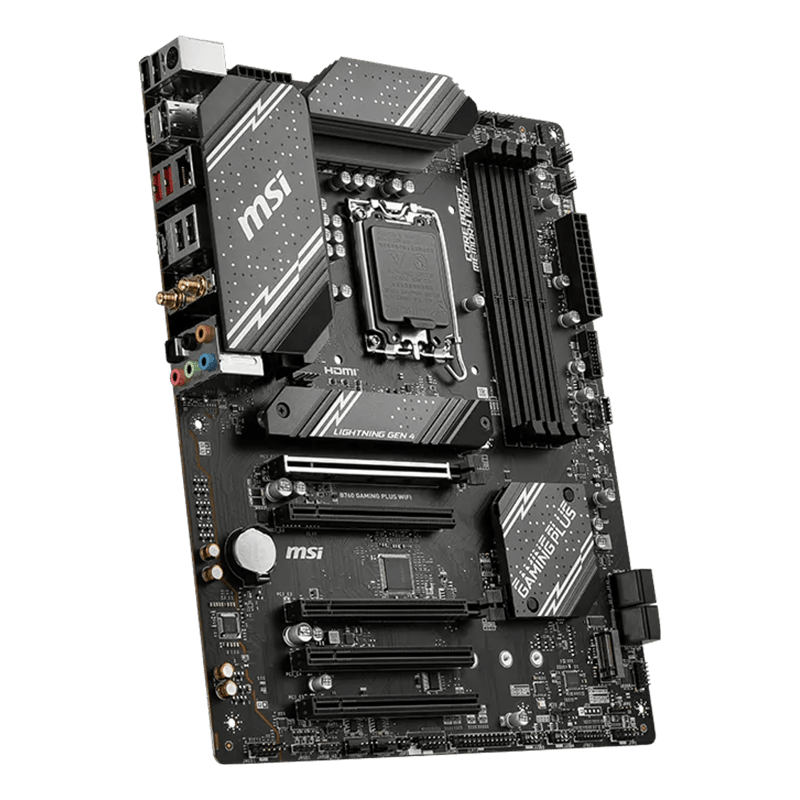

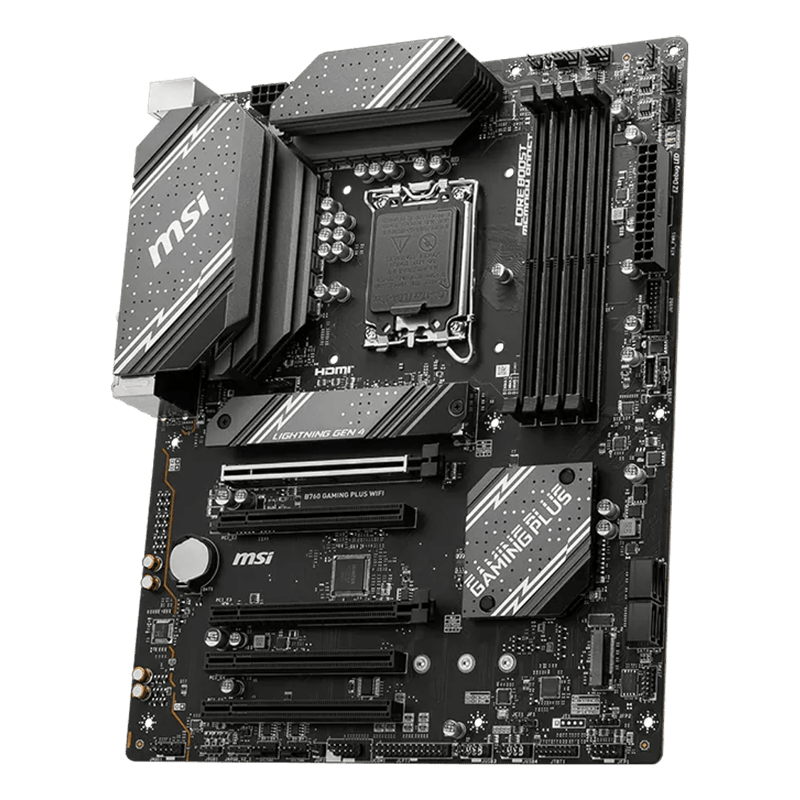

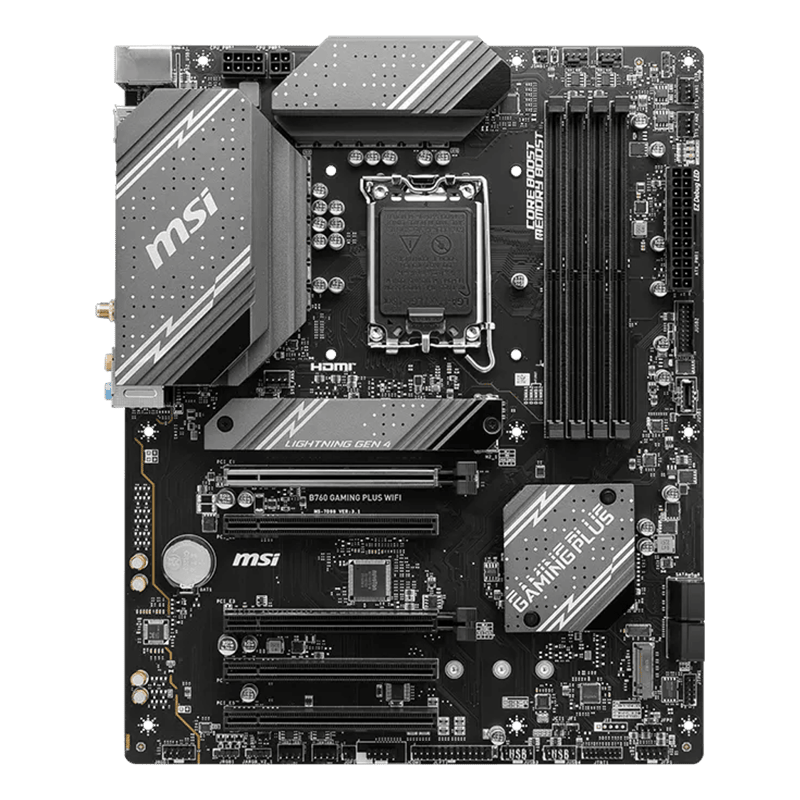

The MSI B760 GAMING PLUS WIFI ATX motherboard is the balanced foundation for a gaming or workstation build based on Intel Core 14th, 13th, and 12th Gen processors on LGA 1700. Part of the renowned GAMING PLUS series with a black design and distinctive accents, it offers full DDR5 support up to 6800+ MT/s (OC) across four DIMM slots with a maximum capacity of 256GB. It features extensive expansion including five PCIe slots, two M.2 slots, and four SATA ports, alongside Realtek 2.5G LAN and Wi-Fi 6E for a high-speed connectivity experience.
Key Highlights:
- LGA 1700 Socket with Intel B760 Chipset: Supports Intel Core 14th, 13th, and 12th Gen processors plus Pentium Gold and Celeron, with Intel Turbo Boost 2.0 and Turbo Boost Max 3.0 support.
- DDR5 Memory up to 6800+ MT/s (OC): Four DIMM slots with 256GB maximum capacity, Intel XMP 3.0 and dual-channel mode support, with speeds varying by rank configuration (1DPC 1R up to 6800+, 2DPC 2R up to 5600).
- PCIe 4.0 x16 Slot: At sufficient bandwidth for a modern graphics card, plus four additional PCIe 4.0/3.0 slots for extra expansion (network, audio, and storage cards).
- Dual PCIe 4.0 x4 M.2 Slots: At speeds up to 64Gbps, supporting 22110/2280/2260/2242 sizes, with one slot supporting SATA mode, reducing boot times and speeding up application loading.
- 4 × SATA 6Gb/s Ports: Provide extra storage capacity for hard drives and traditional SSDs, with RAID 0/1/5/10 support for SATA drives (note: SATA8 is disabled when an M.2 SATA SSD is installed in M.2_2).
- Realtek RTL8125BG 2.5G LAN: Delivers high-speed, low-latency wired networking for gaming, streaming, and file transfers.
- Wi-Fi 6E and Bluetooth 5.3: With a pre-installed module in the M.2 Key-E slot, supporting 2.4/5/6 GHz bands at speeds up to 2.4Gbps with MU-MIMO.
- Realtek ALC897 7.1-Channel Audio: Provides high-definition surround sound with optical S/PDIF out, suited to gaming and media.

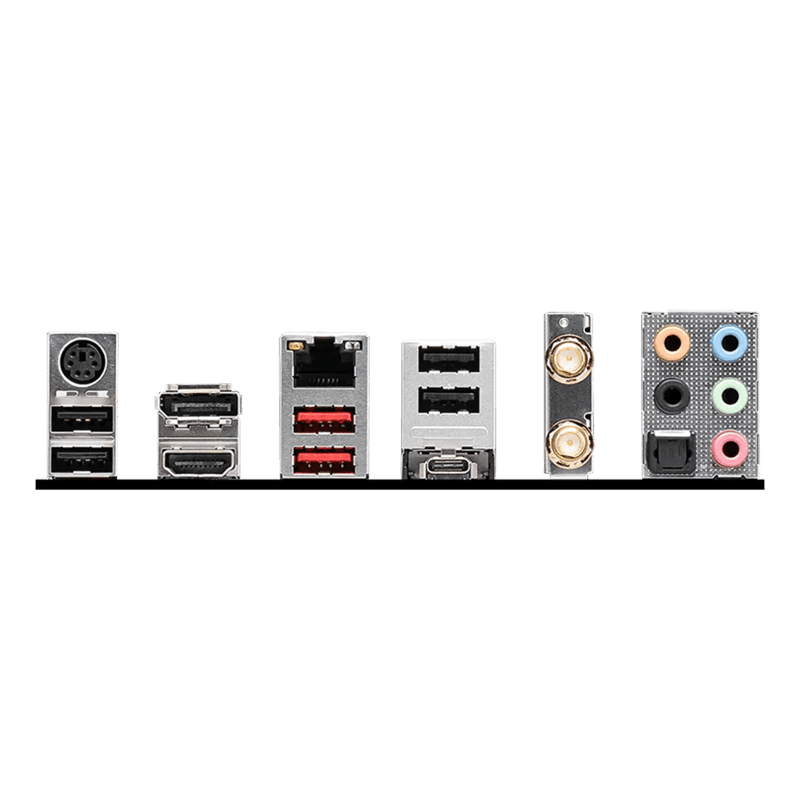

- Comprehensive USB Ports: Rear USB 3.2 Gen 2 10Gbps Type-C, two USB 3.2 Gen 2 10Gbps Type-A, four USB 2.0, plus a front USB 3.2 Gen 1 Type-C and two front USB 3.2 Gen 1 Type-A ports.
- EZ DIY Design and Comprehensive Cooling: 4 × EZ Debug LED diagnostics, multiple fan headers (CPU fan, pump fan, and five system fans), RGB and ARGB V2 support with lighting synchronization, a TPM 2.0 header, and COM and LPT ports for industrial and legacy applications.
