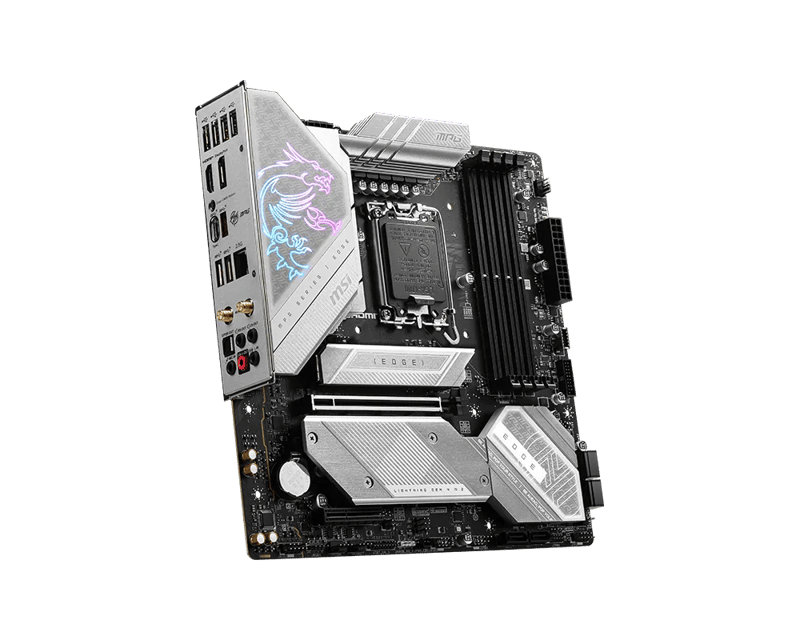

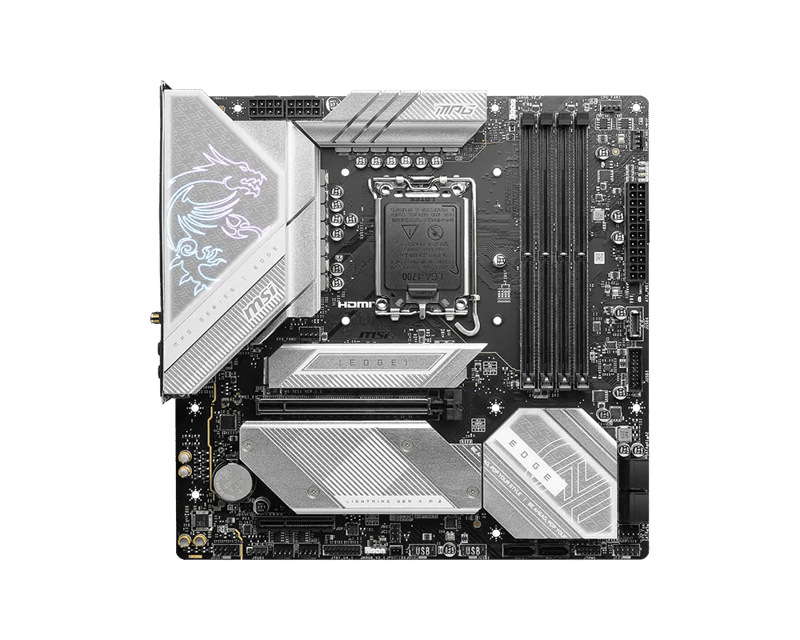

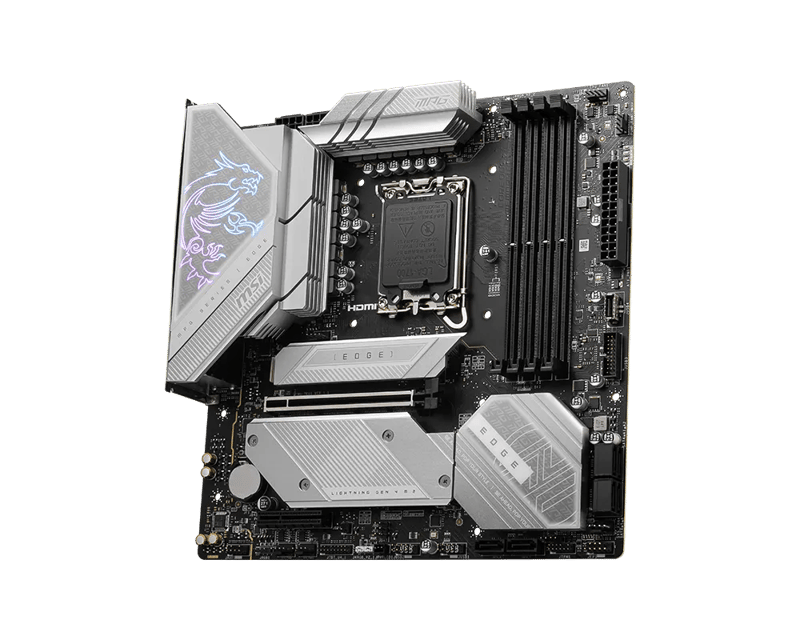

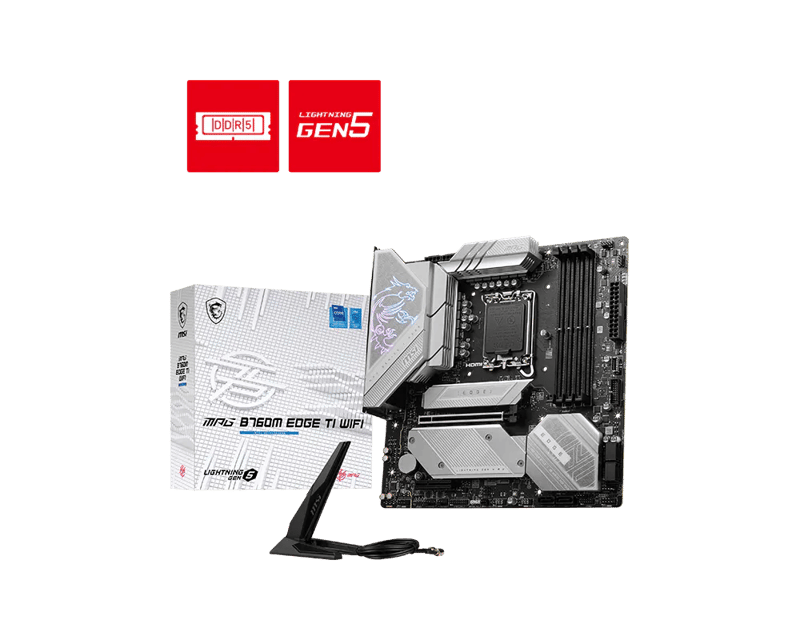

MSI MPG B760M EDGE TI WIFI LGA 1700 Micro-ATX Motherboard DDR5 PCIe 5.0 Wi-Fi 6E
The MSI MPG B760M EDGE TI WIFI Micro-ATX motherboard is built for Intel Core 14th, 13th, and 12th Gen processors on LGA 1700, delivering professional-grade performance in a compact form factor. It supports DDR5 memory up to 7800+ MT/s (OC) with a maximum capacity of 256GB across four DIMM slots, and includes a PCIe 5.0 x16 slot, three M.2 slots, six SATA ports, Realtek 2.5G LAN, Wi-Fi 6E, a rear USB 20Gbps Type-C port, and 7.1-channel audio with optical S/PDIF out.
Warranty, Exchange & Return Policy
Specifications
Details
The MSI MPG B760M EDGE TI WIFI Micro-ATX motherboard is the professional foundation for a compact gaming build based on Intel Core 14th, 13th, and 12th Gen processors on LGA 1700. Part of the flagship MPG series with an elegant white/silver design and customizable RGB lighting, it offers full DDR5 support up to 7800+ MT/s (OC) across four DIMM slots with a maximum capacity of 256GB, with Intel XMP and MSI Memory Boost support. It features a PCIe 5.0 x16 slot from the CPU at full bandwidth, three PCIe 4.0 x4 M.2 slots, and six SATA ports, making it a flexible platform for high-speed storage.
Key Highlights:
- LGA 1700 Socket with Intel B760 Chipset: Supports Intel Core 14th, 13th, and 12th Gen processors plus Pentium Gold and Celeron, with Intel Turbo Boost 2.0 and Turbo Boost Max 3.0 support.
- DDR5 Memory up to 7800+ MT/s (OC): Four DIMM slots with 256GB maximum capacity, Intel XMP and dual-channel mode support, with speeds varying by rank configuration (1DPC 1R up to 7800+, 2DPC 2R up to 5600).
- PCIe 5.0 x16 Slot: From the CPU at up to 128GB/s bandwidth, ready for next-generation graphics cards, plus a PCIe 3.0 x4 slot for expansion.
- Three PCIe 4.0 x4 M.2 Slots: At speeds up to 64Gbps, supporting 2280/2260/2242 sizes, with one slot supporting SATA mode, and integrated M.2 heatsinks to prevent thermal throttling.
- 6 × SATA 6Gb/s Ports: Provide extensive storage capacity for hard drives and traditional SSDs, with RAID 0/1/5/10 support for SATA drives.
- Realtek 2.5G LAN: Delivers high-speed, low-latency wired networking for gaming, streaming, and file transfers.
- Wi-Fi 6E and Bluetooth 5.3: With a pre-installed module in the M.2 Key-E slot, supporting 2.4/5/6 GHz bands at speeds up to 2.4Gbps with MU-MIMO.
- Realtek ALC897 7.1-Channel Audio: Provides high-performance surround sound with optical S/PDIF out, suited to gaming and media.

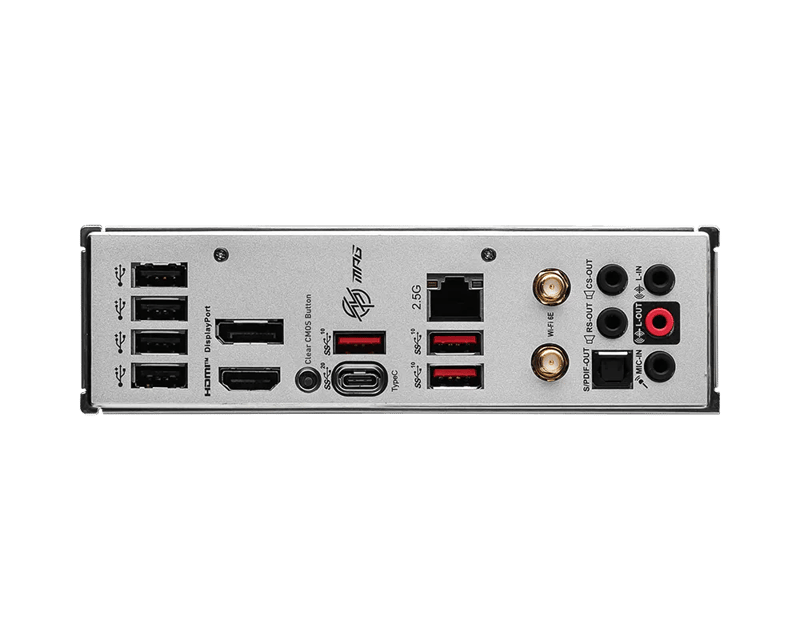

- Comprehensive USB Ports: Rear USB 20Gbps Type-C, three rear USB 10Gbps Type-A, a front USB 10Gbps Type-C, and four USB 2.0 ports, with optional USB4 (RTD3) support via an add-in card.
- EZ DIY Design and Comprehensive Cooling: 4 × EZ Debug LED diagnostics, Clear CMOS button, multiple fan headers (CPU fan, pump fan, and four system fans), VRM and M.2 heatsinks, RGB and ARGB V2 support with Mystic Light synchronization, and a TPM 2.0 header.
