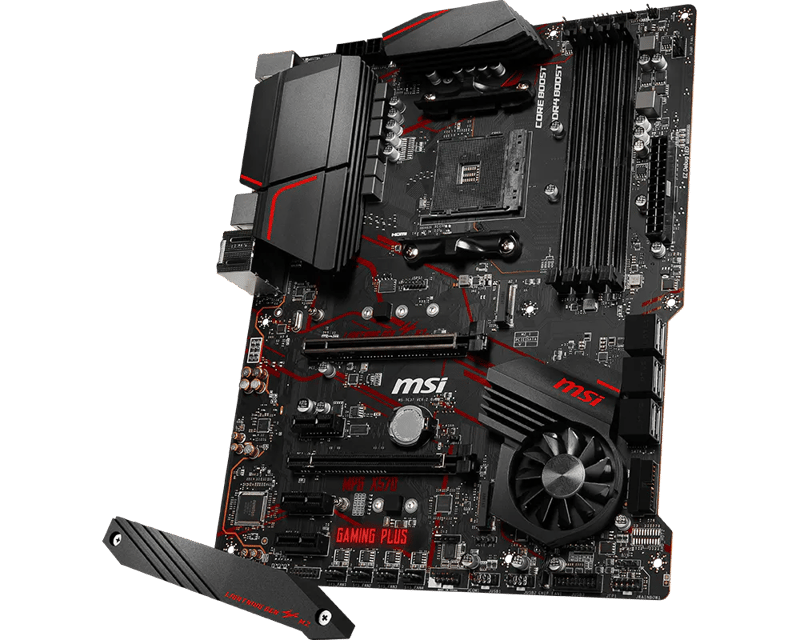

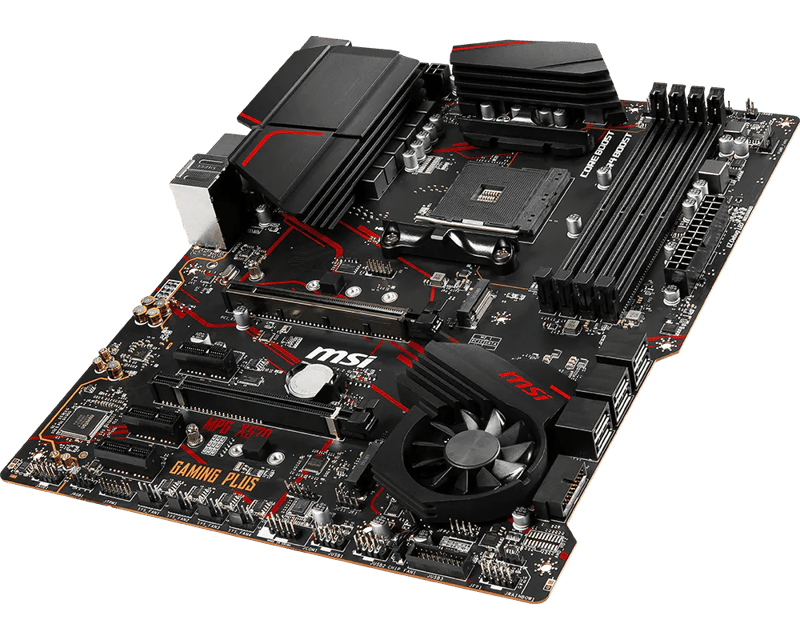

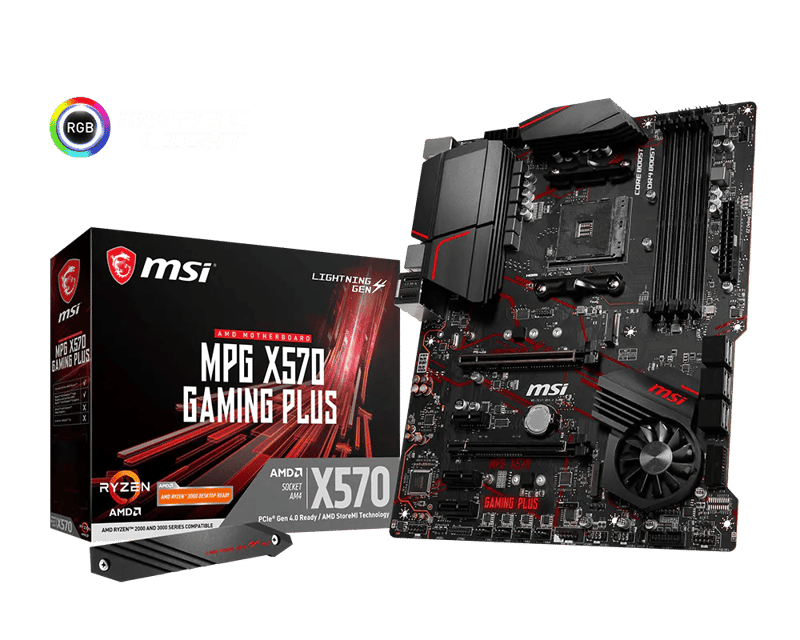

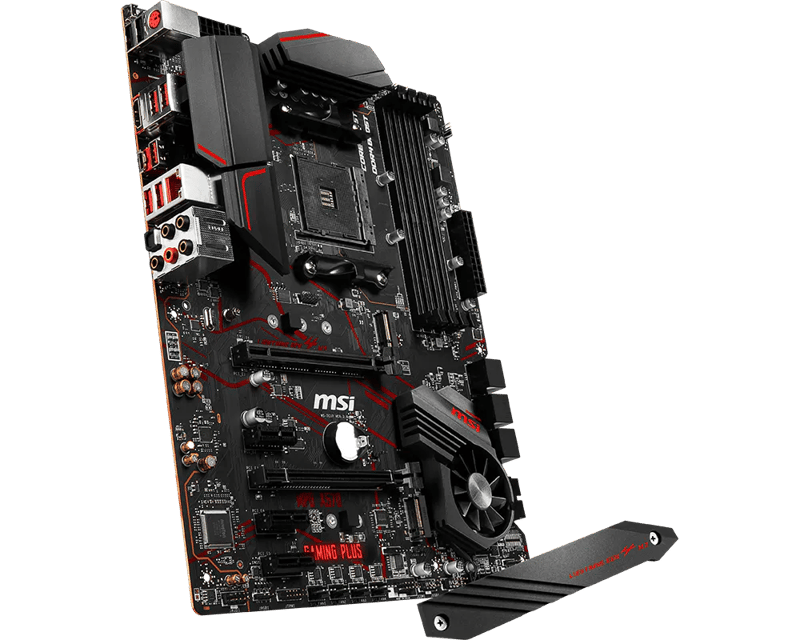

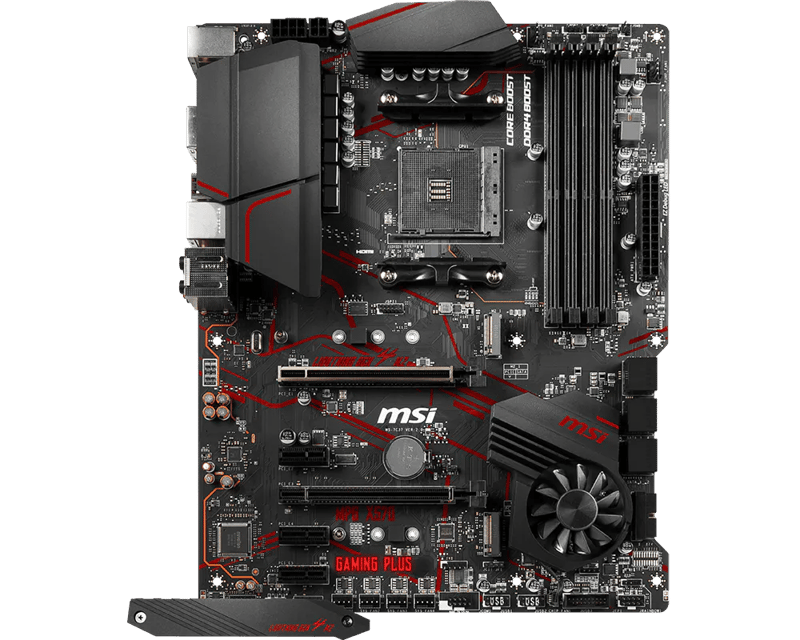

MSI MPG X570 GAMING PLUS AM4 ATX DDR4 Motherboard

The MSI MPG X570 GAMING PLUS arrives in a full ATX frame for builders who want an AM4 platform with PCIe 4.0 support without stepping up to pricier boards. It runs the AMD X570 chipset with a Frozr heatsink using a patented fan and double ball bearings, plus a fully digital power design with an extended PWM heatsink.

Key Highlights:

• Ryzen Processor Support: The AM4 socket accepts 2nd and 3rd Gen AMD Ryzen processors, plus Ryzen with Radeon Vega Graphics and Ryzen with Radeon Graphics.
• DDR4 Up to 4400 MT/s: Four dual-channel DIMM slots with DDR4 Boost technology improve signal stability, lifting in-game and application performance.
• Lightning Gen4 x4 M.2 Slot: Connected directly to the CPU with up to 64Gbps of bandwidth, speeding up boot and game loads.
• Turbo Gen3 x4 M.2 Slot: A second storage slot lets you run two NVMe drives simultaneously without sacrificing either.
• Six SATA 6Gb/s Ports: Wide room to connect SSDs and hard drives for storage or RAID arrays.
• Dual PCIe 4.0 x16 Slots: Support 2-Way AMD CrossFire configurations, with three additional PCIe 3.0 x1 slots for expansion cards.
• Realtek Gigabit Ethernet: An RTL8111H controller delivers a steady 1-gigabit wired connection for downloads and streaming.
• 8-Channel Audio Boost 4: Isolated audio with a high-quality processor for clearer in-game positioning, plus optical S/PDIF out on the rear panel.
• M.2 Shield FROZR: A thermal accessory protects M.2 SSDs from throttling and keeps them running at top speeds.
• Flash BIOS Button: Updates BIOS from a USB key in seconds without a CPU, memory, or graphics card installed.
