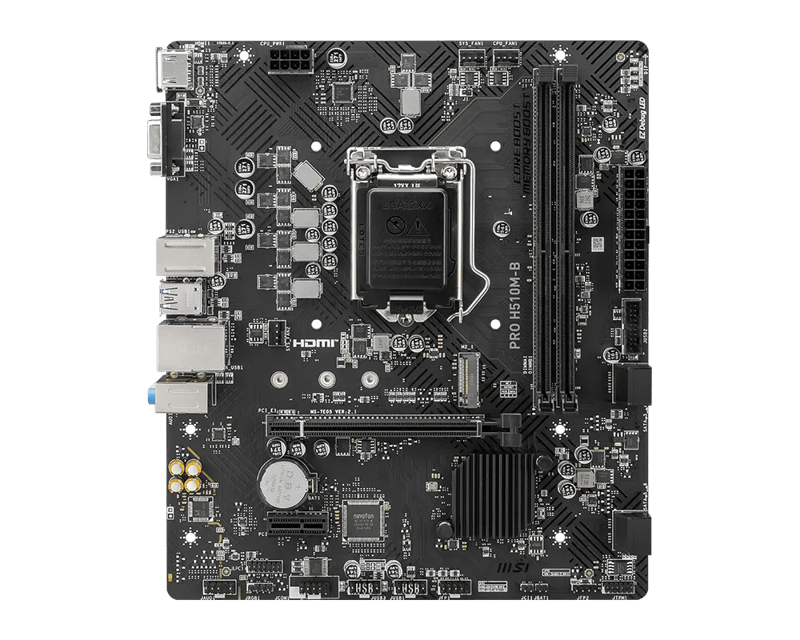

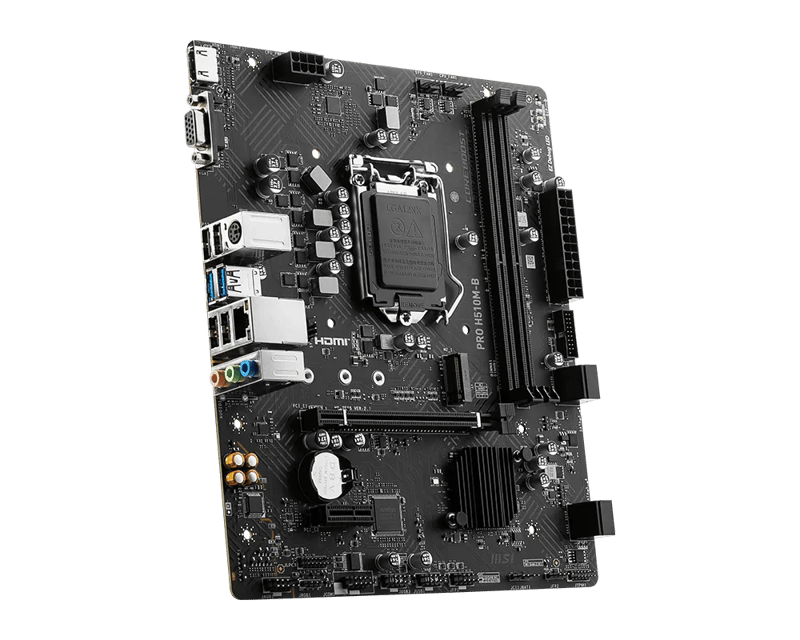

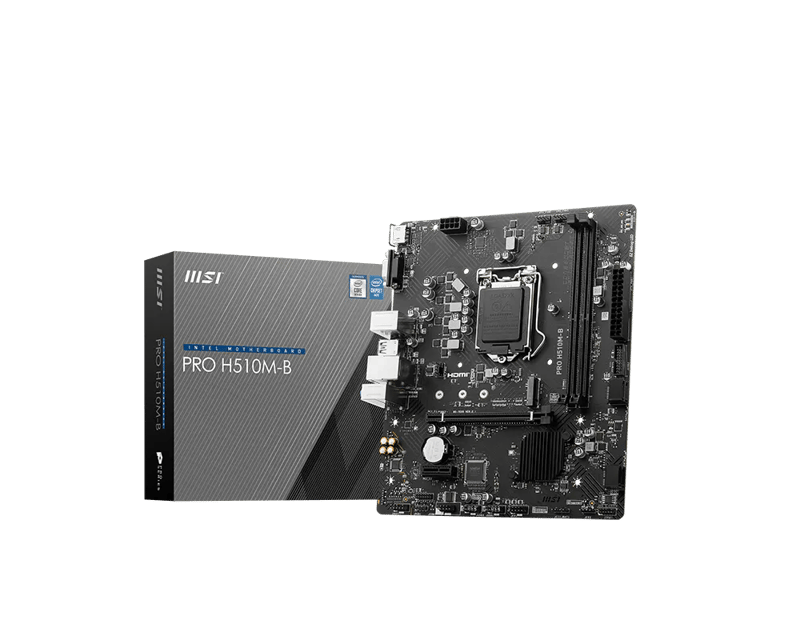

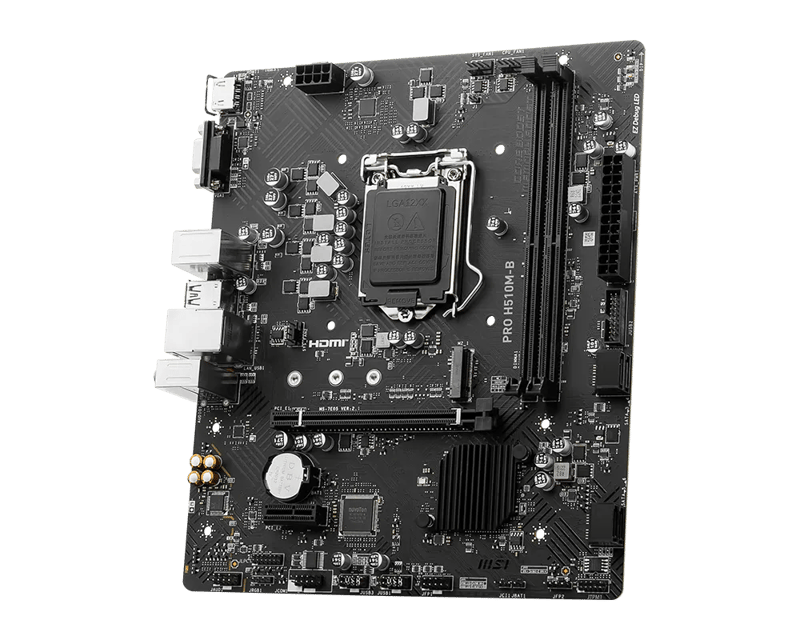

MSI PRO H510M-B LGA 1200 Micro-ATX Motherboard

MSI built the PRO H510M-B for the quiet, reliable office build that just has to work every day. It runs the Intel H470 chipset on LGA 1200, and its 202×236mm Micro-ATX footprint fits compact cases without stripping away the core connectors.

Key Highlights:

• Processor Support: LGA 1200 socket accepts 10th Gen Intel Core, Pentium Gold, and Celeron chips, so you can match the CPU to the budget.
• Dual-Channel DDR4: Two DIMM slots hold up to 64GB at speeds reaching 2933MHz, with XMP support for rated profiles.
• Flexible M.2 Storage: One M.2 slot runs PCIe 3.0 x4 or SATA mode and accepts 2280, 2260, and 2242 drives.
• Four SATA 6G Ports: Room to add SSDs or hard drives for storage and backup without an expansion card.
• Gigabit Wired Networking: A Realtek 8111H controller keeps the connection steady for calls, streaming, and downloads.
• ALC897 7.1-Channel Audio: Realtek ALC897 codec handles daily audio and meetings without a discrete sound card.

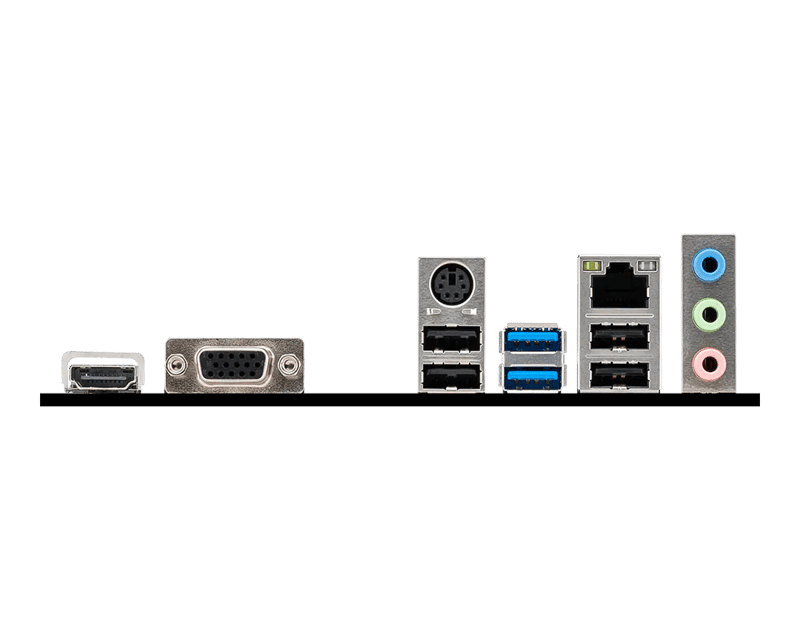

• Integrated Display Outputs: HDMI 1.4 up to 4K at 30Hz plus VGA, active only when the installed CPU includes integrated graphics.
• PCIe Expansion: A PCIe 3.0 x16 slot from the CPU and a PCIe 3.0 x1 slot from the chipset cover graphics and add-in cards.
• Onboard Diagnostics: Four EZ Debug LEDs speed up boot-troubleshooting during assembly.
• TPM 2.0 Header: An onboard TPM pin header enables the security module Windows 11 expects.
