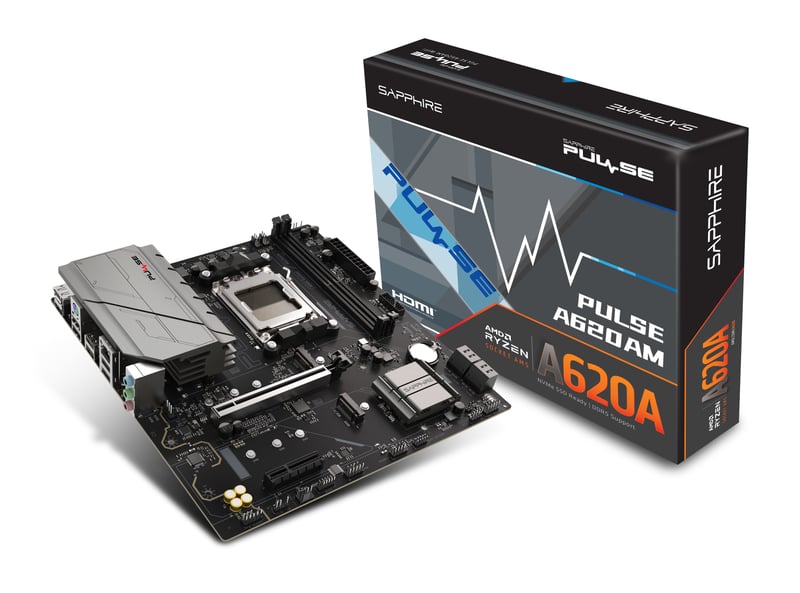

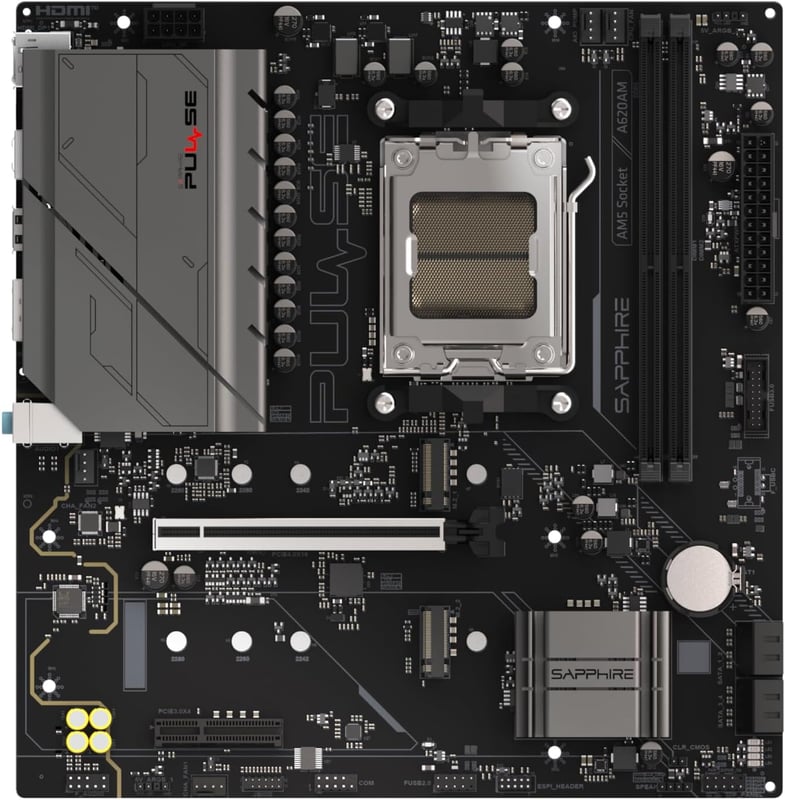

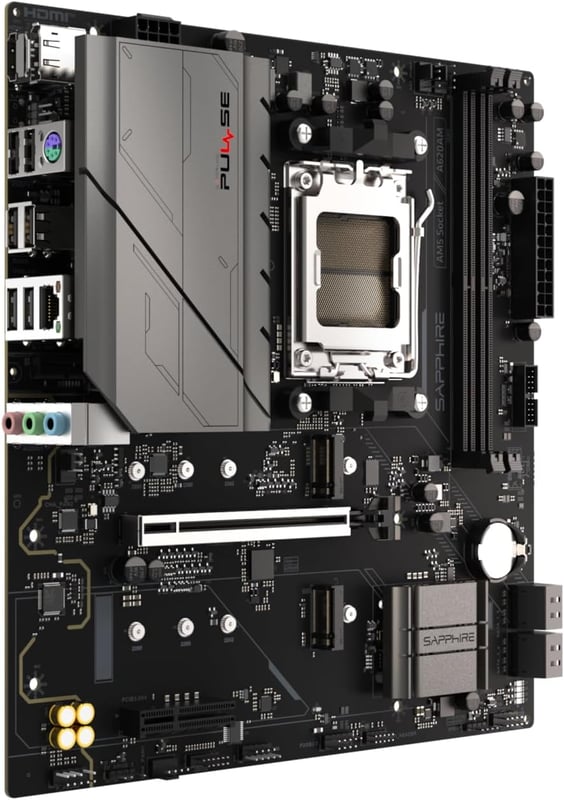

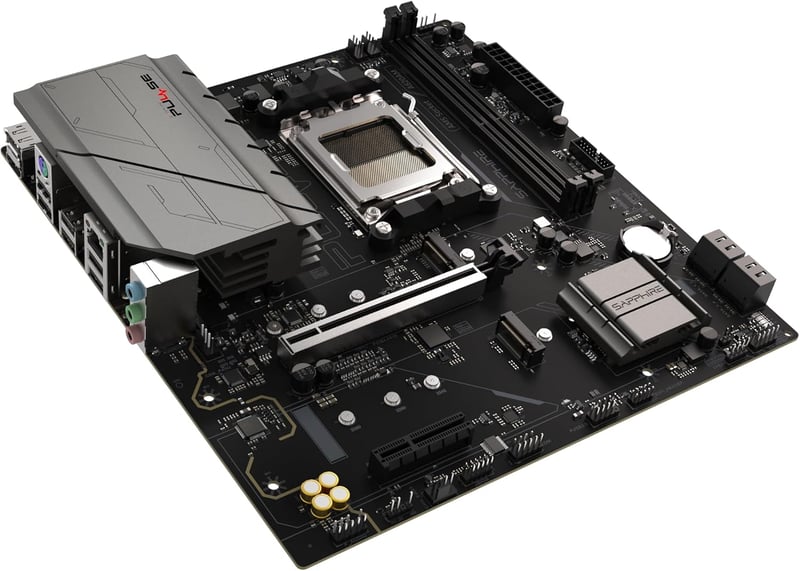

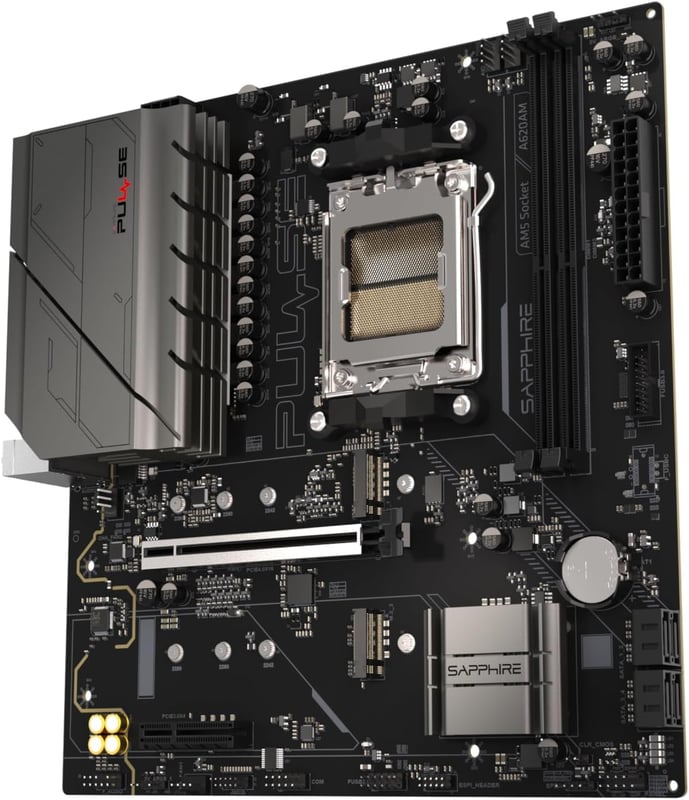

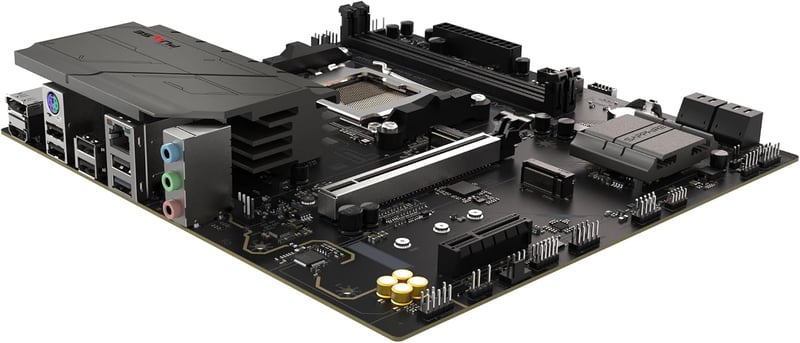

Sapphire PULSE A620AM AM5 Micro-ATX DDR5 Motherboard

The Sapphire PULSE A620AM arrives in a 244 × 235mm Micro-ATX frame, aimed at builders entering the AM5 platform at the lowest cost without sacrificing power delivery quality. It runs the AMD A620A chipset with a 6+2+1 phase power design rated at 55A per phase, backed by dedicated heatsinks for the VRM, M.2 slots, and PCH.

Key Highlights:

• Three Generations of Ryzen: The AM5 socket accepts Ryzen 9000, 8000, and 7000 series processors, keeping a clear upgrade path open for later.
• 6+2+1 Phase Power at 55A: A robust VRM design with dedicated heatsinks holds voltage steady for the CPU through extended workloads.
• DDR5 Up to 64GB: Two dual-channel DIMM slots support speeds reaching 7600 MT/s (OC), speeding up demanding applications and leaving room for memory upgrades.
• PCIe 4.0 M.2 Slot: The primary slot connects to the CPU for fast data transfer, joined by a second PCIe 3.0 M.2 slot for additional storage.
• Four SATA Ports: Room to connect SSDs and hard drives for storage or backup.
• PCIe 4.0 x16 Slot: Connected to the CPU to drive modern graphics cards, with an additional PCIe 3.0 x4 slot for expansion cards.
• Realtek Gigabit Ethernet: An RTL8111K controller delivers a steady wired connection for daily use and downloads.
• Dual Display Outputs: DisplayPort and HDMI ports, active only with a CPU that has integrated graphics.
• Realtek ALC897 Audio: A 5.1-channel high-definition codec with three rear jacks covers speakers and microphone needs.
• Onboard Diagnostics: Four color-coded Debug LEDs (DRAM yellow, CPU red, GPU white, Boot green) speed up troubleshooting during assembly.
