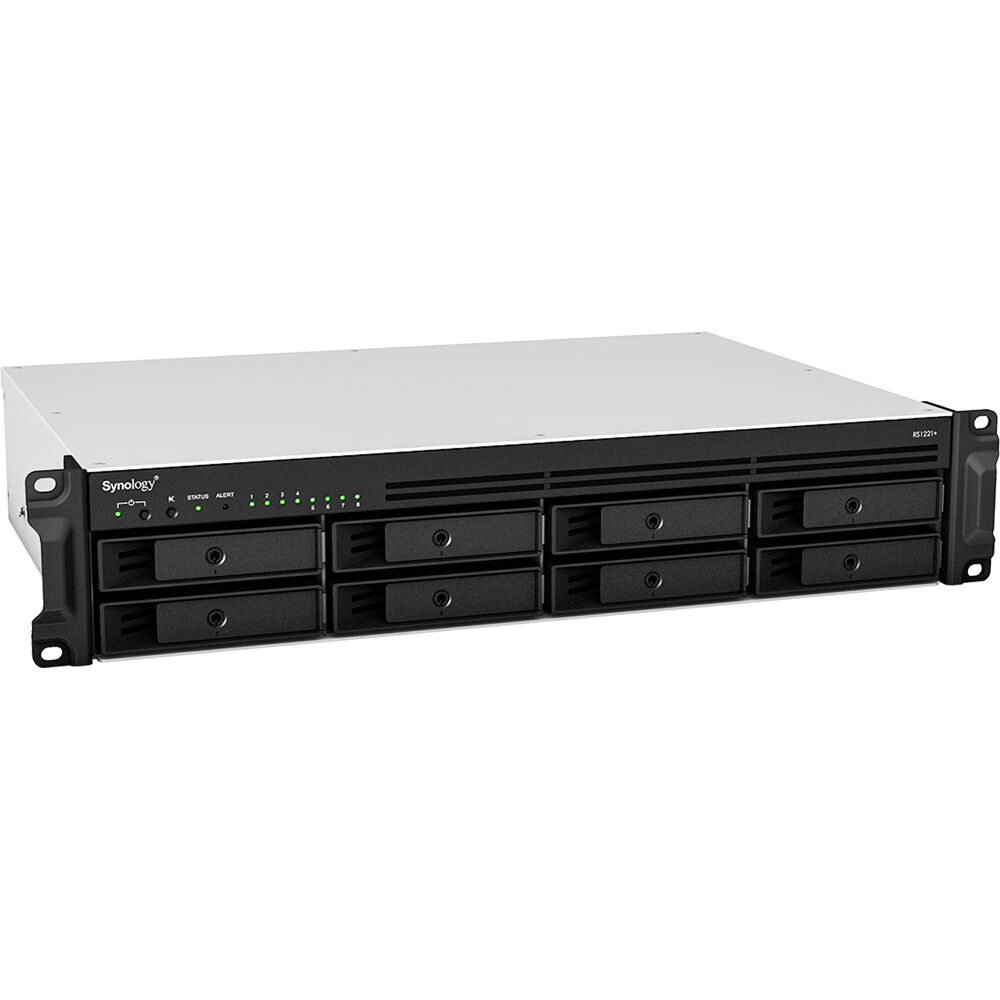

Synology RackStation RS1221+ 8-Bay NAS AMD Ryzen V1500B 4GB DDR4 ECC 4x 1GbE
Model: Synology RackStation RS1221+ Form Factor: 2U Rackmount CPU: AMD Ryzen V1500B, Quad-Core 2.2 GHz Hardware Encryption Engine: Yes (AES-NI) Memory: 4 GB DDR4 ECC SODIMM (expandable up to 32 GB) Memory Slots: 2 x DDR4 ECC SODIMM Drive Bays: 8 x 3.5"/2.5" SATA HDD/SSD Hot Swappable Drives: Yes Maximum Drive Bays with Expansion: 12 (with 1 x RX418 expansion unit) LAN Ports: 4 x RJ-45 1GbE (Link Aggregation / Failover support) PCIe Expansion: 1 x PCIe 3.0 x8 slot (x4 link) for optional 10/25GbE NICs or M.2 NVMe SSD adapter cards USB Ports: 2 x USB 3.2 Gen 1 Expansion Ports: 1 x eSATA (for RX418) File System: Internal: Btrfs, EXT4; External: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT (exFAT Access purchased separately) RAID Support: Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 Maximum Internal Raw Capacity: 128 TB (16 TB drive x 8) Maximum Capacity with Expansion: 192 TB (with 1 x RX418) Sequential Read/Write Performance: Up to 2,315 MB/s read, 1,147 MB/s write iSCSI Random Read IOPS: Over 100,000 SSD Cache: Supported via SATA SSDs or M.2 NVMe SSDs using optional adapter cards Cooling: 2 x 80 mm fans with Full-Speed, Cool, and Quiet modes Power Consumption: 49.89 W (access), 22.64 W (HDD hibernation) Dimensions (H x W x D): 88 mm x 482 mm x 306.6 mm Weight: 6.9 kg Operating Temperature: 0°C to 35°C (32°F to 95°F) Operating System: Synology DiskStation Manager (DSM)
