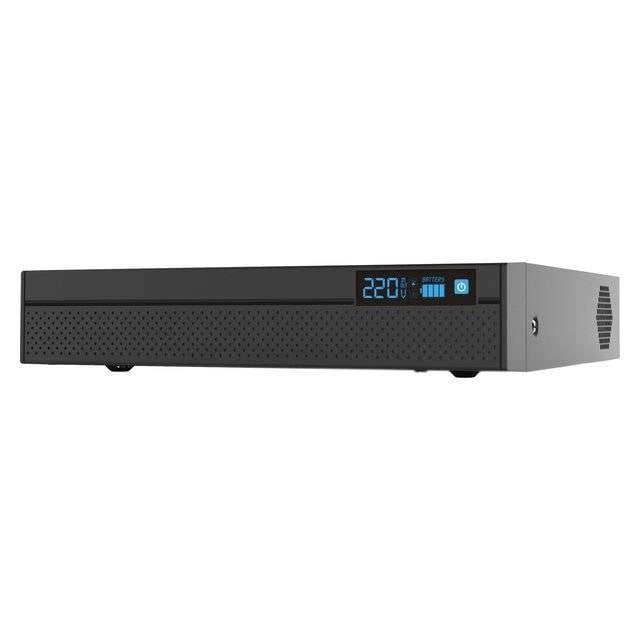

Tiger TDC-ECO-100 100W 75Wh LiFePO4 Multi-Output Mini DC UPS

The Tiger TDC-ECO-100 Mini DC UPS is an enterprise-grade power continuity solution built to eliminate internet resets and hardware drops during grid fluctuations. Engineered with a next-generation LiFePO4 battery core and an extensive multi-voltage output layout, it delivers clean, dedicated direct-current power to communication terminals, routers, and IP cameras.

Key Highlights:

• Heavy-Duty 100W Output: Sustains an aggregate power delivery of up to 100W, easily operating multi-band Wi-Fi routers, optical network terminals (ONTs), and camera arrays simultaneously.
• High-Endurance 75Wh LiFePO4 Battery: Advanced Lithium Iron Phosphate chemistry offers superior thermal safety, deep discharge tolerance, and an exceptionally long multi-year cycle life.
• Digital Status Display: Front-panel digital screen delivers real-time telemetry, indicating AC input voltage levels, battery health indicators, and operational status.
• 8 Dedicated 12V Barrel Outputs: Provides eight 12V DC ports supporting up to 3A per individual connector (8A combined max), engineered for CCTV security distribution.
• Switchable 9V / 12V Auxiliary DC Port: Dedicated selectable output allows direct matching to 9V legacy modems or standard 12V network gear without extra voltage converters.
• Dual RJ45 Ethernet PoE Interfaces: Two Power over Ethernet ports with switchable 15V / 24V modes streamline cabling by running power and data directly to outdoor antennas and CPE devices.
• Zero-Millisecond Transfer Speed: True DC buffer topology prevents brownout resetting, maintaining uninterrupted data flow and server access during utility cuts.
• Multi-Layer Hardware Protection: Comprehensive onboard circuit protection safeguards connected electronics against overloads, over-voltage spikes, thermal buildup, and short circuits.
• Optimized Thermal Chassis: Desktop enclosure with perforated side venting ensures reliable passive heat dissipation for whisper-quiet 24/7 continuous operation.

Key Highlights:

• Robust 100W Output Capacity: Supplies up to 100W of stable direct-current power, easily handling high-draw multi-band routers, outdoor antennas, and mini CCTV rigs simultaneously.
• 24000mAh Lithium Energy Core: High-density internal battery bank delivers substantial reserve runtimes to keep communication links online through prolonged blackouts.
• Versatile DC Output Array: Features dedicated DC barrel jacks supporting switchable 9V and 12V outputs to match industry-standard networking hardware specs.
• Integrated Passive PoE Interface: Selectable 15V / 24V Power over Ethernet port simplifies installations by powering wireless subscriber antennas and IP cameras over standard LAN cables.
• Auxiliary 5V USB Port: Convenient front USB output powers mobile accessories, IoT devices, or emergency charging needs without requiring extra adapters.
• Zero-Millisecond Switchover: Direct DC-to-DC architecture guarantees true uninterruptible operation without the reset lags typical of traditional AC inverters.
• Multi-Stage Protection Circuitry: Advanced Battery Management System (BMS) prevents overcharging, deep discharge, thermal runaway, and short-circuit faults.
• Intuitive LED Level Gauges: Clear front-panel status lights provide immediate visual feedback on remaining battery percentage and operational status.
• Compact Passive-Cooling Enclosure: Engineered for continuous 24/7 operation with quiet, fanless heat dissipation and a small footprint that fits tidily on network shelves.
