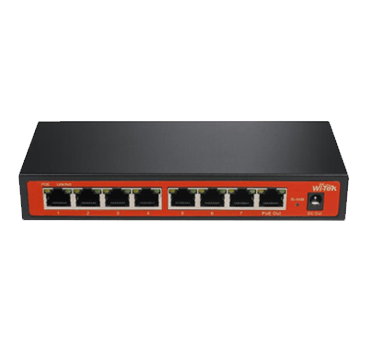

Wi-Tek 8-Port 24V Reverse PoE Fast Ethernet Switch WI-PS108R

The Wi-Tek WI-PS108R is a specialized 8-port Fast Ethernet switch designed specifically for FTTx (Fiber to the Building/Wireless) deployments. It features an intelligent reverse PoE technology that allows the device to be powered directly from the customer end using a compatible PoE injector or router, eliminating the need for local power outlets at the building top. This solution significantly reduces deployment costs for ISPs by removing the requirement for UPS systems or recurring power payments to customers. The switch provides 8 RJ45 ports with auto-negotiation, where ports 1-7 function as PoE inputs and port 8 acts as a PoE output for powering additional devices like ONUs or APs. Its compact, fanless design ensures silent operation and easy installation in various residential or commercial environments. The unit supports 24V passive PoE compliant power sourcing equipment (PSE) and powered devices (PDs). With a 1K MAC address table and advanced VLAN support, it delivers stable and efficient network traffic management. The device is built for reliability, offering a plug-and-play experience that requires no complex configuration.

Specifications

• Interface: 8 RJ45 10/100M ports
• PoE Input Ports: Port 1-7
• PoE Output Port: Port 8
• Power Output: DC 5V/12V (Max 2A)
• PoE Compliance: 24V Passive PoE
• MAC Address Table: 1K
• Dimensions: 175mm x 75mm x 30mm
• Fan: Fanless Design
